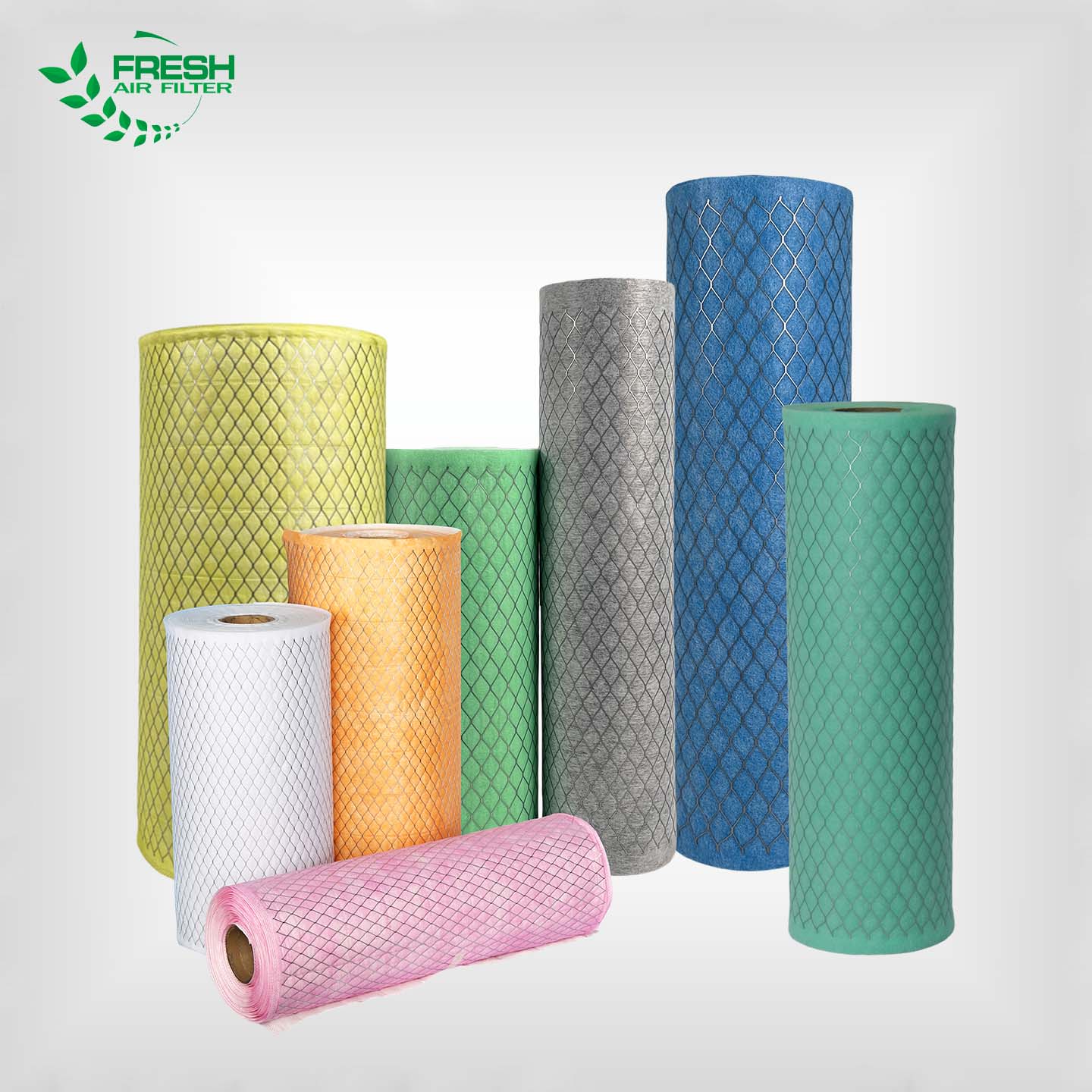

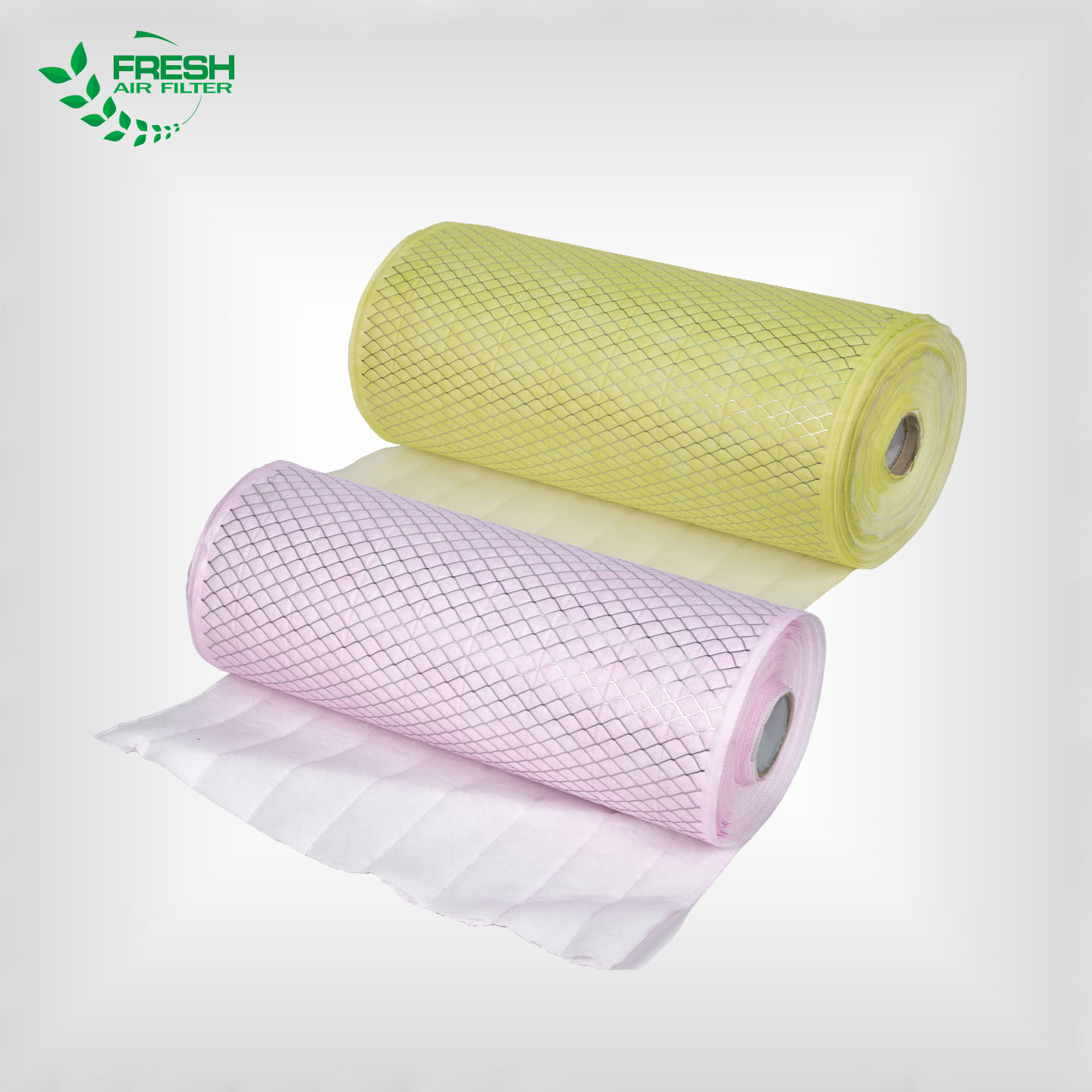

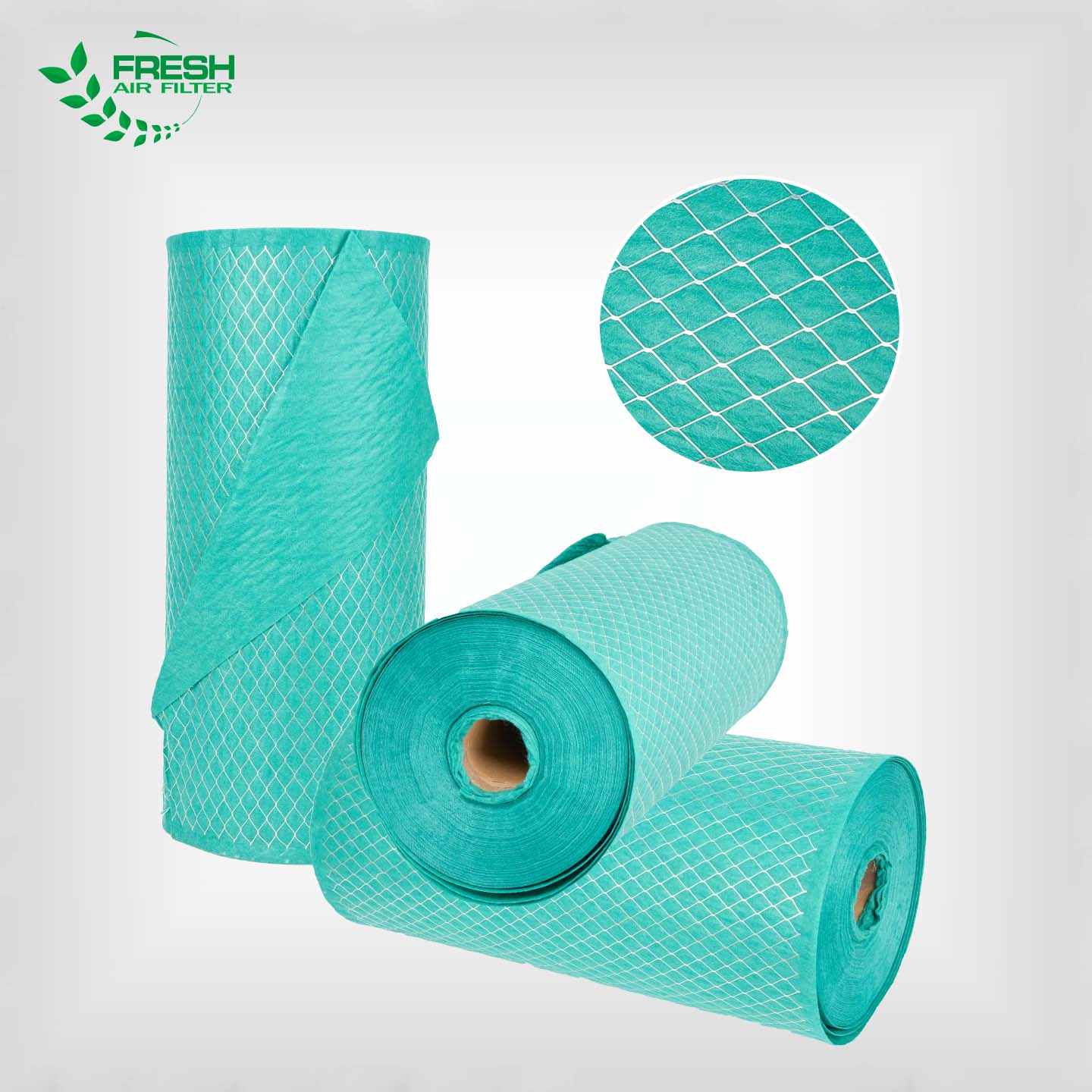

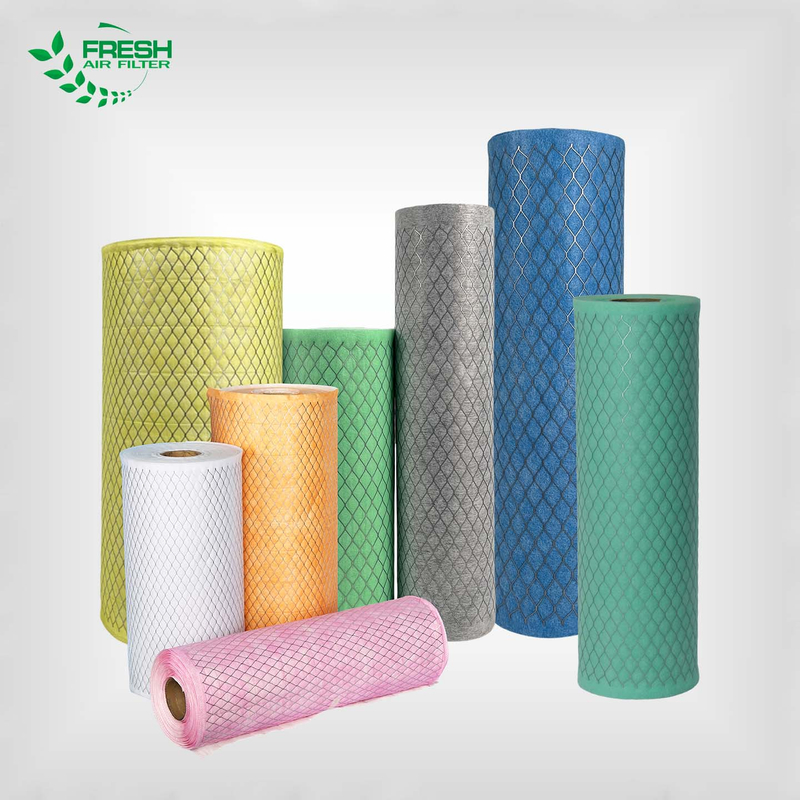

Laminated Mesh Pre‑filter Roll for Pleated Air Panel Filter

Material: Non-woven Fabric / Synthetic Fiber / PP

Laminated Metal Mesh: Galvanized wire mesh / Stainless steel wire mesh

Appearance: Yellow / Orange / Blue / White / Green / Pink / Grey / Black
Sales Models: Wholesale
Min Order Quantity: 300 Sqm

Features：

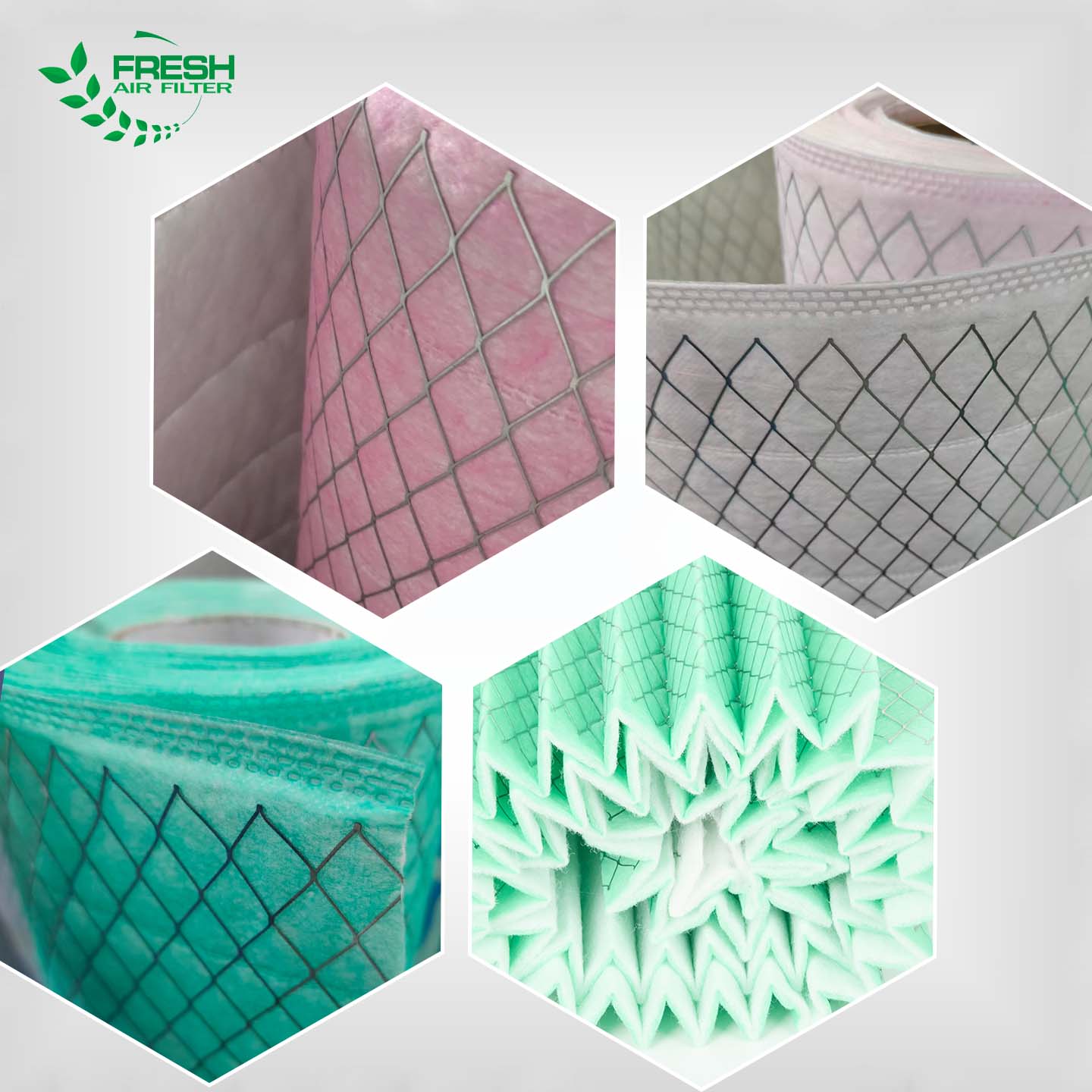

The air outlet surface is compounded with a layer of galvanized metal mesh,which no deformation when used under large air flow environment.

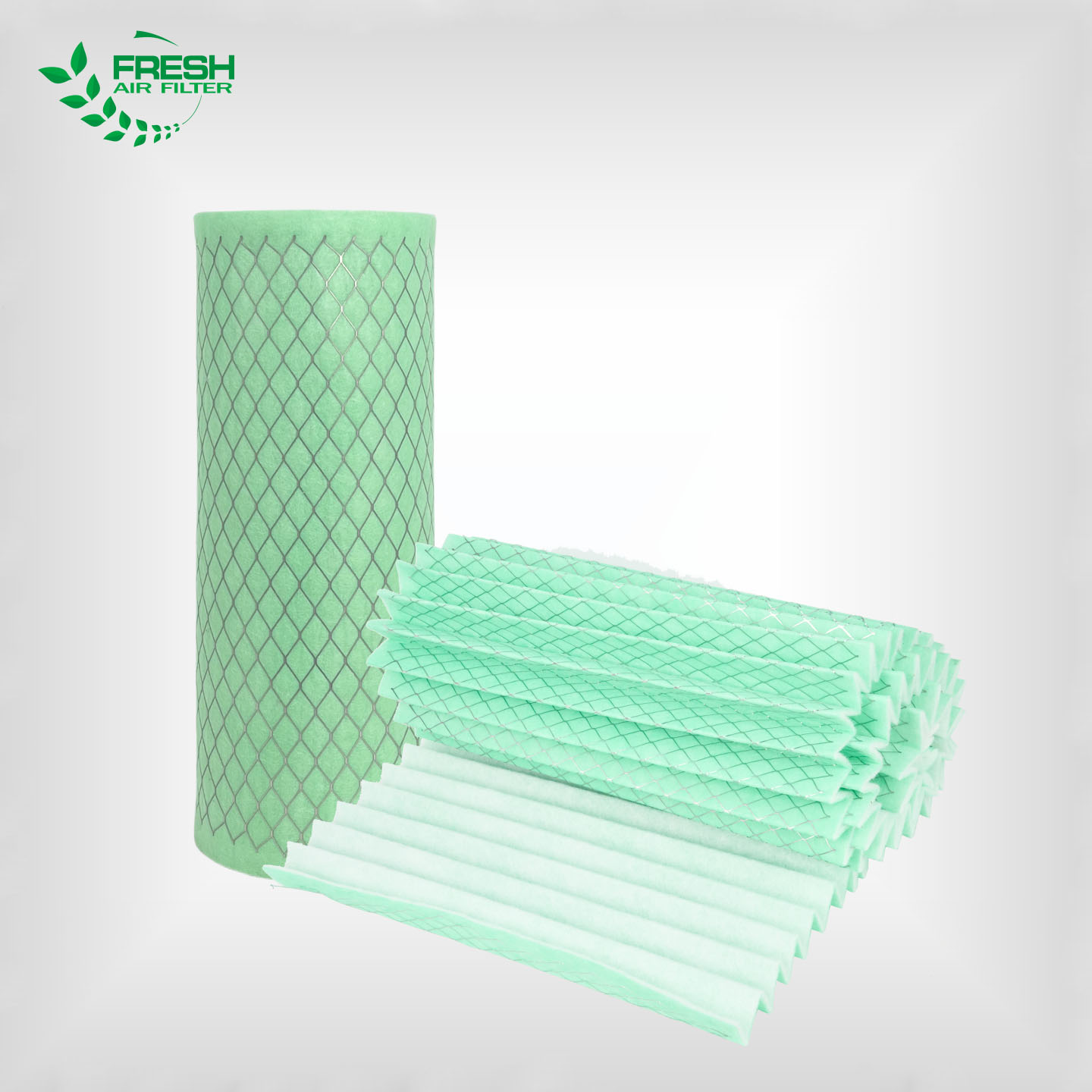

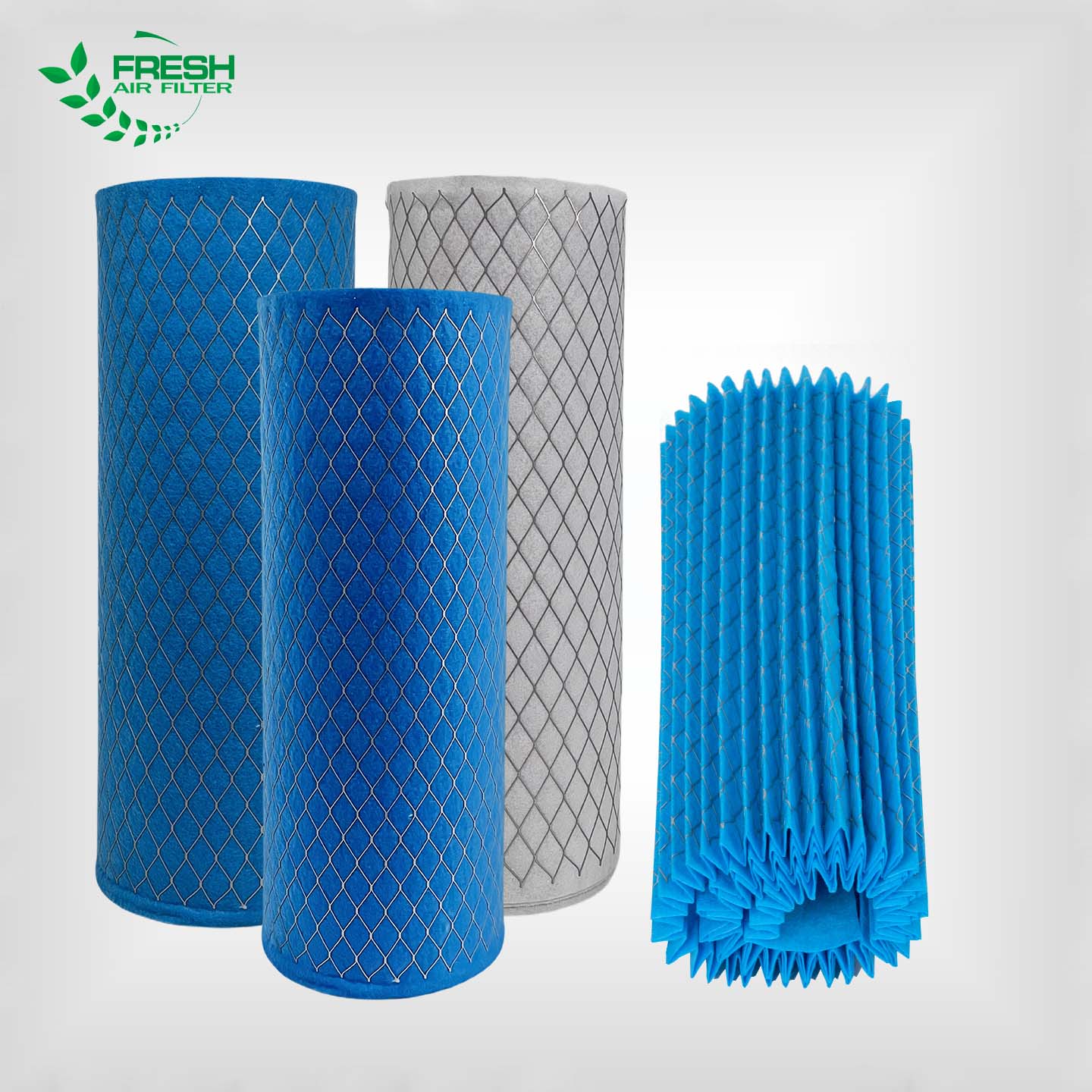

Good shaping effect after folding, and use to make panel pre-filter.

Application：

Special raw materials for paper frame filter, can also be used for plate filter with coarse and medium efficiency.

Electrostatic Pleated Material
Model	Filtration Class	EFF. (%)	Filter Object	Thickness (mm)	Weight (g/㎡)	I.N.P (Pa)	F.N.P (Pa)	Rated Wind Speed (m/s)	Material
FRS-LFM-?	G3	85	≥5μm	2			250		Electrostatic needle punched filter media+ Galvanized mesh
FRS-LFM-?	G4	90	≥5μm	2			250
FRS-LFM-200	M5	45	≥1μm	2	200±10	3	300	1
FRS-LFM-210	M6	65	≥1μm	2	210±10	4	300	1
FRS-LFM-230	F7	85	≥1μm	2	230±10	6	300	1
FRS-LFM-260	F8	95	≥1μm	2	260±10	7	350	1
FRS-LFM-280	F9	98	≥1μm	2	280±10	9	350	1
