Industrial processes operating in extreme thermal environments face a severe operational vulnerability. Temperatures ranging from 500°F to over 1,000°F easily cause catastrophic failure in standard filtration media. This failure leads to immediate contamination, severe equipment damage, and serious safety hazards. Facility engineers and procurement teams must specify filtration systems that maintain rigid structural integrity under continuous thermal stress. They require exact particulate capture efficiency without risking sudden pressure drops or hazardous off-gassing.
Understanding how these materials survive extreme heat is essential for preventing system failure. We examine the material science behind thermal stability, detailing the specific mechanisms that prevent melting, shrinkage, and combustion. You will find a technical evaluation framework for selecting the correct media for high-heat industrial applications. This ensures your facility maintains strict environmental control while protecting downstream equipment from particulate damage.
Material Resilience: Glass fiber high temperature media maintains up to 50% of its tensile strength at 700°F and resists melting up to 1,555°F–2,075°F, depending on the specific glass composition (e.g., E-glass vs. specialized high-silica glass).
Dimensional Integrity: Unlike synthetic media that shrinks, warps, or melts when exposed to heat, glass fiber maintains its exact physical shape and structure during rapid thermal cycling.
Micro-Structural Insulation: The media relies on microscopic trapped air pockets between non-combustible fibers, creating a barrier with exceptionally low thermal conductivity that prevents heat transfer across the filter plane.
Application Specificity: Selecting between a high temperature HEPA filter and a glass fiber primary panel filter depends strictly on the intersection of required capture efficiency (sub-micron vs. coarse particulate) and the maximum continuous operating temperature.
Implementation Reality: Buyers must account for "binder burn-off"—a standard operational phase where organic binders vaporize during the initial heat cycle—requiring specific commissioning protocols to prevent cleanroom or process contamination.
Industrial-grade glass fibers consist of specific inorganic compounds. Manufacturers blend silica, alumina, and calcium oxide to create a highly resilient matrix. This specific chemical composition dictates the material's thermal endurance. Engineers must evaluate continuous operating temperatures versus absolute failure points. Standard glass media easily handles continuous operating temperatures up to 1,000°F (540°C). Structural degradation begins at the softening point, typically around 1,555°F. Complete liquefaction occurs at the absolute melting point of 2,075°F.
The inorganic nature of this material prevents combustion entirely. Glass fibers do not burn. When exposed to extreme heat, the material releases non-flammable gases. These gases actively resist ignition and help smother localized flames. This chemical stability ensures the filter media will not act as a fuel source during a facility fire. Glass Fiber High Temperature Media relies on these exact chemical properties to survive where synthetic polymers melt instantly.
Glass Fiber Composition and Thermal Thresholds | |||
Glass Type | Primary Composition | Continuous Operating Temp | Softening Point |
|---|---|---|---|
Standard E-Glass | Alumino-borosilicate | 1,000°F (540°C) | 1,555°F (846°C) |
C-Glass | Calcium borosilicate | 750°F (400°C) | 1,290°F (698°C) |
High-Silica Glass | >96% Silica | 1,800°F (982°C) | 3,000°F (1,648°C) |
Thermal insulation in filtration depends on physical structure. Glass fiber webs feature exceptionally low thermal conductivity. Manufacturers engineer precise fiber diameters to create a complex, interwoven matrix. This matrix traps millions of microscopic air pockets. Air is an inherently poor conductor of heat.
These trapped air pockets create a highly effective thermal barrier. The structure utilizes the poor thermal conductivity of air to insulate the downstream environment. Upstream heat sources cannot easily transfer energy across the filter plane. This micro-structural design keeps downstream components cooler and protects sensitive equipment from thermal damage. The density of the fiber pack directly correlates to its insulating properties. Tighter fiber weaves trap smaller air pockets, which restricts convective heat transfer through the media bed.
Heat degrades the structural integrity of all materials. Glass fibers experience a predictable degradation curve under thermal stress. The media retains approximately 50% of its room-temperature tensile strength at 700°F. At 900°F, tensile strength drops to roughly 25%. Engineers must account for this strength reduction during system design.
Maintaining structural rigidity is a strict requirement. The media must withstand system airflow velocity without tearing. If the fibers become too weak, the filter pack will collapse. A collapsed filter causes immediate bypass leaks and total loss of containment. Proper pleat spacing and structural separators help compensate for this loss of tensile strength. Deep-pleat designs distribute the aerodynamic load across a larger surface area, reducing the physical strain on any single fiber strand.
Rapid thermal expansion and contraction destroy standard filters. High-quality glass fiber high temperature media exhibits exceptional dimensional stability. It features a very low coefficient of thermal expansion. The fibers do not expand significantly when heated. They do not contract violently when cooled rapidly.
Synthetic alternatives suffer from severe thermal shrinkage. When synthetic media shrinks, it pulls away from the filter frame. This creates massive bypass leaks. Glass fiber maintains its exact physical shape during extreme thermal cycling. It holds a tight, continuous seal within the filter housing, ensuring all air passes through the media. Facility operators running batch ovens rely on this stability, as temperatures ramp up and down multiple times per day.
Sterile manufacturing requires absolute particulate control under extreme heat. Pharmaceutical depyrogenation ovens rely on these specialized filters to sterilize glass vials. Semiconductor manufacturing and sterile high-heat tunnels also demand sub-micron filtration to prevent microscopic defects. A high temperature HEPA filter provides the necessary protection for these highly controlled environments.

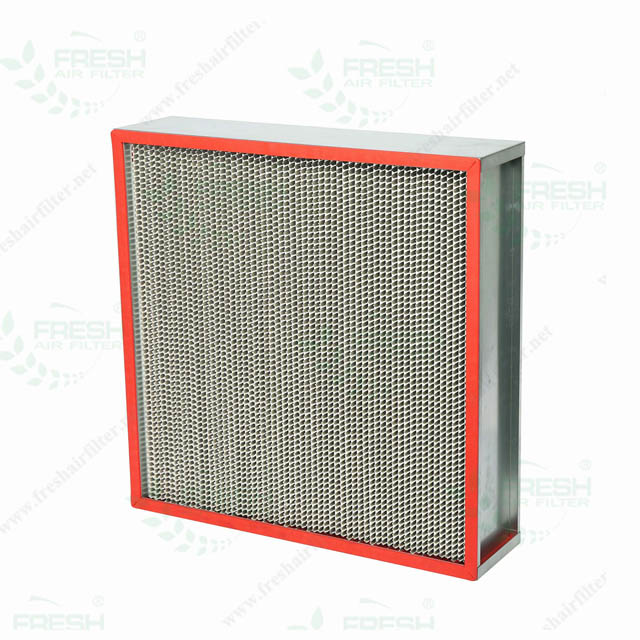

Construction methods differ significantly from standard HEPA filters. Manufacturers use deep-pleated glass fiber media. They insert corrugated aluminum or stainless steel separators between the pleats. These metal separators prevent the media from sagging or collapsing under high heat. The filter must maintain 99.97% to 99.99% efficiency at 0.3 microns. It must sustain this performance at continuous temperatures ranging from 500°F (260°C) to 750°F (400°C). Sealants also change; standard polyurethane is replaced by high-temperature silicone or ceramic cements to bind the media pack to the metal frame.
Heavy industrial processes require robust pre-filtration. Foundry intakes, commercial drying ovens, and heavy industrial exhaust systems generate massive particulate loads. A glass fiber primary panel filter captures these coarse contaminants before they damage sensitive equipment or clog secondary filtration stages.
These filters utilize spun glass fibers woven into a progressively dense matrix. The media is typically housed in galvanized or aluminized steel frames to withstand heat and moisture. They offer high dust-holding capacity for coarse particulates. By capturing large debris, they protect downstream, higher-efficiency filters from premature loading in high-heat zones. The progressive density design ensures that larger particles are caught near the air entry side, while finer dust penetrates deeper into the media bed, maximizing the filter's operational lifespan.
Comparison of High-Heat Filtration Solutions | ||
Feature | High Temperature HEPA | Glass Fiber Primary Panel |
|---|---|---|
Target Particulate Size | Sub-micron (0.3μm) | Coarse (10μm and larger) |
Efficiency Rating | 99.97% - 99.99% | MERV 4 - MERV 8 equivalent |
Typical Frame Material | Stainless Steel / Aluminum | Galvanized Steel |
Primary Use Case | Depyrogenation, Cleanrooms | Foundries, Exhaust Pre-filtration |
Manufacturing glass fiber media requires chemical binders. Most manufacturers use acrylic or organic binders to hold the fibers together. These binders provide the necessary rigidity for pleating and assembly. However, these organic compounds cannot survive extreme heat.
Binders typically burn off between 300°F and 400°F. This creates temporary smoke and off-gassing during the initial heat cycle. Facility engineers must evaluate "pre-baked" filters versus standard filters. Pre-baked filters have the binders removed at the factory, eliminating onsite smoke. Standard filters require careful onsite commissioning to align with cleanroom contamination limits. If you install a standard filter in a pharmaceutical oven without a burn-off cycle, the resulting smoke will ruin the entire product batch.
Extreme heat alters the physical properties of air. As temperature rises, air density decreases while viscosity increases. This change in viscosity directly impacts the pressure drop across the filter media. The system experiences higher resistance even if the airflow volume remains constant.
Engineers must calculate required fan power accurately. The structural frame must possess the strength to handle increased resistance during peak temperature spikes. Failure to account for high-temperature air viscosity will result in reduced airflow and potential system stalling. Variable frequency drives (VFDs) on supply fans are often necessary to maintain consistent airflow as the oven temperature ramps up and the air becomes more viscous.
High-heat environments demand strict regulatory compliance. Filters must carry specific certifications for extreme conditions. Facility managers must verify these ratings before installation to ensure safety and insurance compliance.
Verify UL 900 flammability ratings to ensure the media will not add fuel to a fire.
Check EN 1822 certification for HEPA efficiency under thermal stress.
Confirm the frame sealants are rated for the maximum peak temperature, not just the continuous operating temperature.
Review local fire codes regarding exhaust filtration in high-heat industrial processes.
The non-flammable nature of glass fiber mitigates severe facility fire risks. The material releases non-flammable gases under extreme heat. This action helps suppress active flame propagation. Utilizing certified non-combustible media often lowers insurance liabilities.
High-temperature filtration requires a larger initial investment. Glass fiber media carries a premium upfront cost compared to standard synthetics. The specialized frames, metal separators, and high-temp sealants add to the manufacturing expense. Buyers must evaluate this cost against operational longevity.
Calculate the return on investment based on failure prevention. Standard filters melt and destroy downstream equipment. Glass fiber prevents catastrophic failure and reduces costly downtime. The extended replacement intervals in extreme environments easily justify the higher initial capital expenditure. A single batch of contaminated pharmaceutical product costs exponentially more than upgrading to the correct high-temperature filtration system.
Structural integrity requires denser media configurations. Denser glass fiber media yields a higher initial pressure drop. This increased resistance forces HVAC fans to work harder. Higher fan speeds directly translate to increased electrical consumption.
Facility managers must balance filtration efficiency with energy costs. Pushing viscous, high-temperature air through dense media requires significant power. Optimize filter surface area to reduce face velocity. A larger filter bank lowers the pressure drop and mitigates the energy consumption penalty over time. Upgrading fan motors to higher efficiency models also helps offset the aerodynamic penalty of dense glass fiber webs.
Glass fibers become highly fragile after thermal exposure. Once the organic binders burn off, the media loses its flexibility. Prolonged exposure to high heat makes the fibers increasingly brittle. Improper handling will instantly destroy the filter.
Establish strict standard operating procedures for maintenance personnel. Technicians must handle high-temp filters by their metal frames only. Touching the media post-heating causes immediate micro-fractures. These fractures create bypass leaks that compromise the entire sterile environment.
Inspect the filter frame for shipping damage before installation.
Lift the filter using only the rigid outer frame.
Apply high-temperature gaskets carefully to avoid pressing against the pleated media.
Torque the mounting hardware evenly to prevent frame distortion.
Never touch the media face during or after the operational cycle.
The initial heat cycle presents the highest contamination risk. Uncontrolled binder burn-off releases smoke and volatile organic compounds. If unmanaged, this off-gassing will heavily contaminate the sterile or clean process area. It coats surfaces and ruins sensitive product batches.
Implement a strict, stepped heat-up protocol. Raise system temperatures by 50°F increments. Hold the temperature at each step to allow controlled burn-off. Exhaust the resulting smoke externally. Never route the air into the clean zone until the burn-off phase is entirely complete. A typical burn-off cycle takes several hours and requires constant monitoring of the exhaust air quality.
Audit your current system's peak temperature spikes to determine exact thermal requirements.
Map your maximum continuous operating temperature against your required micron-level capture efficiency to select the correct filter type.
Review binder burn-off protocols with your facility managers to prevent accidental cleanroom contamination.
Request technical specification sheets detailing tensile strength retention and dimensional stability at your specific operating temperatures.
Establish strict handling procedures for maintenance staff to prevent media fracture during post-heat filter replacements.
A: Glass fiber media typically withstands continuous operating temperatures up to 1,000°F (540°C). Structural degradation begins at the softening point of 1,555°F. Complete failure occurs at the absolute melting point, which exceeds 2,075°F depending on the specific glass composition.
A: It actively resists heat transfer. The media features a complex web of fibers that trap millions of microscopic air pockets. Because air is a poor conductor of heat, this structure acts as an excellent insulator with exceptionally low thermal conductivity.
A: No. Glass fiber has high dimensional stability and a very low coefficient of thermal expansion. It maintains its exact shape and structural integrity without shrinking, warping, or pulling away from the frame during rapid thermal cycling.
A: During initial use, organic binders holding the fibers together vaporize between 300°F and 400°F. This binder burn-off creates temporary smoke and odor. A controlled initial heat cycle is required to exhaust this off-gassing away from clean zones.
A: Synthetic media typically melts, shrinks, or catches fire at temperatures above 250°F. Glass fiber maintains its physical shape, structural integrity, and non-combustible properties in extreme heat, ensuring continuous coarse particulate filtration without risking system failure or fire.
