FRS-DPA
Fresh
5601229000

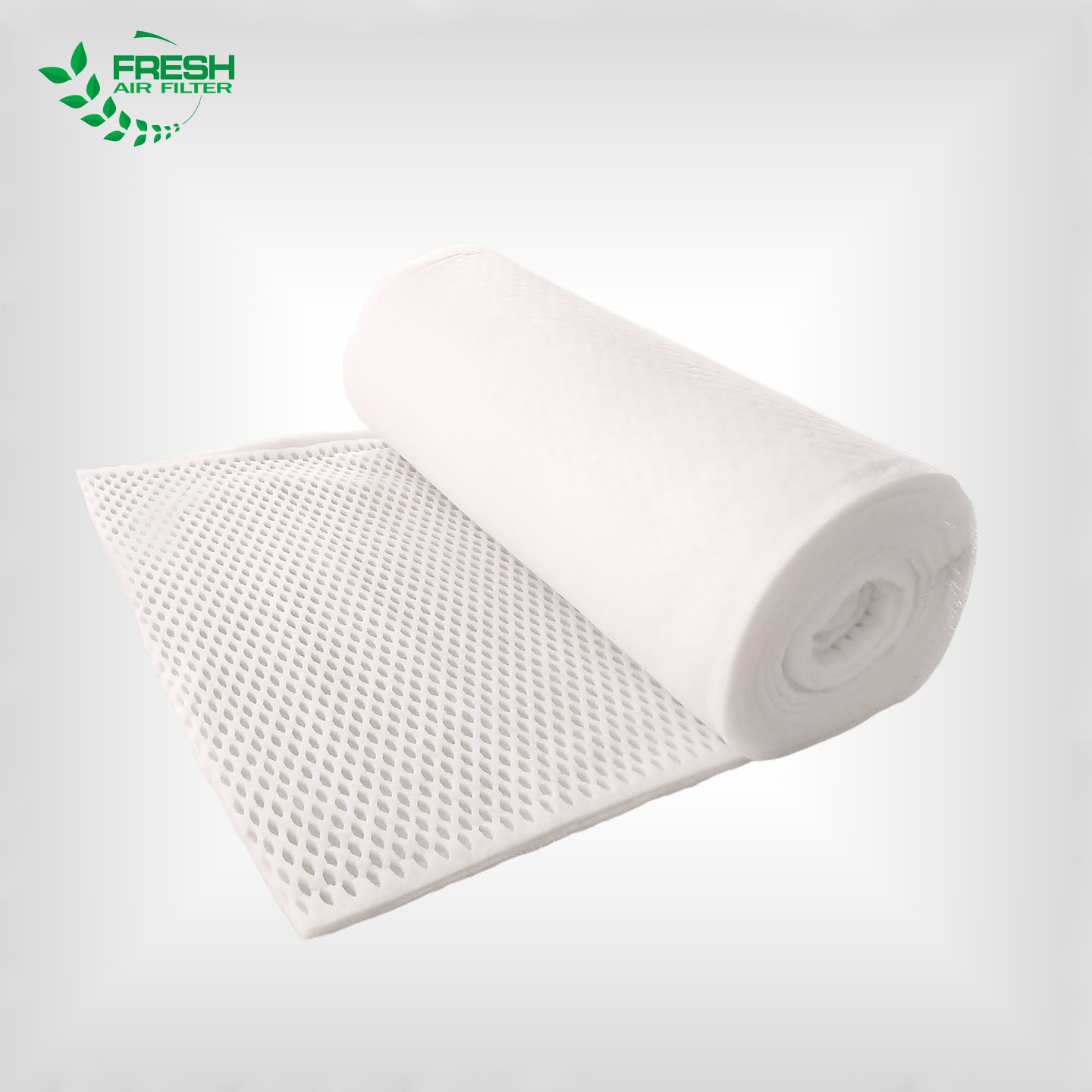

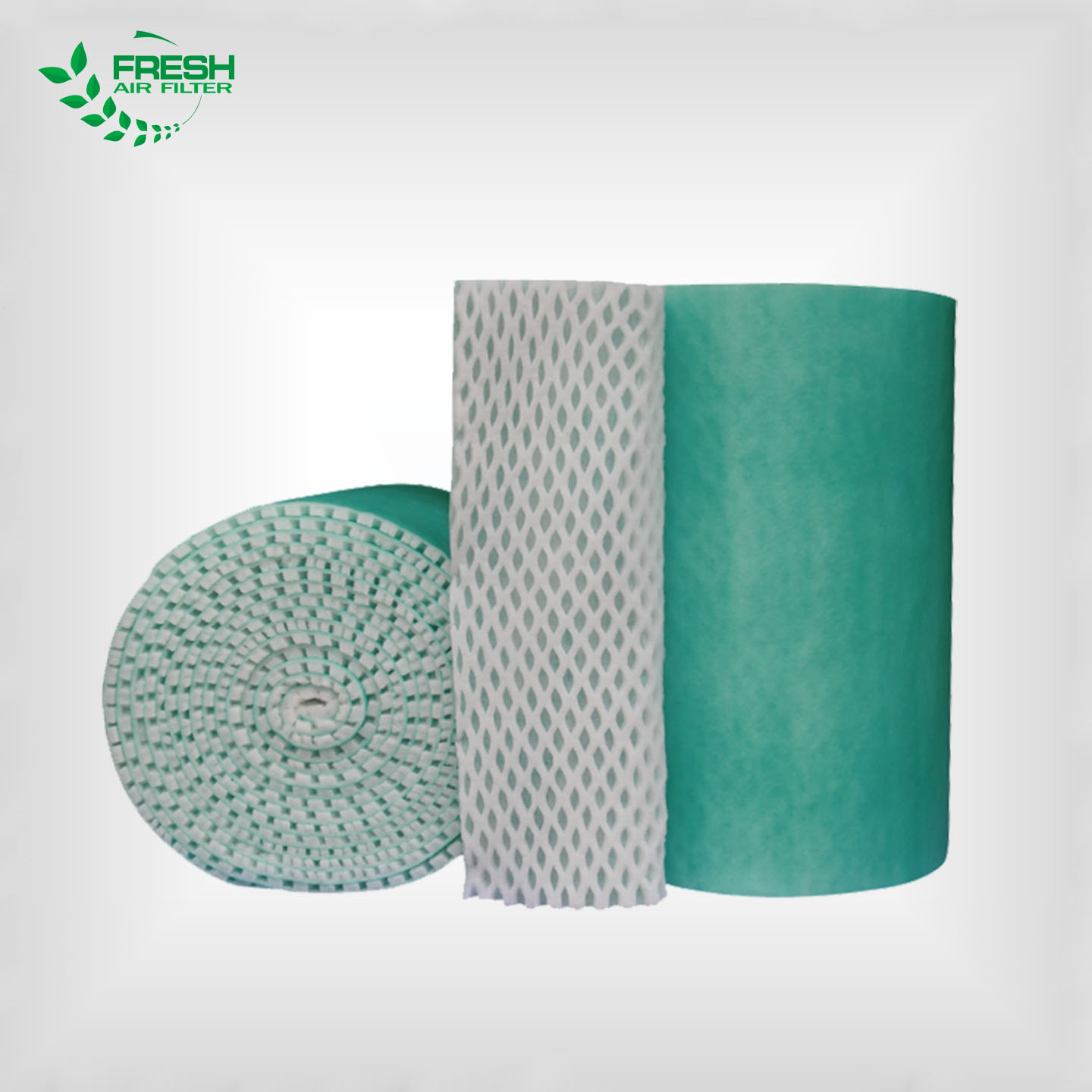

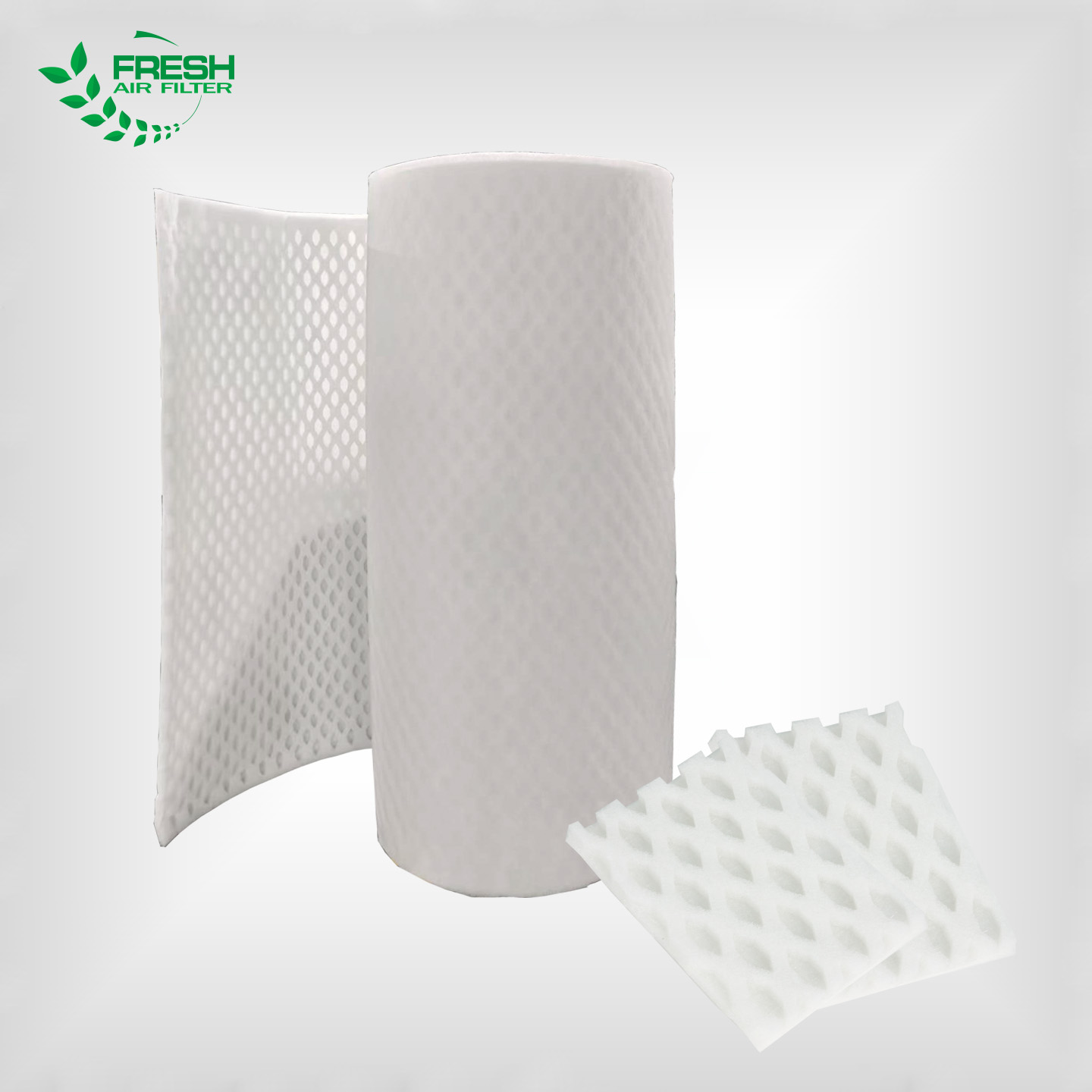

DPA Paint Mist Filter Media
Features：
Good filtration performance,high tensile strength and high corrosion resistance;
Large capturing capacity and stable performance, Long using life;

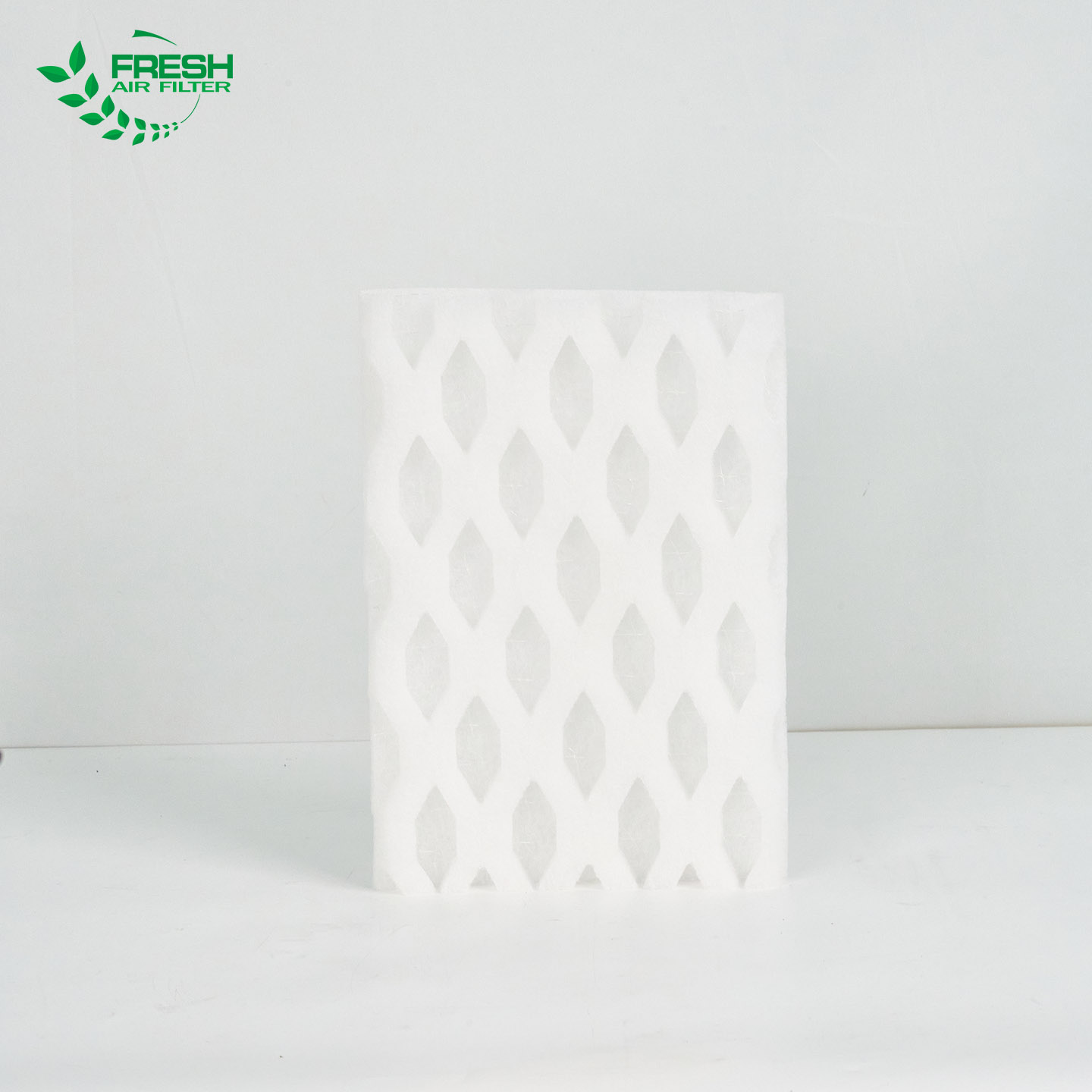

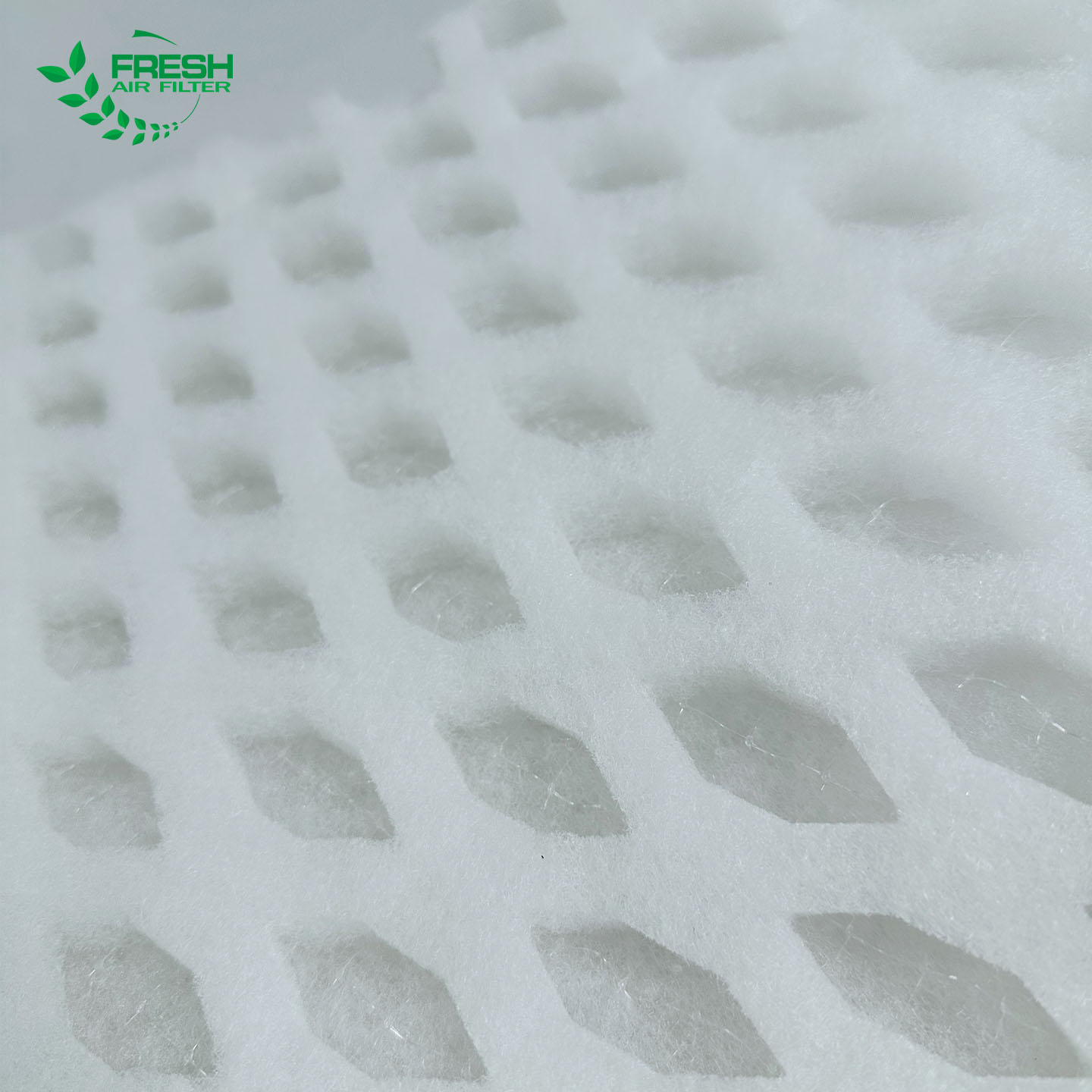

The diamond-shaped three-dimensional material structure prevents premature blockage of the filter to absorb paint mist,Increased filtration area;
Good resistance to moisture;
3-5 times longer service life than other common paint mist filtering materials;

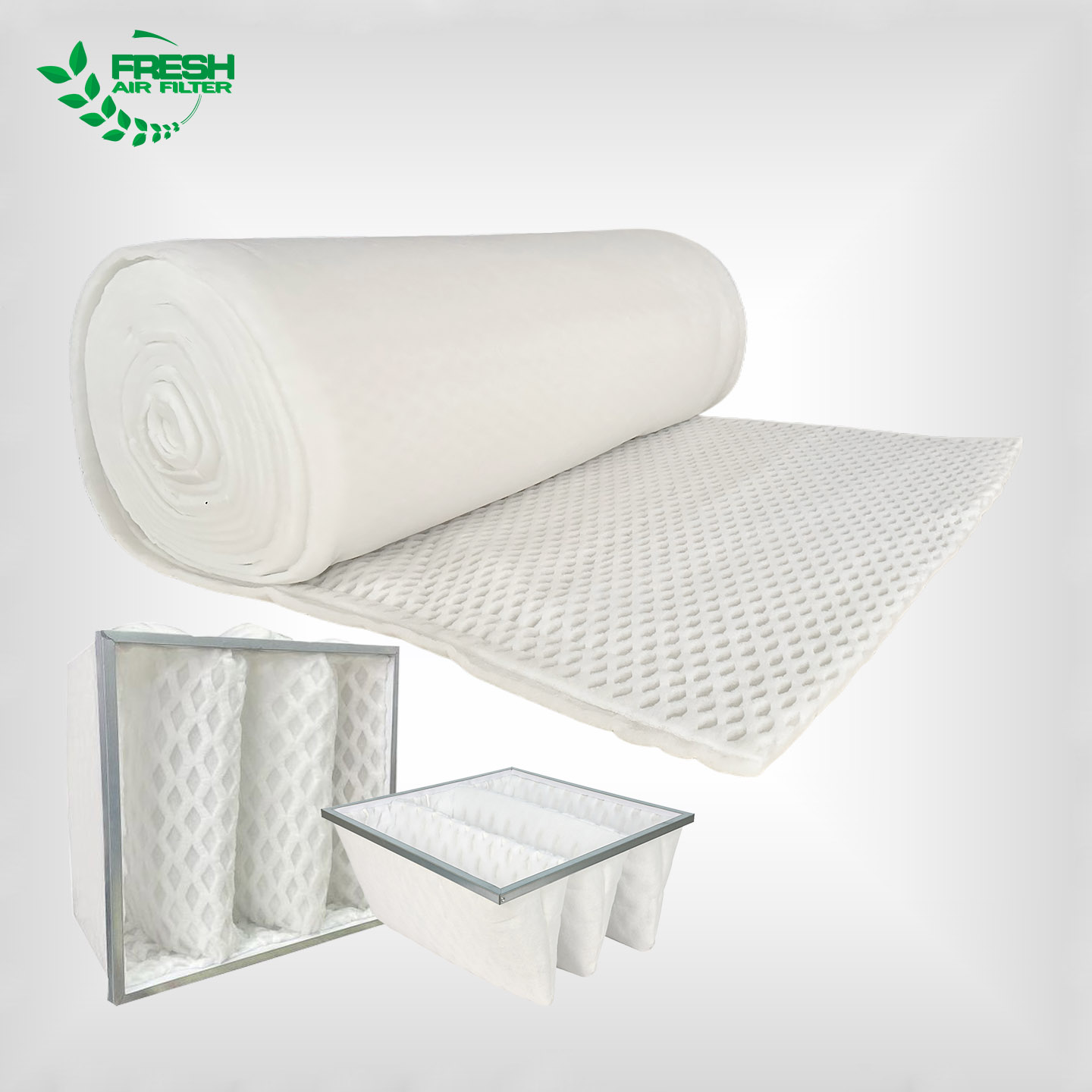

Can be made into a bag filter, is a good choice of paint mist filter material.
Application: For the filtration of paint mist or industrial oil mist emissions from painting systems.
Technical Parameters | |
Main Material | Coarse fiber perforated (PET)+ chemical fiber mesh+ fine fiber (PET) |
Filtration Class | G3、G4 (EN779) |
Filter Object | Coarse dust and foreign matter ≥ 5µm (paint mist particles) |
Average Weight Efficiency | 95% (ASHRAE52.l-1992) |
Flammability Rating | F1(DIN 53438)/B1(GB/T 17591-2006) |
Temperature Resistance | ≤100℃ |
Instantaneous temp resistance | ≤120℃ |
Humidity Resistance | ≤100%RH |
Specification | ||||||||
Model | Weight (g/㎡) | Thickness (mm) | I.N.P (Pa) | F.N.P (Pa) | Rated air velocity (m/s) | Rated air flow (m³/h) | Paint capacity (Kg/㎡) | Capture efficiency |
FRS-DPA-25 | 400 | 25 | 30 | 300 | 0.6 | 2200 | 25 | ＞95% |
FRS-DPA-30 | 500 | 30 | 35 | 300 | 0.6 | 2200 | 30 | ＞98% |
FRS-DPA-40 | 600 | 40 | 40 | 300 | 0.6 | 2200 | 32 | ＞99% |
Note: Other specification are available upon request. | ||||||||
