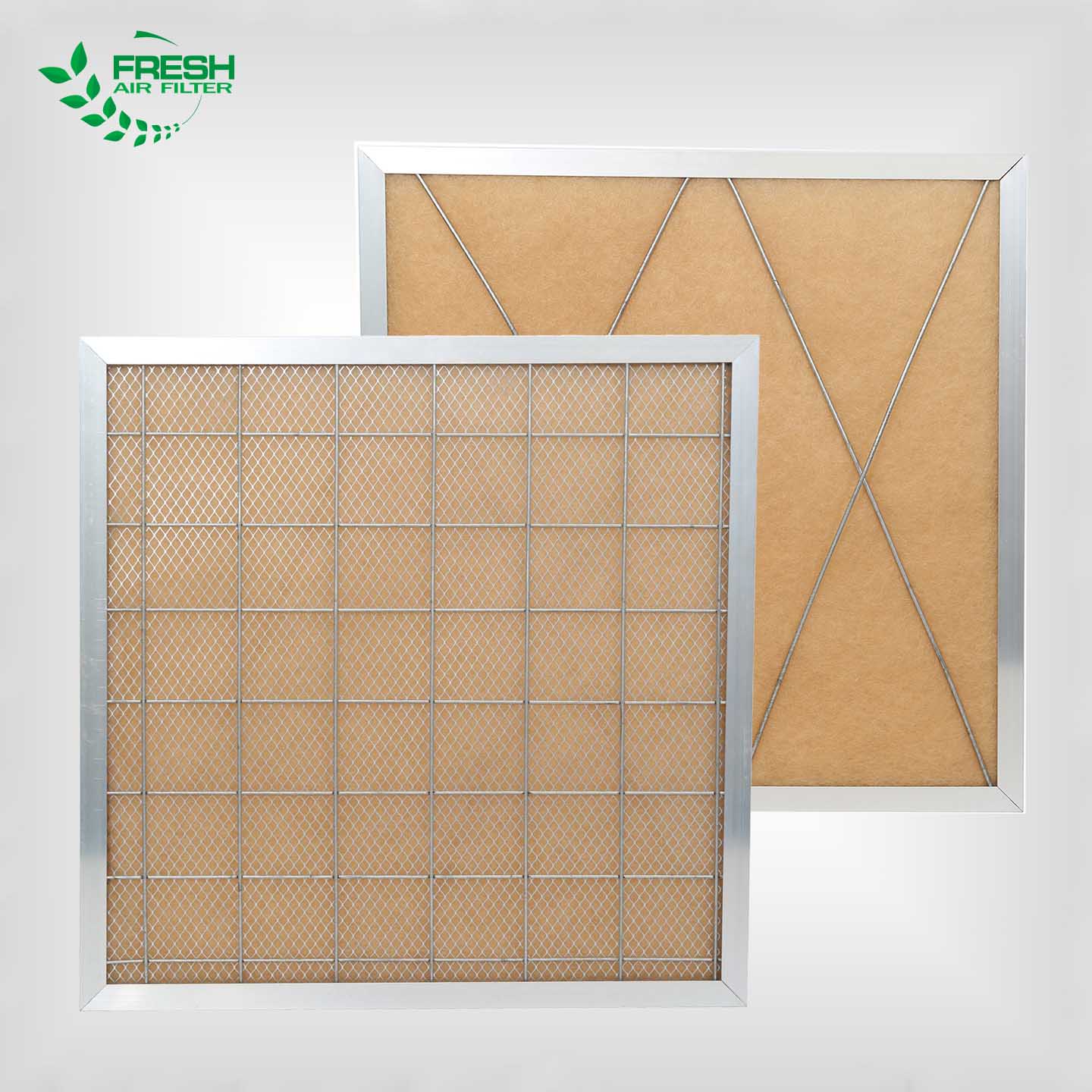

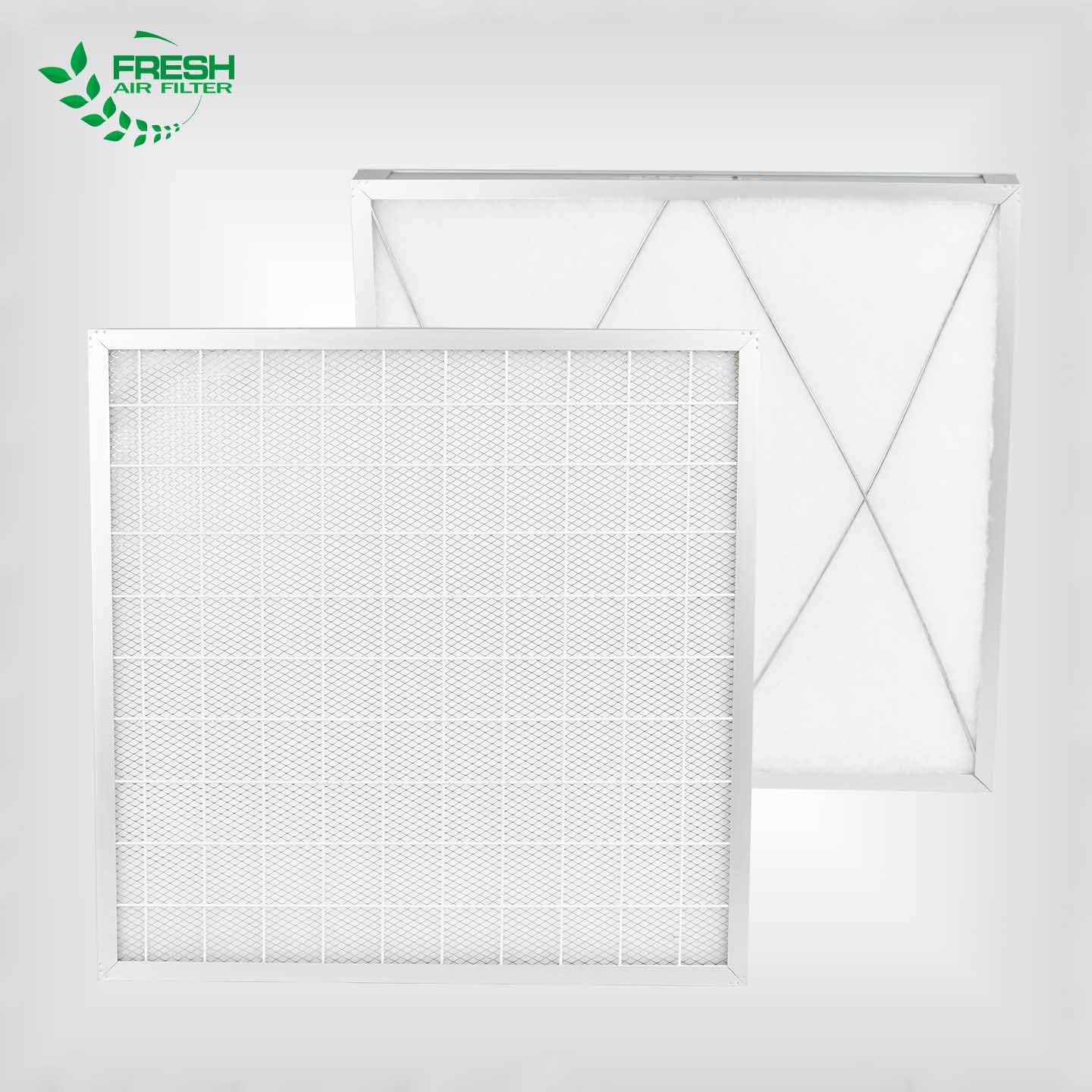

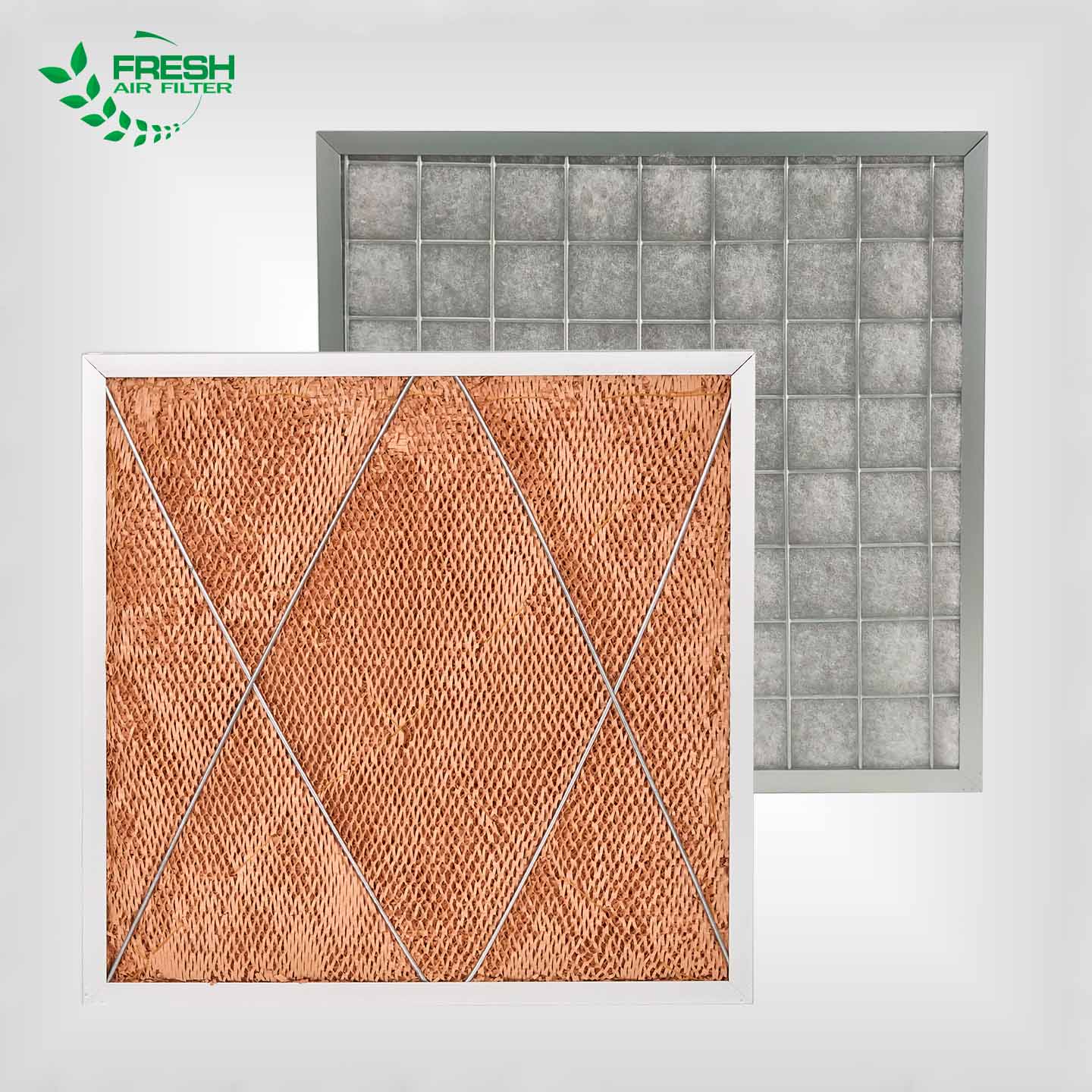

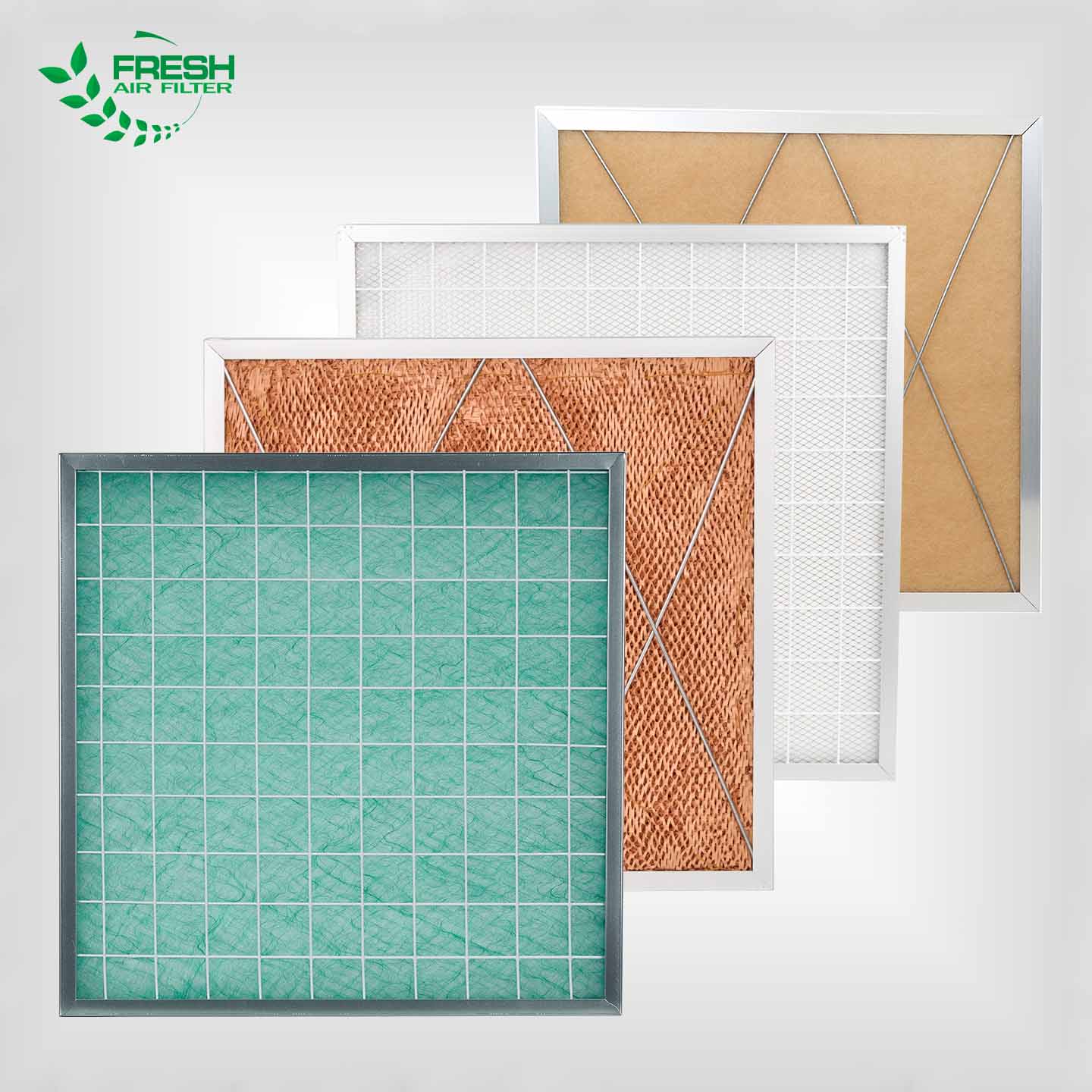

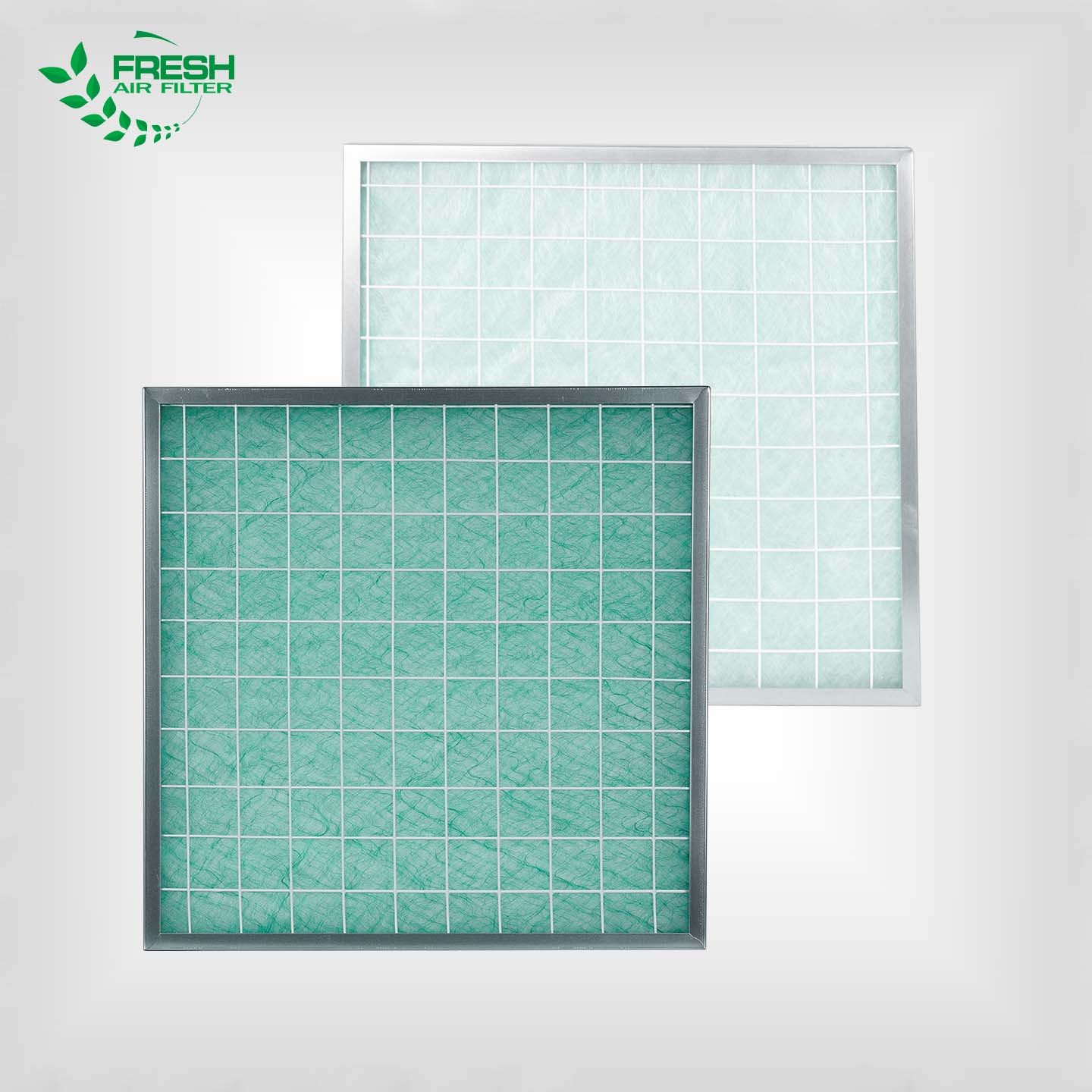

Flat Panel Pre-filter for HVAC Ventilation

Name: Flat Panel Pre-filter for HVAC Ventilation
Brand: Fresh
Rating: 5.0 (64 reviews)

Standard Filtering Media: Polyester fiber cotton (PET)

Optional media: Washable PET, Fiberglass, High-temp flame retardant synthetic media

Sales Models: Wholesale
Min Order Quantity: 10pcs

Availability:

Quantity:



Inquire Add to Basket

Model:
FRS-BSPB-A1-G4
Brand:
Fresh
Code:
8421399090

Product Overview

Flat panel pre-filter is an economical disposable primary filter with flat filter media. It is widely used in commercial and industrial HVAC & ventilation pre-filtration to capture coarse dust and hair, extending the service life of subsequent filter elements.

Scope of Application:

Pre-filter and foreign material filtration in commercial and industrial ventilation systems.
1. Used for clean room conditioning system, pre-filtration through fresh air venting units, and exterior air conditioning connection.
2. Primary filtration of central air conditioning system.
3. Pre-filtration at the inlet of Air purification equipmen.
4. Pre-filtration in a medium filter.
5. Primary filtration or secondary filtration in a filter system.
6. Glass fiber plank pre-filter in Ventilation system for outdoor fire-proof and high temp resistance working condition.

Material & Features:

Simple flat panel structure, lightweight and economical
Effectively traps lint, hair and coarse dust particles
Low air resistance, stable airflow performance
Easy to install and replace, disposable design
Protect mid & high efficiency filters to reduce maintenance cost
Ideal pre-filter for commercial and industrial HVAC systems
Customization:Can be customized with washable material, multiple use after washing.

Can be customized with removable structure, outer frame and mesh can be multiple used.

flat panel pre-filter G4 Primary Air Filter HVAC panel pre filter disposable panel air filter Polyester Panel Filter ventilation pre filter air conditioning prefilter

Technical Parameters
Main Material	Filtering Media	Standard media：Polyester fiber cotton (PET) Optional media：Washable PET / Glass fiber / High-temp flame retardant synthetic media / Multi-layer grid paint mist filter paper / Biochemical filter mat
	Outer Frame	Galvanized steel sheet / Aluminum alloy / Aluminum sheet / Stainless steel sheet / Cardboard frame
	Support rack or protective mesh	galvanized protective mesh, aluminum protective mesh, stainless steel mesh, spray plastic mesh
Filtration Class	G2,G3,G4 (EN779)	Temperature Resistance	Polyester fiber media ≤ 100℃
			Glass fiber media ≤ 300℃
Filter Object	Coarse dust or particles ≥5μm	Instantaneous Temp Resistance	Polyester fiber media ≤ 120℃
			Glass fiber media ≤350 ℃

Model	Outline Dimension			Rates Air Velocity (m/s)	Rated Air Flow (m³/h)	Initial Pressure Drop (Pa)
Model	H(mm)	W(mm)	T(mm)	Rates Air Velocity (m/s)	Rated Air Flow (m³/h)	Initial Pressure Drop (Pa)
FRS-PB-7	595	595	7	1	1200	≤50
FRS-PB-10	595	595	10
FRS-PB-15	595	595	15
FRS-PB-21	595	595	21
FRS-PB-25	595	595	25
FRS-PB-46	595	595	46
Remarks: Other specifications can be customized
