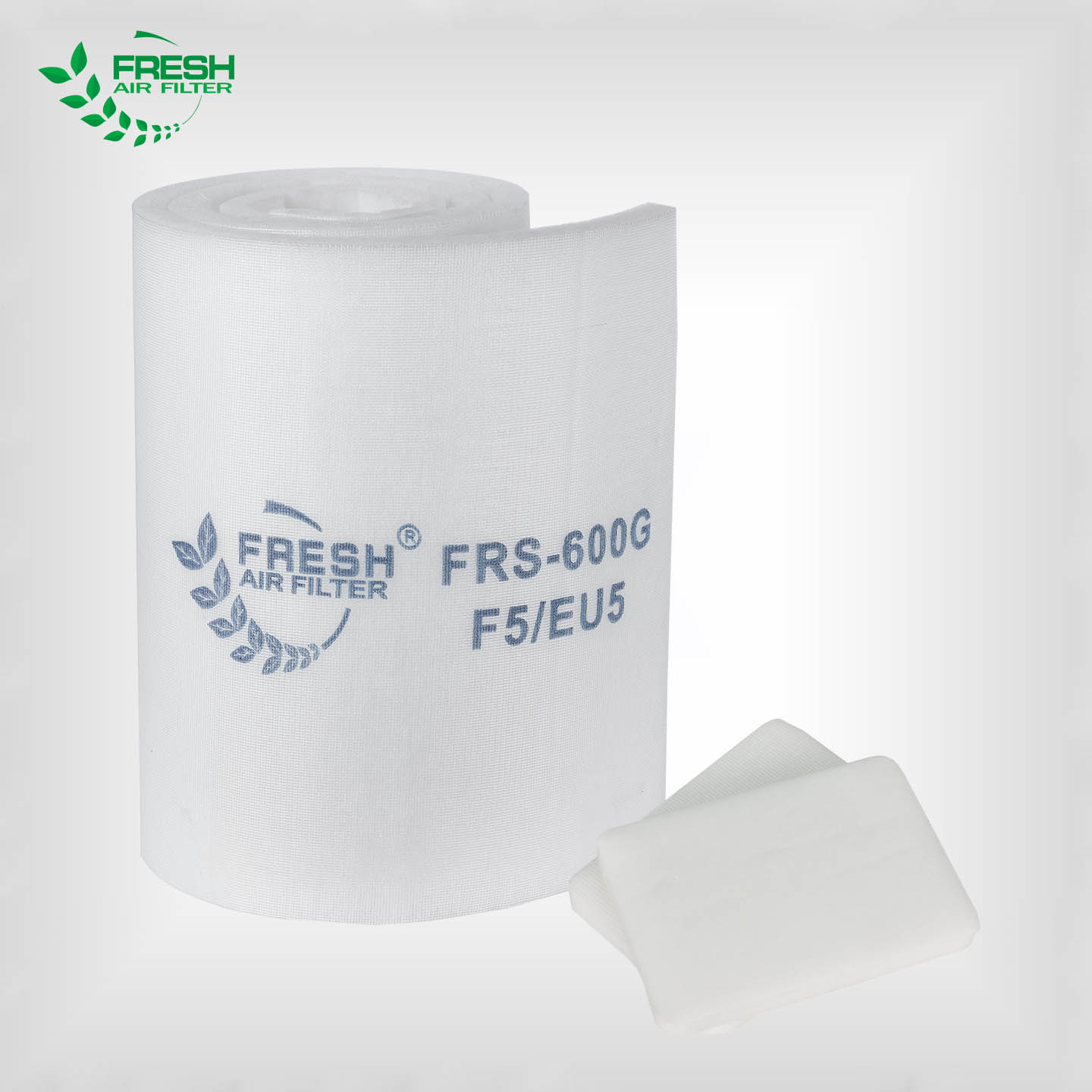

FRS-600G
Fresh
5601229000
Paint Booth Ceiling Filter Media
Filter Classification: M5 (EN779) ；ISO ePM10 (ISO 16890)
Filtration Targets : Particles: ≥1μm
Average Efficiency (%) : M5 (40≤Em<60;@0.4μm;EN779) ； ISO ePM10 50%~60% (ISO 16890)
Inflaming Retarding Classification: F1（DIN 53438）、B1（GB/T 17591-2025）
Initial Pressure Drop: ≤250 Pa
Recommended Final Pressure Drop: 450 Pa
Dust Holding Capacity: 600g/㎡
Humidity Resistance (Relative Humidity): ≤100%RH
Continuous Temperature Resistance: ≤100℃
Instantaneous Temperature Resistance: ≤120℃
| MODEL NO.: | SPECIFIC DETAILS: |

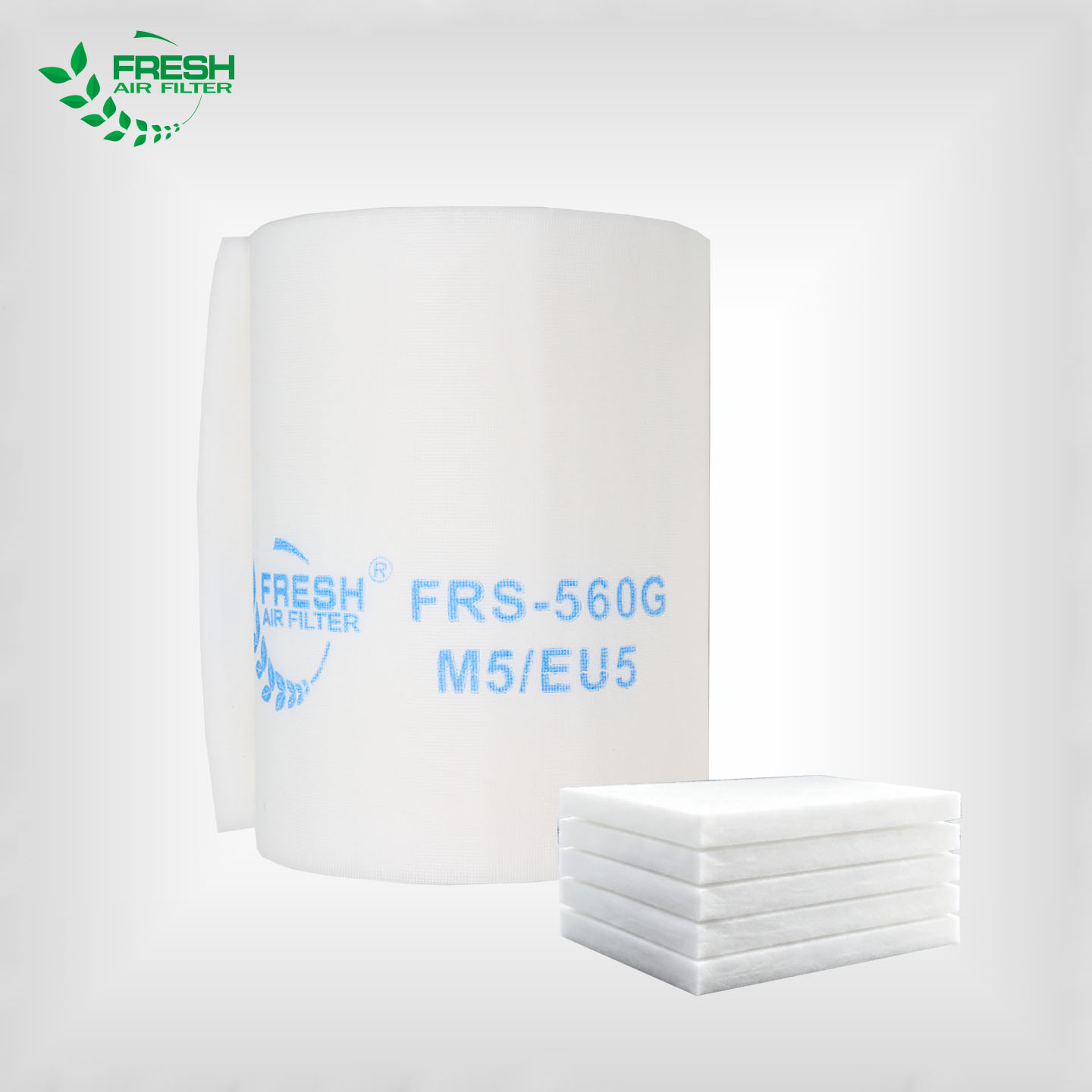

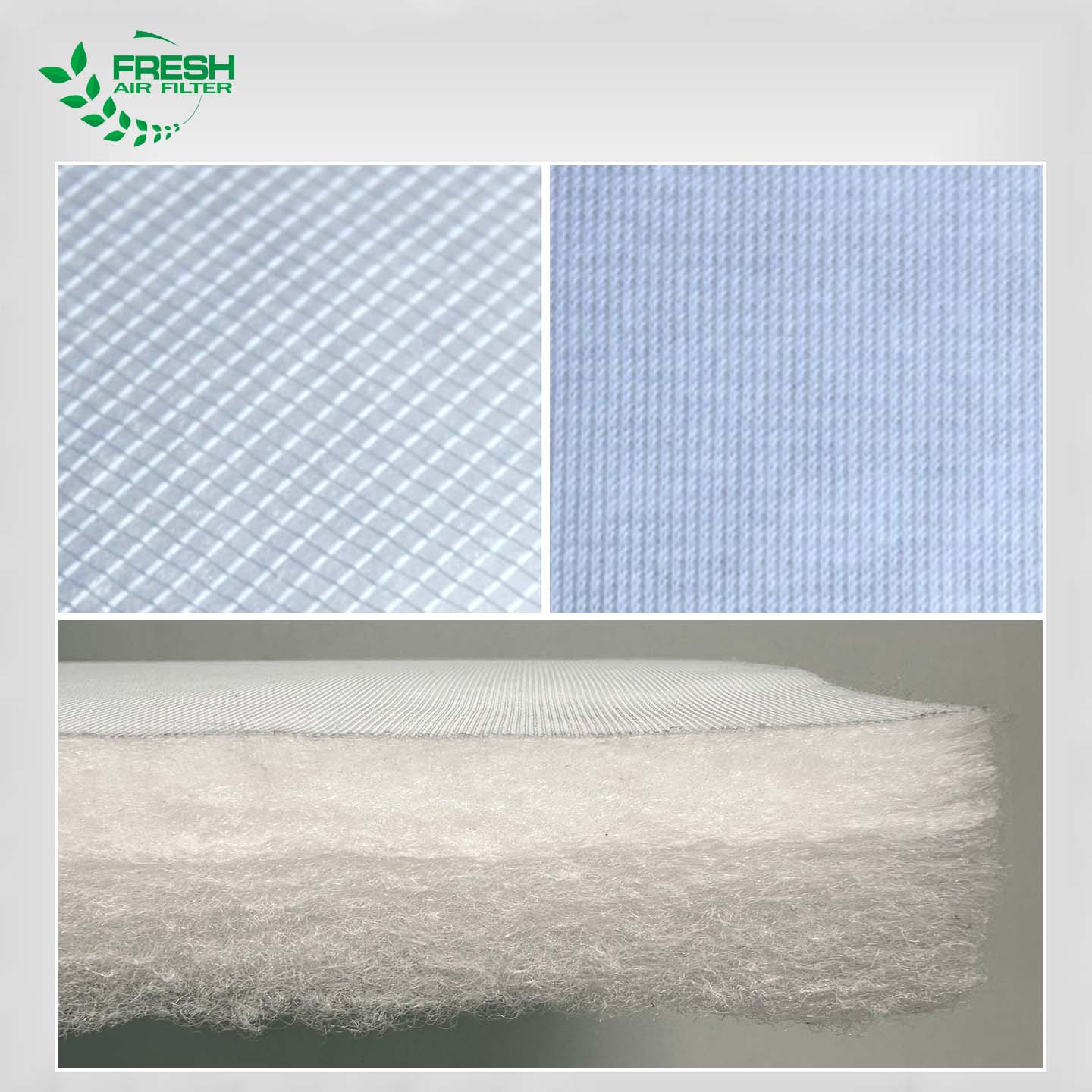

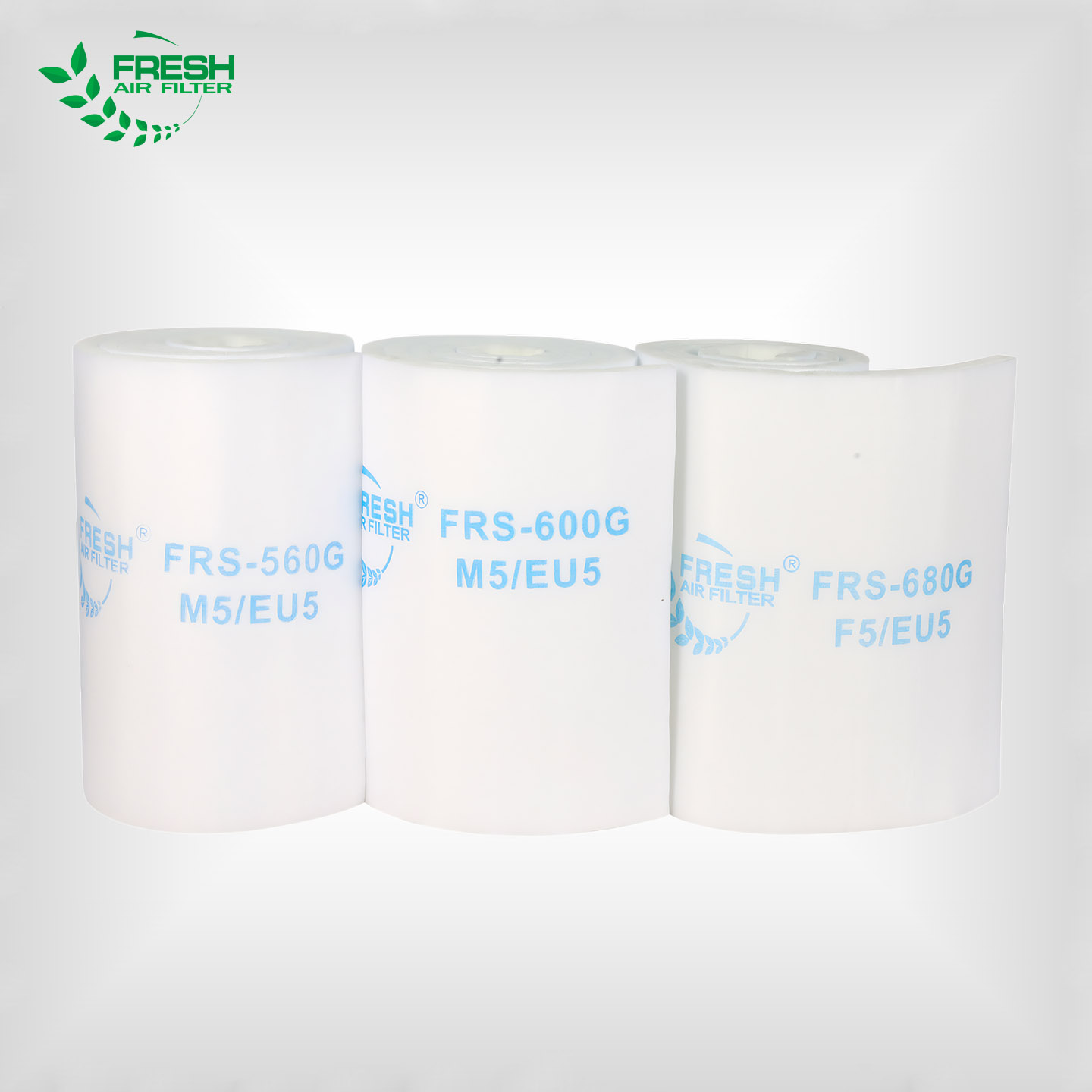

| FRS-560G | PET Fiber (280g/sqm) + Full Glue & Cloth backing ( ≈150g/sqm) PET Fiber (280g/sqm) + Full Glue & Mesh backing ( ≈180g/sqm) |
| FRS-600G | PET Fiber (420g/sqm) + Full Glue & Cloth backing ( ≈150g/sqm) PET Fiber (420g/sqm) + Full Glue & Mesh backing ( ≈180g/sqm) |

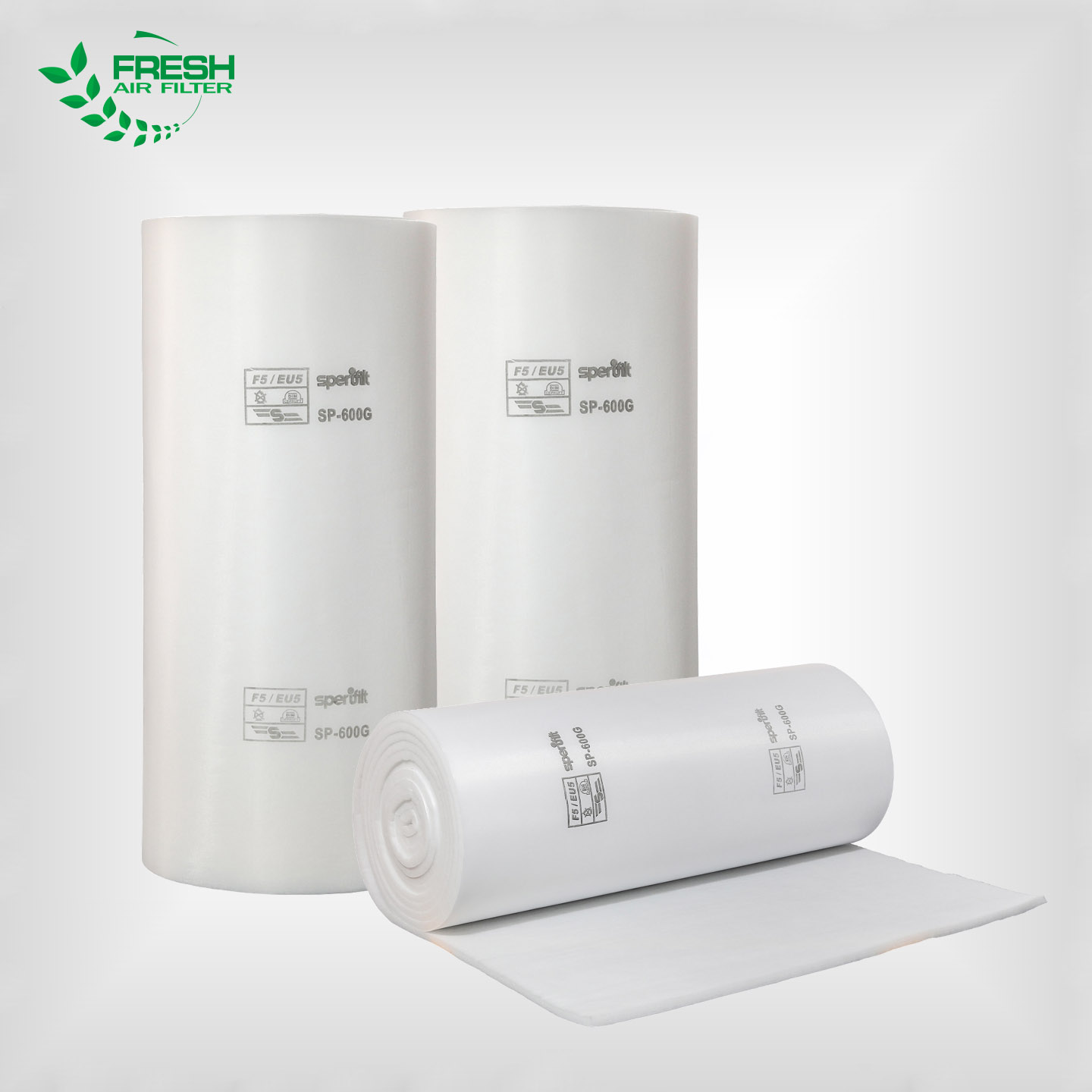

| SP-600G | PET Fiber (280g/sqm) + Surface Glue & Cloth backing ( ≈150g/sqm) |

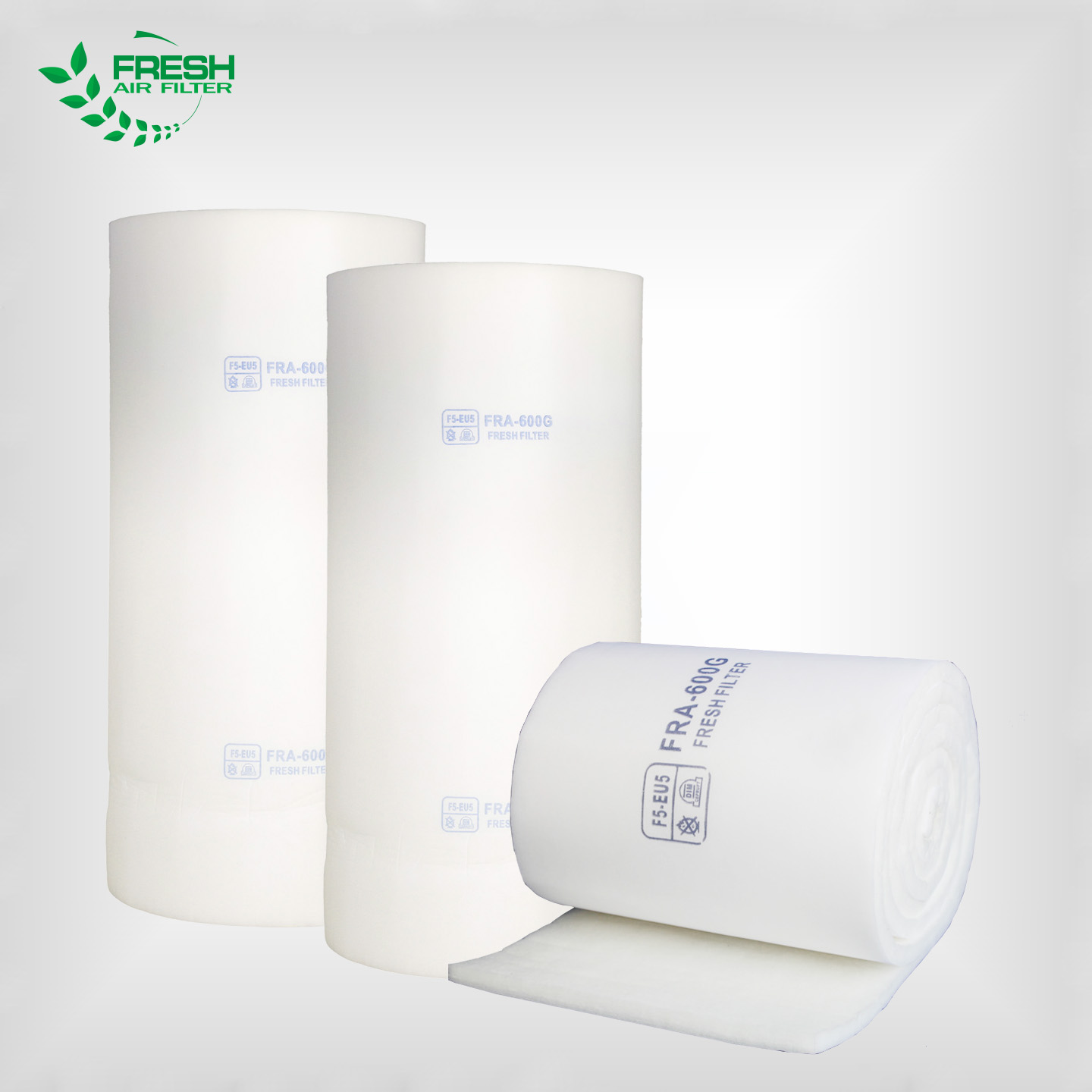

| FRA-600G | PET Fiber (380g/sqm) + Full Glue & Cloth backing ( ≈150g/sqm) High density structure |
| FRS-680G | PET Fiber (480g/sqm) + Full Glue & Mesh backing ( ≈180g/sqm) |
5. Can be customized in pad /cuting in piece/ in roll, or make pt pad with frame.
5. Low Initial airflow resistance.
6. Two types with different glue spray treatment are available, there are surface glue and full glue for your option.
WIND SPEED & RESISTANCE CURVE
SPECIFICATION:
Model | Dimensions | Dust holding capacity | Average Arrestance | Rated air velocity | Initial pressure | Filter Grade | ||
Length (m) | Width (m) | Thickness (mm) | g/㎡ | ASHRAE52.1-1992 | (m/s) | (Pa) | EN779 | |
FRS-560G | 14 / 21 | 1.6 / 2 | 22±2 | 500 | ≥95% | 0.3 | ≤45 | M5 |
| FRS-600G | 14 / 21 | 1.6 / 2 | 22±2 | 600 | ≥98% | 0.25 | ≤45 | M5 |
| FRS-600G/ZR | 14 / 21 | 1.6 / 2 | 22±2 | 600 | ≥98% | 0.25 | ≤45 | M5 |
Remark: Other specifications can be customized according to demand | ||||||||
Product Real Shot
