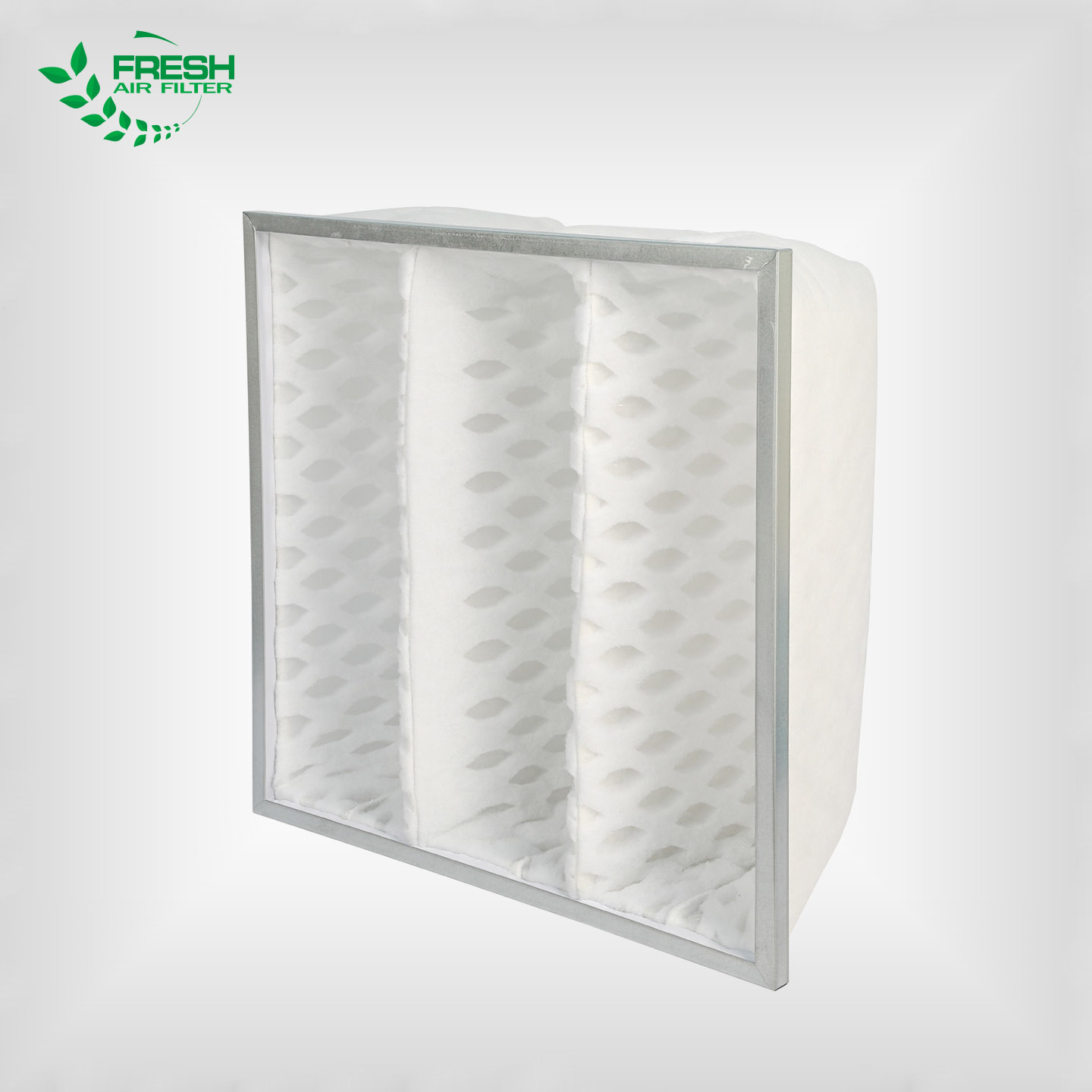

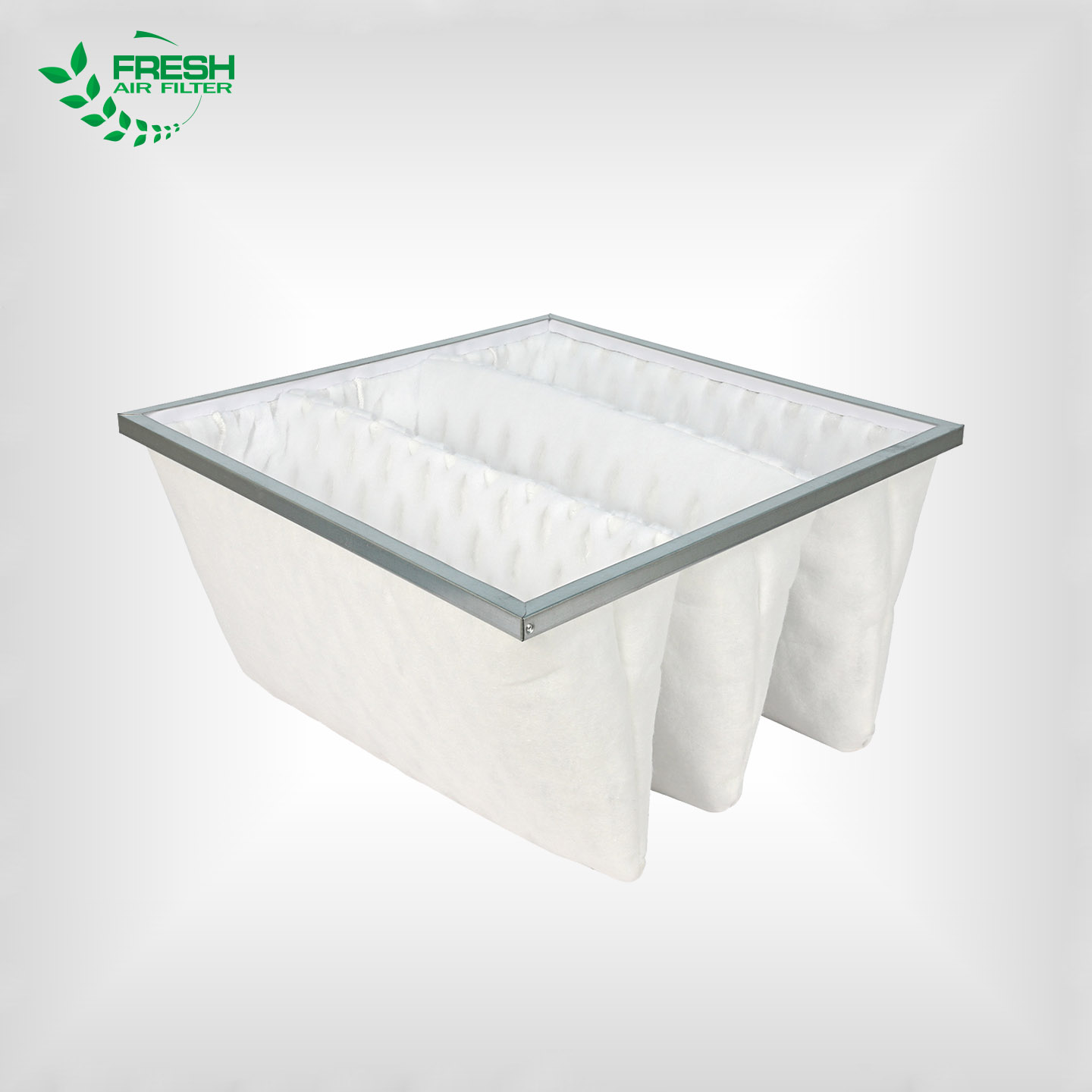

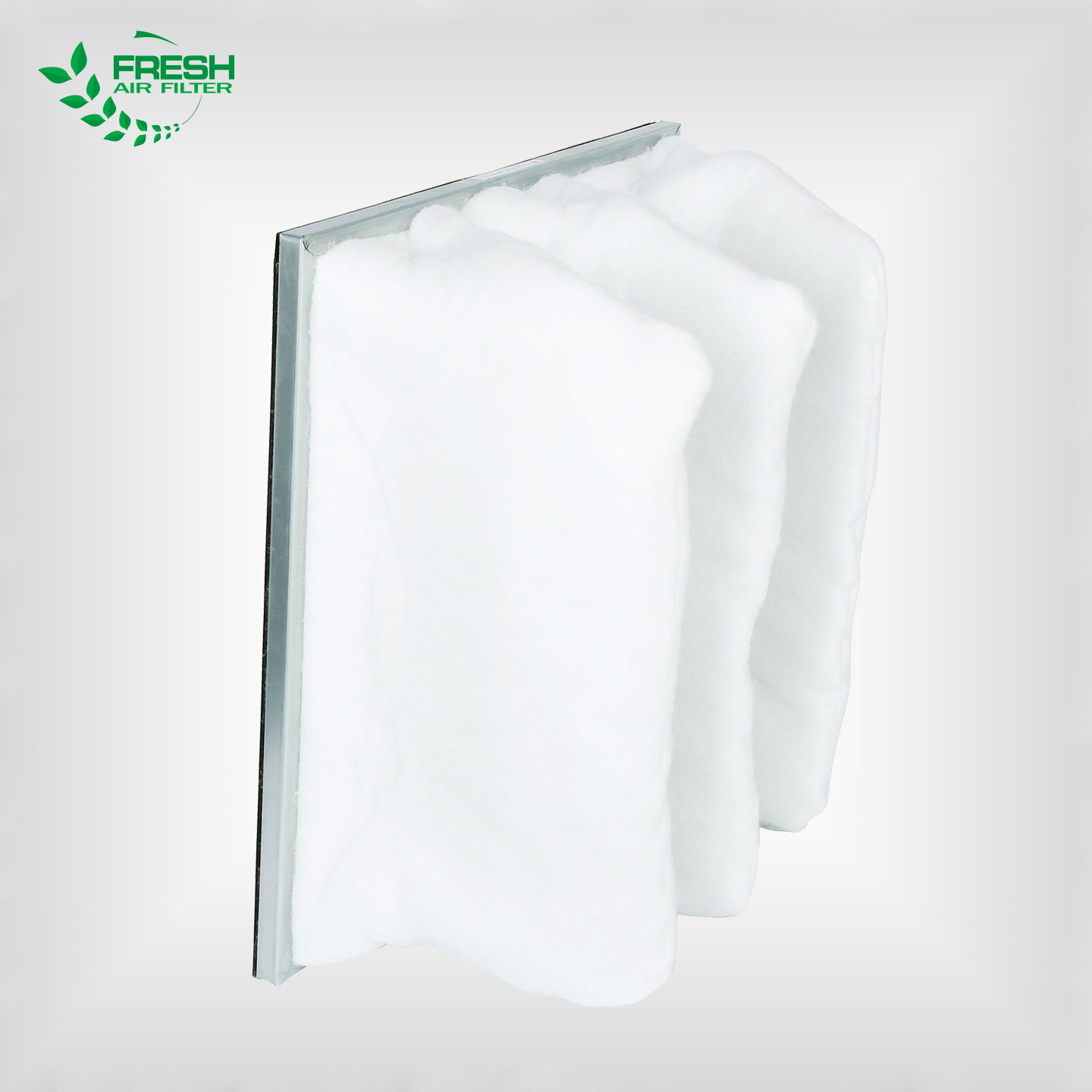

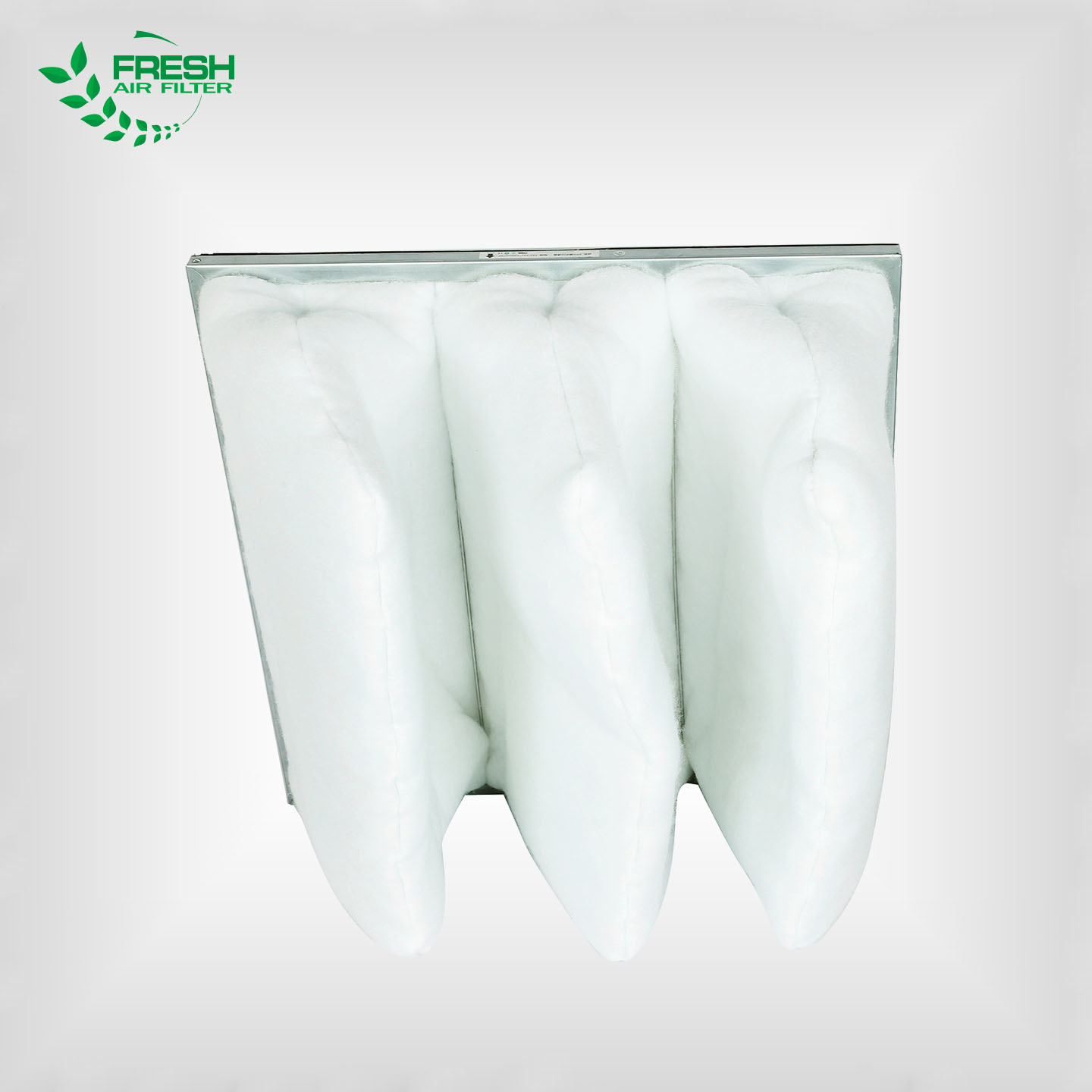

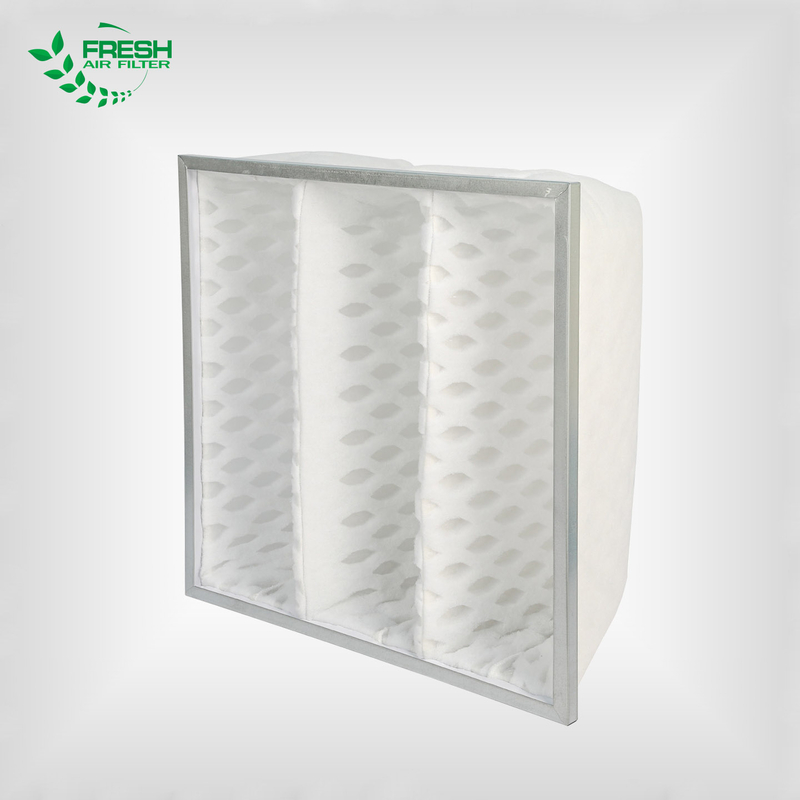

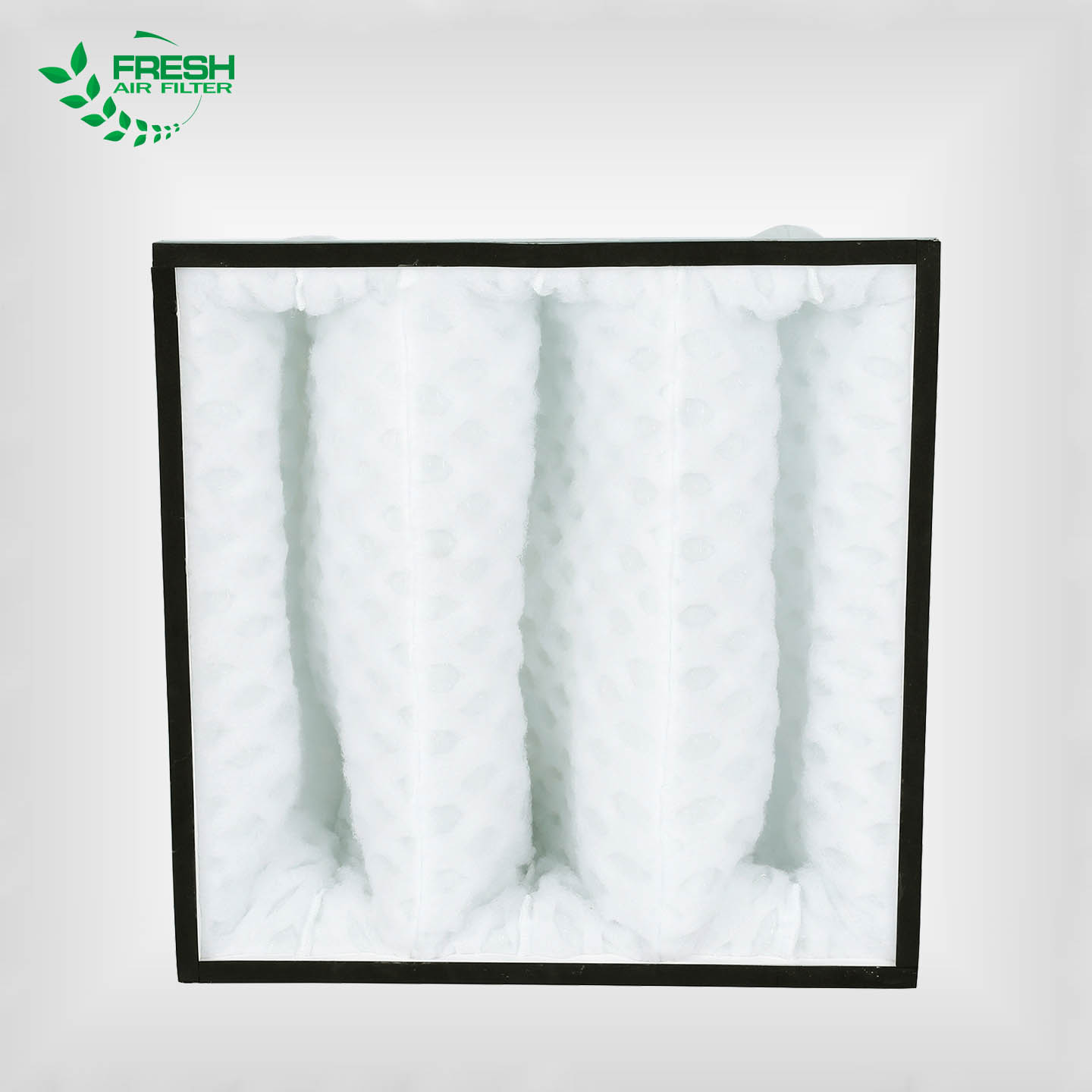

DPA Pocket Filter for Spray Booth Exhaust & Overspray

Material:  DPA filter media (Synthetic Fiber)
Efficiency: G4 (EN779)
Filtration Grade: Pre- Filter
Pocket Number: 3
Sales Models: Wholesale
Min Order Quantity: 20 Pcs
Availability:
Quantity:
Inquire Add to Basket

  • FRS-DPA

  • Fresh

  • 8421392290

Feature:

1) High dust holding capacity.
2) Long service life.
3) Good resistance to moisture.
4) Its raw material is diamond-shape paint mist filter cotton, can reduce replacement times of paint filter.
5) With better performance of painting-collection than other general paint mist filter.
6) There are galvanized steel frame, aluminum frame, stainless steel frame for your option.






Normal Size:

Model

Dimension

Number of Pockets

Blowing Rate/ Initial Pressure Drop
(m3/h/Pa)

H(mm)

W(mm)

D(mm)

FRS-DPA

592

592

600

6

3400/40

4200/60

287

592

600

3

1700/40

2100/60


Remark: Other specifications are available on request.

Technical  Parameters:

*  Ashrae 52.1-1992  : 90%

*  Frame : Aluminum Alloy or Stainless Steel

*  Temp. Resistance: Below100 Celsius

*  Filter Object : Particles Bigger Than 1 Micron

*  Humidity : ≤ 100%Rh

*  Arrestance ： 90% Down to 10 Microns

*  OEM Service :  Acceptable

*  Color: White

*  Certification : ISO9001, ISO/TS 16949

Application:

1) Exhaust gas filtering and paint mist collection in spray booth exhaust system.
2) Dust removal in painting equipment, equipment, painting system and painting wokshop.
3) Pre-filtering for paint mist and oil mist type exhaust gas purification device.

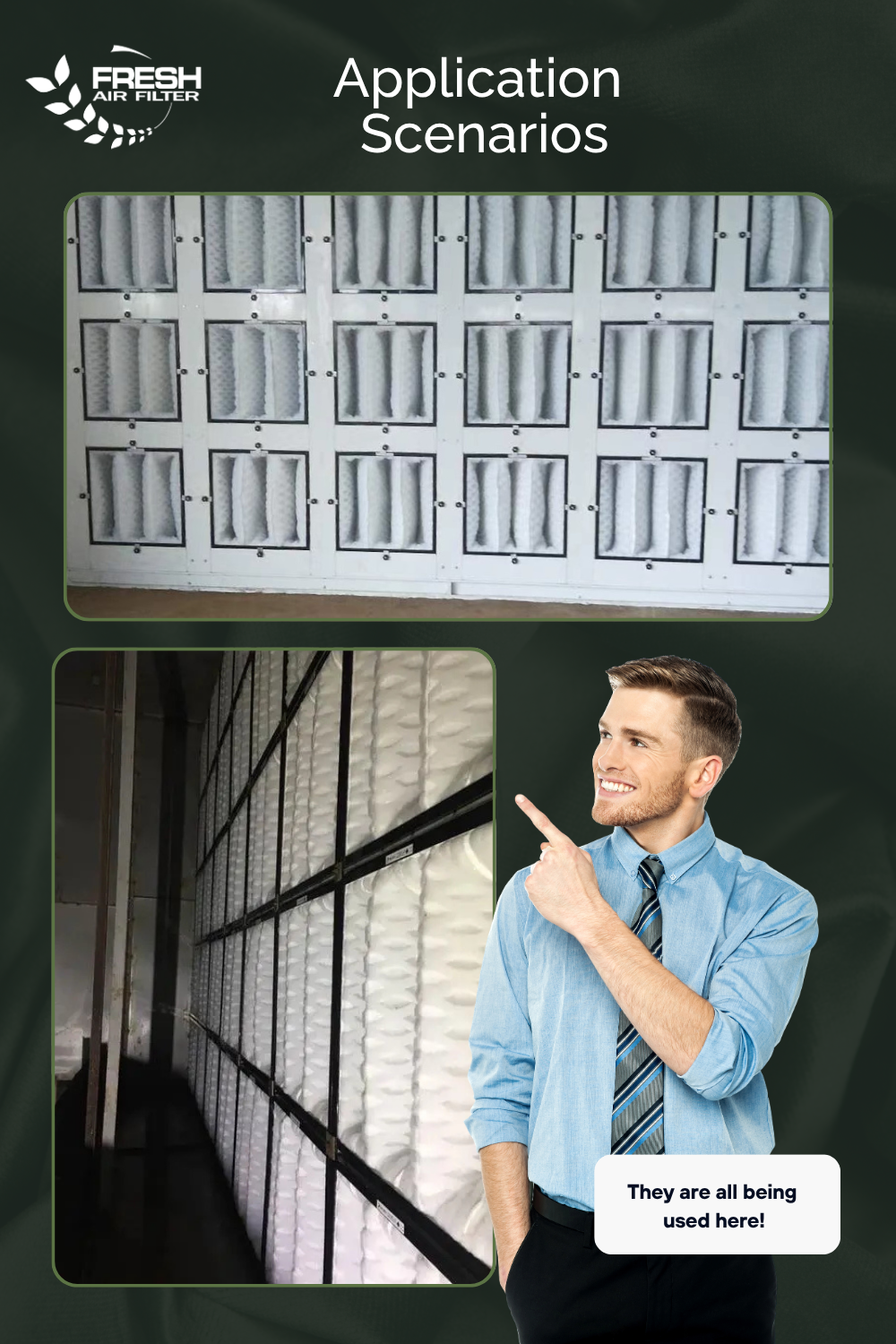

Application Scenarios.png
