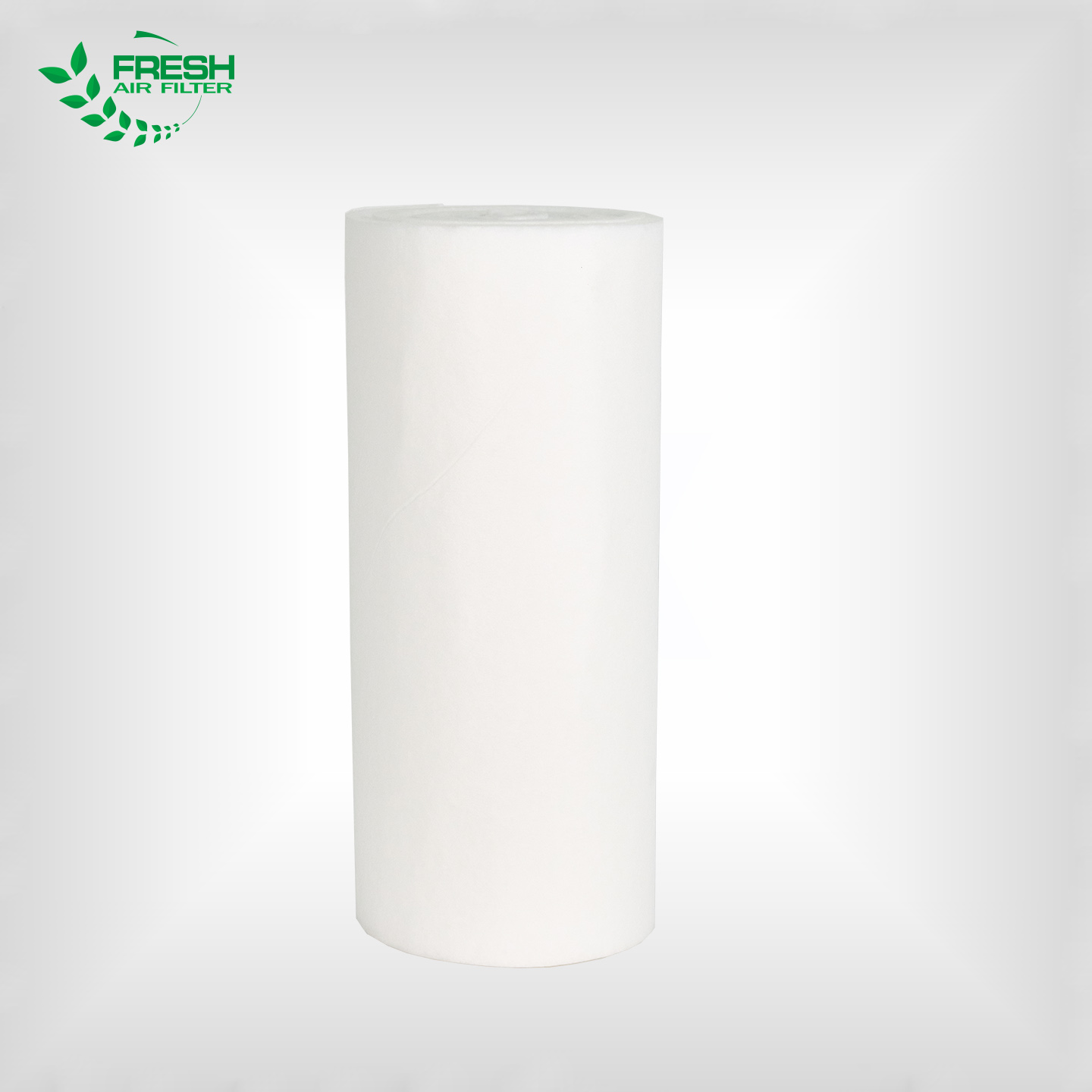

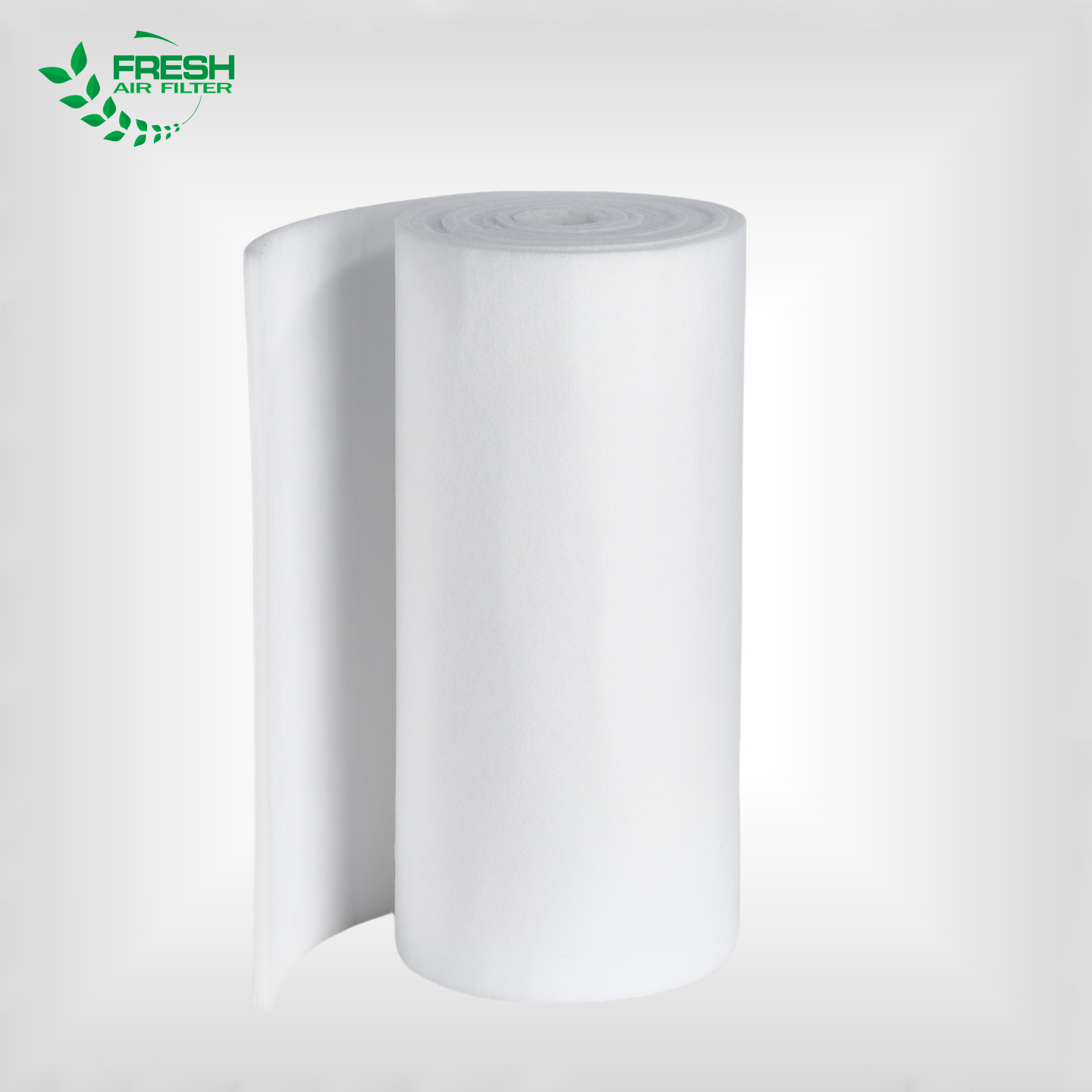

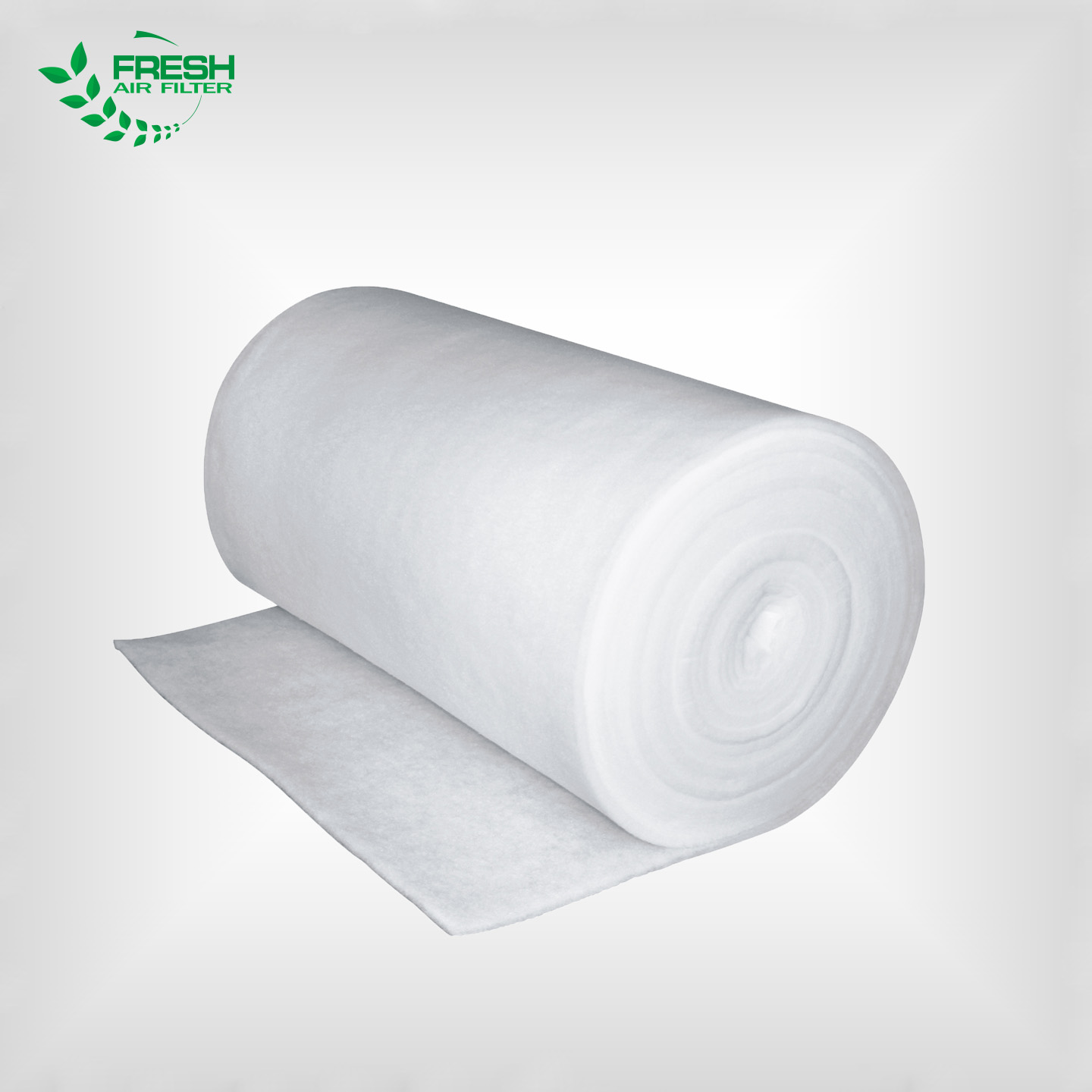

Automatic Roll Filter Media for Ventilation & Dust Removal Pre-filter

Main Material:  Polyester Fiber (PET)
Color: White
Filtration Class:  G2、 G3、 G4
Sales Models: Wholesale
Min Order Quantity: 500 Sqm
Availability:
Quantity:
  • FRS-ARC-20

  • Fresh

  • 5601229000

Features

  1. Flexible & fracture-resistant with high elasticity and low initial airflow resistance.

  2. Gradually densified fiber structure enables stratified filtration.

  3. High dust holding capacity, stable performance and long service life.

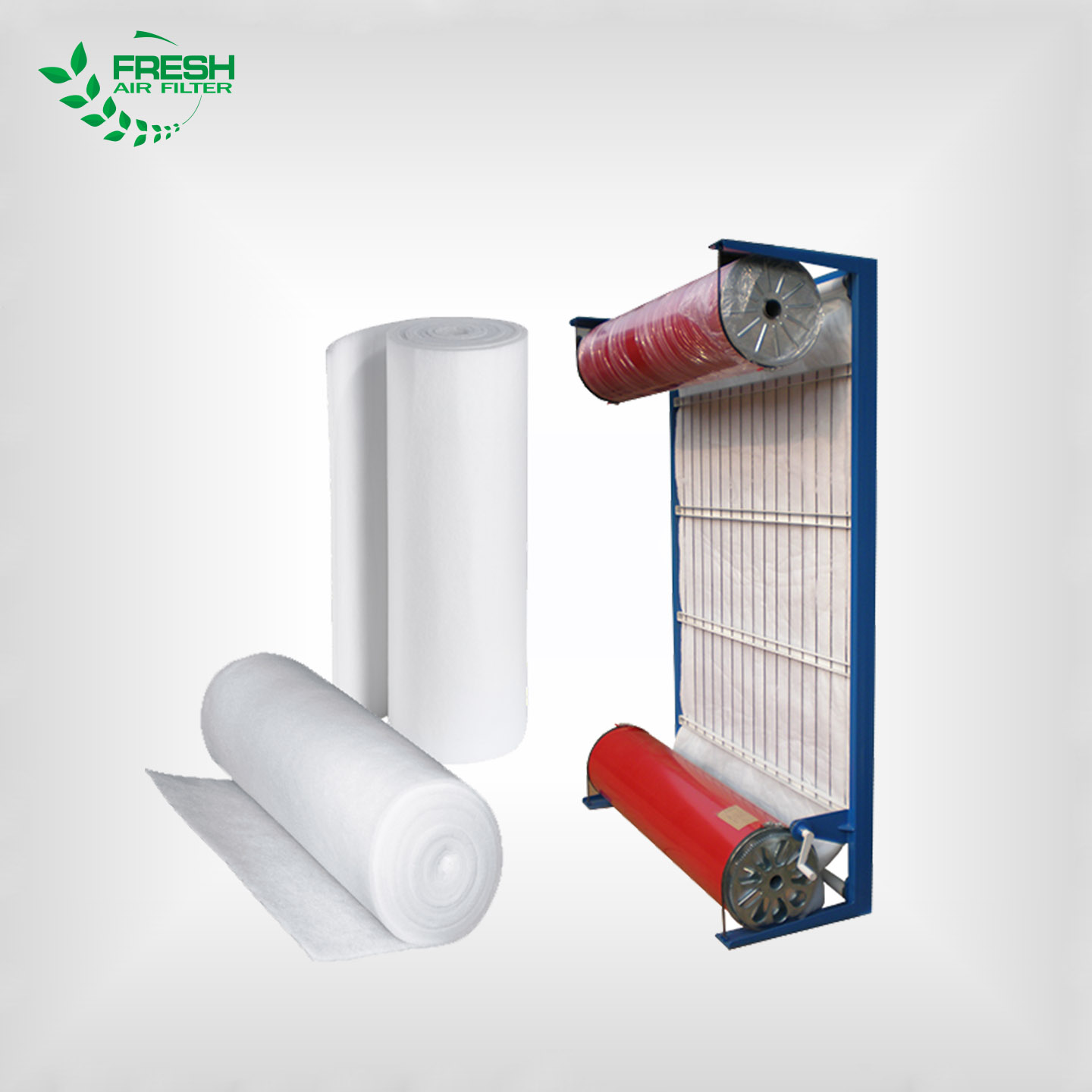

  4. Supplied in roll form (custom cut pads available), ideal for automatic roll filter units and panel filter inner media.

  5. Offers moderate corrosion resistance against common solvents, weak acids and weak bases.

  6. Cost-effective. With glue spraying treatment, it can be reused after shaking, washing or backblowing.

Application

Suitable for pre-filtration in ventilation, air conditioning and dust removal systems.

  1. Pre-dust removal for ventilation and air-conditioning systems.

  2. Protective filter media for electromechanical equipment and machine rooms.

  3. Pre-filtration for high-grade spray systems and air supply of baking ovens.

  4. Primary raw material for manufacturing air filters.

Technical Parameters

Main Material:

Polyester fiber (PET)

Flammability Rating:

F1(DIN 53438)/B1(GB/T 17591-2006)

Filtration Class:

G2、G3、G4 (EN779)

Dust Holding Capacity:

600g/㎡

Filter Target:

Coarse dust and foreign matter≥5μm

Temperature Resistance:

≤100℃

Final Resistance:

250Pa (Suggestion)

Instantaneous temp resistance:

≤120℃

Average Weight Efficiency:

95%(ASHRAE52.1-1992)

Humidity Resistance:

≤100%RH

Specification

Model

Normal Size

L X W X T

GSM

Dust Holding Capacity

Rated Air Velocity

I.N.P

Rated Air Flow

Filter Class

m

m

mm

g/㎡

g/㎡

(m/s)

(Pa)

(m³/h)

ISO 16890

EN779:2012

FRS-ARC-20

20

1/2

20±2

180

600

1

≤30

3600

ISO coarse 75%

G4

Note: Other specification are available on request.
