Is your HVAC system secretly wasting energy right now? Procuring a top-tier filtration system is merely the first step. Securing the correct installation dimensions is what truly guarantees superior indoor air quality. When measurements are slightly off, systems suffer from bypass leaks, increased power expenditures, and premature media failure.
In this comprehensive guide, we will navigate the exact framing requirements and pocket depths necessary to ensure a flawless fit. By understanding these technical specifications, facility managers and procurement officers can eliminate airflow obstruction and maximize the lifespan of their commercial air handling units.
Before diving into granular technical details, you must grasp the fundamental principles of filter sizing. The following points summarize the most critical dimensional factors for proper installation. First, header frame precision is non-negotiable. The width and height must perfectly match the internal track of the HVAC holding frame. Second, pocket depth dictates total available surface area. This specific measurement directly impacts airflow capacity and initial pressure drop. Third, adequate downstream clearance within the air handling unit is mandatory. Without sufficient physical void behind the holding frame, synthetic bags will crash against cooling coils. Finally, high-capacity materials only perform to tested specifications if the dimensional fit allows individual pockets to inflate fully.
To truly appreciate the importance of rigorous installation measurements, one must first understand the operational parameters of an F9 pocket filter. Under the historical EN779 standard, an F9 classification indicates a high-efficiency fine filter capable of capturing up to 95 percent of sub-micron particles. In the current ISO 16890 standard, this correlates to a stringent ePM1 rating, meaning the media is highly effective at trapping particulate matter smaller than a single micrometer.
Because these units handle high-efficiency filtration, they are routinely deployed in critical environments like pharmaceutical cleanrooms, modern hospitals, laboratories, and high-end commercial office towers. In these heavily regulated settings, indoor air quality is scrutinized constantly. Air inherently follows the path of least resistance. If a frame is even two millimeters too small for its track, unfiltered air will bypass the media entirely. This leakage introduces dangerous contaminants into sterile zones and coats downstream coils with fine dust, rendering the high-efficiency media functionally useless.
In the commercial HVAC sector, pocket filters are universally categorized using three primary dimensions: Width, Height, and Depth. Recognizing how these measurements interact with the physical structure of your specific air handler is the foundational step in successful procurement.
The width and height correspond to the rigid outer edges of the header frame. This structural perimeter physically slides into the track or compresses against the gasketed holding frame. Industry standards dictate specific face dimensions to ensure compatibility across disparate equipment manufacturers. While the most common full-size face dimension is nominally referred to as 24 by 24 inches, the actual physical measurement is typically 592 by 592 mm. Differentiating between the nominal rough opening and the precise actual size is paramount to avoiding installation failures.
Unlike rigid panel filters or compact V-banks, the depth of a pocket filter refers strictly to the length of the synthetic bags when fully inflated by system airflow. Depth serves as a critical variable because it determines the total square footage of the filter media. Standard depths generally range from 381 mm up to 914 mm. While a longer bag provides more surface area to lower air resistance, the maximum allowable depth is strictly limited by the physical space available inside the cabinet.

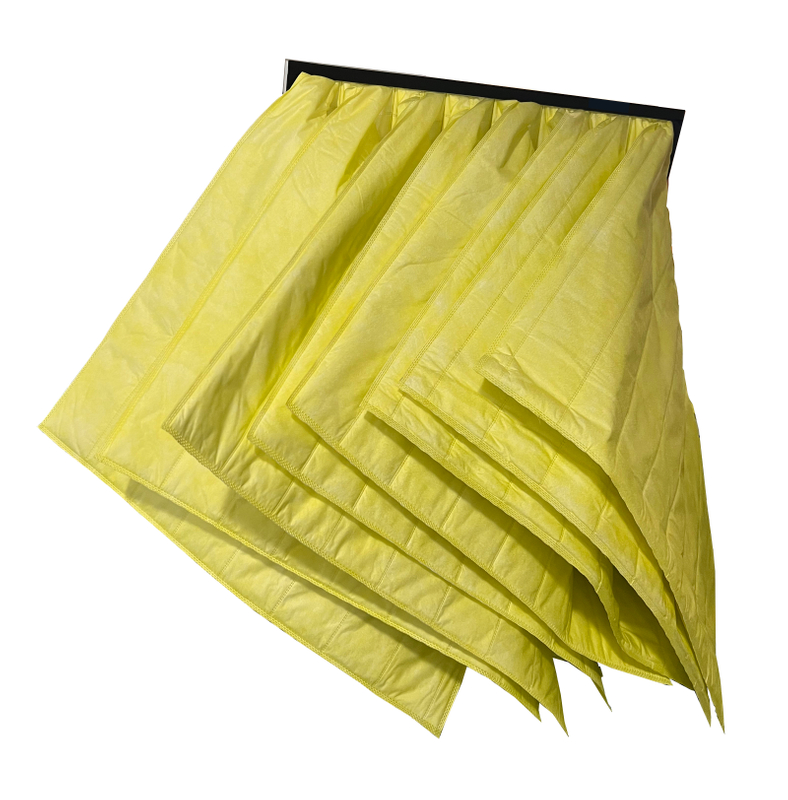

Although not a measurement in millimeters, the number of pockets is directly tied to face dimensions and total filtration area. For a standard 592 by 592 mm configuration, manufacturers typically offer variations of 6, 8, or 10 pockets. Packing more pockets into a standard header frame increases the filtration area. However, physical limits apply. If too many bags are crowded together, they fail to inflate properly, fluttering against each other and causing the initial pressure drop to spike.
The header frame acts as the structural foundation of the entire assembly. Its primary function is providing a rigid boundary that mates seamlessly with the HVAC holding frame. This dictates whether the subsequent installation will be airtight or compromised.
Specifically, header frames are manufactured in standardized thicknesses to match retaining clips or slide-in tracks. The most common global standard thicknesses are 21 mm and 25 mm. Imagine standing in a dimly lit mechanical room, attempting to wedge a 25 mm galvanized steel header into a 21 mm track. The resulting friction will likely bend the frame, destroying its structural integrity. Conversely, sliding a 21 mm frame into a 25 mm track leaves the unit loose. Continuous vibration from the heavy-duty fan will cause the filter to rattle, breaking the delicate seal and allowing dirty air to bypass.
To achieve a truly airtight seal, exact dimensions must align perfectly with the poured polyurethane gaskets or seamless neoprene strips on the holding frame. The rigidity of the frame material also affects dimensional stability. Plastic frames must be precisely molded, as they can warp if subjected to uneven pressure from improperly sized retaining clips.
Specifying the correct depth is arguably the most complex dimensional decision. It requires a delicate balance between aerodynamic needs and the unyielding physical constraints of the air handler.
Longer pockets directly equate to a higher volume of filter media. When utilizing advanced multi-layer pocket filter media, depth allows the various synthetic layers to function efficiently without premature blinding. For instance, a robust pre-filtration layer and a delicate fine melt-blown layer need adequate surface area to distribute the particulate load evenly. This significantly extends the operational life of the unit.
The physics of air filtration dictate that increasing surface area reduces the velocity of air passing through any given square inch. This lower media velocity yields a lower initial pressure drop. Consequently, the fan motor expends less energy, translating into measurable utility savings.
To make this actionable, here is a standard engineering reference table for sizing F9 filters based on common dimensions and airflow capacities:
Nominal Size (Inches) | Actual Frame Size (mm) | Pocket Depth (mm) | Number of Pockets | Rated Airflow (m³/h) | Initial Resistance (Pa) |
|---|---|---|---|---|---|
24 x 24 | 592 x 592 | 600 | 8 | 3400 | ≤ 120 |
24 x 20 | 592 x 490 | 600 | 6 | 2800 | ≤ 120 |
24 x 12 | 592 x 287 | 600 | 4 | 1700 | ≤ 120 |
24 x 24 | 592 x 592 | 900 | 8 | 4250 | ≤ 105 |
Furthermore, downstream clearance requirements represent a critical parameter that is frequently overlooked. If a maintenance team orders a 914 mm deep unit, but the cabinet only possesses 750 mm of clearance before the cooling coils, the installation will end in disaster. The tips of the bags will strike internal components and fold back on themselves. This folding blocks airflow and drastically increases system resistance.
Looking at recent shifts in commercial facility management, the focus on HVAC optimization has never been sharper. Driven by stricter post-pandemic indoor air quality guidelines and ambitious corporate sustainability mandates, building engineers are scrutinizing every single pascal of pressure drop. We are witnessing a notable transition away from careless filter procurement.
Current industry trends show facility directors increasingly demanding exact dimensional matching to eliminate bypass leakage entirely. As global energy costs soar, the financial penalty for an improperly fitted filter has elevated sizing from a routine maintenance afterthought to a board-level operational concern. When a poor fit forces fan motors into continuous overdrive to compensate for restricted airflow, the energy waste is massive. Precision is no longer a luxury; it is a regulatory and economic necessity.
To streamline procurement and routine maintenance, the commercial HVAC sector relies heavily on standardized dimensions. Standard sizes fit the vast majority of modern air handling units, offering predictable aerodynamic performance and significantly reduced replacement lead times.
Common standard dimensions include the ubiquitous 592 by 592 mm and the 592 by 287 mm configurations. Standard manufacturing practice applies a negative tolerance to these actual dimensions, usually minus 2 to 3 millimeters. This tiny variance does not negatively affect the filtration seal. The holding frame's gasketing material absorbs the minor difference, preventing the frame from getting stubbornly stuck during installation.
In contrast, older heritage buildings often feature unique, legacy air handlers that defy modern standardization. Specialized hospital isolation wards or compact microelectronics cleanrooms might demand highly unique pocket configurations. In these rigorous scenarios, opting for a custom high efficiency nonwoven pocket filter becomes absolutely necessary to guarantee a flawless seal and maintain environmental integrity.
Accurate measurement forms the bedrock of effective air filtration. Guessing dimensions based on old, warped frames inevitably leads to poor indoor air quality and spiked energy consumption. Facility teams should follow a standardized, objective procedure to capture exact data.
Safety must always remain the primary concern. Never attempt to measure a running air handling unit. The powerful suction can pull tools into the blower fan or cause severe physical injury. Turn off the power at the main electrical breaker and apply proper lockout procedures, waiting for all moving parts to come to a complete halt.
When measuring the holding frame, use a rigid metal tape measure rather than a flexible tailor's tape for precise results. Measure the exact internal width and height from the inside edges of the track. Subtract approximately 5 mm from the total opening size to calculate the correct actual size for your new header frame. Next, extend your tape measure straight back into the downstream section to determine the maximum allowable pocket length. Measure the distance to the nearest physical obstruction, typically a heating or cooling coil. Ensure your new filter's pocket depth is at least 50 mm shorter than this distance to allow for full, unhindered inflation.
Even armed with correct dimensions on paper, physical installation errors can rapidly negate the benefits of premium filtration media. Awareness of these common mechanical pitfalls is essential for any maintenance personnel.
Orientation is a critical factor that is routinely botched. The pockets must always be installed in a vertical position, meaning the seams run straight up and down. When installed vertically, the bags inflate evenly across the unit, remaining separated to allow air to flow through the entire media bed. Installing them horizontally is a severe mechanical mistake. Gravity causes the horizontal pockets to sag downward, resting heavily on top of one another. This effectively reduces the usable filter surface area by half, choking the system and wasting maintenance budgets.
Additionally, technicians must never use physical force to install a frame. If it does not slide in smoothly, the dimensions are incorrect. Forcing a slightly oversized frame into a tight track bends the metal, destroying its structural integrity and creating permanent gaps.
Finally, do not ignore pre-filter dimensions. Fine filters are rarely used as standalone units; they are usually paired with G4 pleated panels to capture large particulates. If both filters share a single holding track, you must calculate their combined thickness. Failing to account for this will result in a track that cannot close properly.
Precision in sizing is the ultimate determining factor in your filtration system's actual real-world effectiveness. Securing the correct dimensions prevents costly bypass leaks, protects delicate downstream equipment, and keeps energy consumption firmly in check. By accurately measuring width, height, depth, and frame thickness, facility managers can maximize both system efficiency and indoor air purity. When dealing with complex legacy systems or rigorous cleanroom environments, always consult with technical filtration experts to engineer the exact dimensions required for your specific operational needs.
If you are experiencing high pressure drops or suspect bypass leaks in your current setup, it is time to upgrade. Explore the comprehensive range of precision-engineered solutions at Fresh Air Filter to find the exact match for your commercial air handling unit, ensuring maximum airflow and uncompromising air quality.
No, you absolutely cannot alter the dimensions manually. Cutting the header frame destroys its structural integrity completely, making it impossible to secure in the HVAC track. Furthermore, trimming the synthetic media will sever the sealed seams, creating massive air leaks. The filter will immediately lose its high-efficiency rating, allowing contaminants to flood your system. You must always procure the exact correct size.
If the pockets are too long, they will hit the back of the air handling cabinet or strike the delicate cooling coils. This physical collision causes the fabric bags to fold back on themselves or tear open. Folded media blocks airflow, which drastically increases the system's air resistance, elevates the pressure drop, forces the fan motor to overwork, and significantly reduces the operational life of the unit.
Usually, they are not exactly as stated. Labels on commercial filters predominantly display nominal sizes, which are rounded numbers used for easy categorization. The actual physical size is typically a few millimeters smaller. This slight deliberate reduction allows the maintenance technician to slide the frame into the HVAC tracks easily without it getting stuck. Always verify the manufacturer's exact specification sheet before purchasing.
The number of pockets does not change the outer dimensions of the rigid header frame. The width and height remain exactly the same regardless of pocket count. However, adding more pockets means packing more synthetic media into the same physical space. You must ensure that your system's airflow capacity matches the filter design so that the bags have enough air volume to inflate properly without fluttering against each other.
An optimally sized unit operating at its rated airflow typically exhibits an initial pressure drop between 100 and 120 Pascals. If the dimensions are incorrect and the pockets are compressed, this initial resistance can spike to over 200 Pascals immediately upon installation, forcing the HVAC fan to consume significantly more electrical power.
Even with perfect dimensions, these units should generally be replaced when the final pressure drop reaches 450 Pascals, which typically occurs every four to six months in standard commercial environments. However, if improper sizing causes the frame to warp or the pockets to sag and touch, the media will blind prematurely, cutting the effective lifespan in half.
