The fundamental engineering conflict in commercial HVAC filtration is balancing the need for high-efficiency particulate capture against the energy penalty of increased air resistance. Facility managers and engineers constantly evaluate how to remove microscopic contaminants from the airstream without forcing supply fans to work harder. Traditional flat or shallow-pleated filters offer limited surface area within standard air handler dimensions. This limitation forces air through a small cross-section of media at high velocity, leading to rapid dust loading, premature clogging, frequent maintenance cycles, and elevated fan energy consumption.
To resolve this bottleneck without altering the physical footprint of the air handling unit, engineers utilize three-dimensional extension. Expanding the media depth fundamentally changes how air interacts with the filtration surface. This guide examines the geometric and aerodynamic principles behind the extended surface design, detailing how its structure exponentially increases effective filtration area and evaluating the operational trade-offs of implementation.

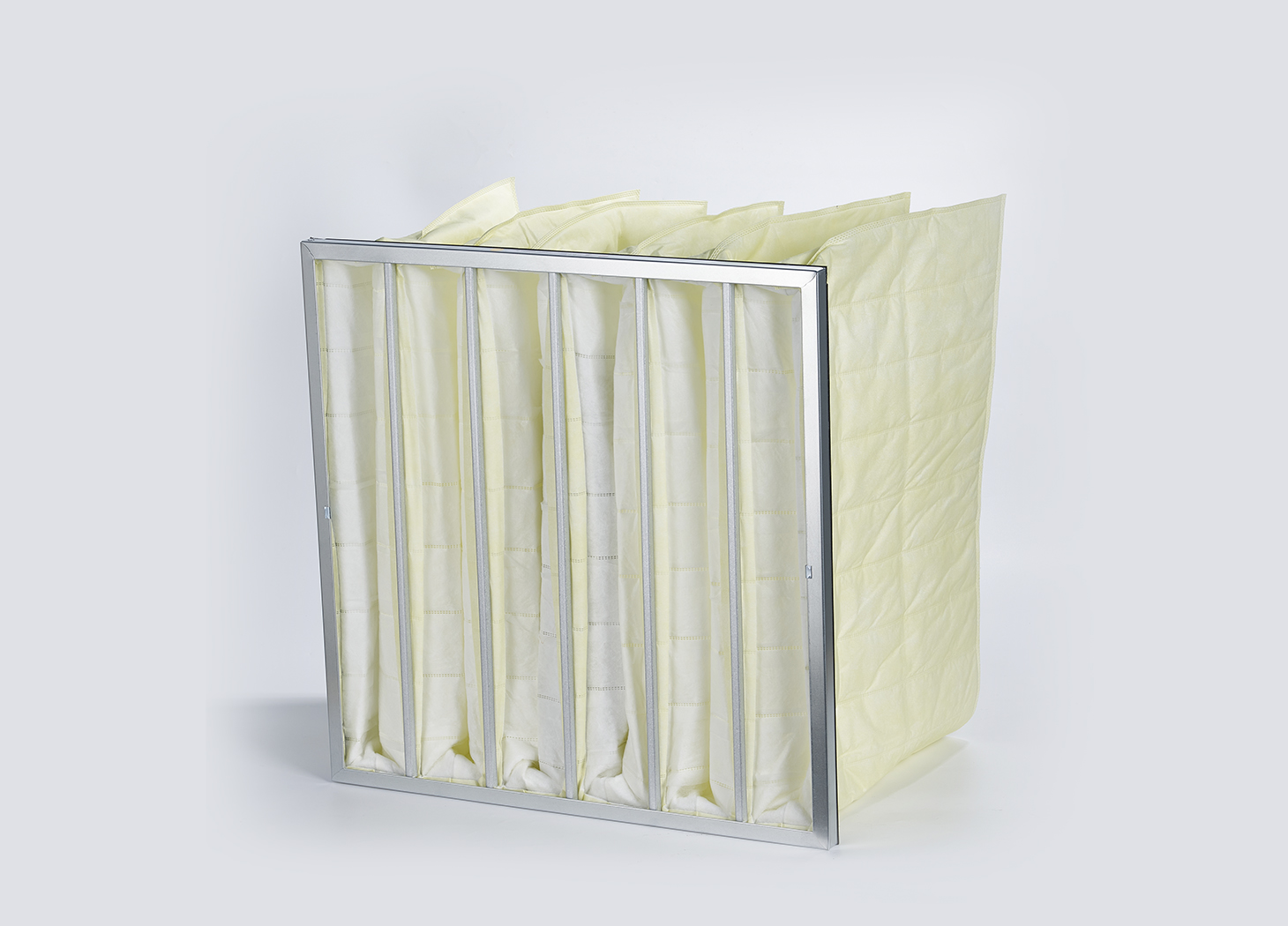

Geometric Expansion: Pocket filters utilize depth rather than facial dimensions, expanding the effective filtration surface area by up to 10–15 times compared to a flat panel filter in the same 24"x24" frame.
Velocity Reduction: By distributing airflow across a vastly larger surface, the media velocity decreases, which improves particulate capture efficiency and significantly lowers initial and sustained pressure drop.
Material Advancements: Modern nonwoven pocket filter designs and synthetic pocket filter media provide structural integrity that prevents pocket collapse, ensuring the expanded surface area remains fully utilized even under variable airflow.
Standard air handling unit frames severely restrict the frontal area available for filtration. Upgrading efficiency on a flat surface restricts airflow to unacceptable levels for most commercial systems. When you attempt to push the same volume of air through a denser flat filter, the resistance spikes. This pressure drop forces fans to consume more energy to maintain adequate building ventilation. Extending the filter media backward into the airstream breaks the limitation of the two-dimensional frame. Standard depths range from 12 to 36 inches. This three-dimensional geometry allows a massive amount of media to be folded and secured within a standard header.
The mathematical difference in surface area is substantial. A standard 24"x24" flat filter provides exactly 4 square feet of media. A multi-pocket filter of the exact same frontal dimension often yields 40 to 90 square feet of media, depending on the pocket count, depth, and volumetric perimeter expansion. The aerodynamic function of these extended chambers is critical to their performance. As air enters the unit, the pockets inflate, creating a "V-Bank" profile. This inflation channels air evenly across the entire depth of the media, preventing localized blinding at the entry point. Proper inflation ensures that the entire expanded surface area actively participates in the filtration process.
Expanding the surface area directly decreases local face velocity. Slowing down the air within the pockets increases the dwell time of particulates within the media fibers. This extended dwell time enhances the diffusion and interception capture mechanisms, which are highly dependent on lower velocities to trap fine PM2.5 and sub-micron particles effectively. When air moves too quickly through a high-efficiency media, smaller particles can literally bounce off the fibers or navigate the interstitial spaces without being captured. By dropping the face velocity from 500 feet per minute down to a fraction of that within the pocket structure, the mechanical capture efficiency rises dramatically.
Filter Type (24x24 Frame) | Media Depth | Effective Surface Area | Typical Face Velocity Impact |
|---|---|---|---|
Standard Flat Panel | 1 - 2 inches | 4 sq. ft. | High localized velocity |
Pleated Panel | 2 - 4 inches | 12 - 18 sq. ft. | Moderate localized velocity |
Extended Pocket Filter | 12 - 36 inches | 40 - 90 sq. ft. | Low localized velocity |
The performance of the expanded surface area relies entirely on the media's ability to maintain its structure and capture efficiency. If the material collapses or tears under airflow stress, the geometric advantages disappear. Engineers must evaluate the composition of the media to ensure it can withstand the specific environmental demands of the HVAC system. Analyzing the layered construction of a nonwoven pocket filter reveals a highly engineered gradient density. These filters typically utilize a coarse pre-filter layer, a dense meltblown capture layer, and a robust spunbond backing.
This gradient density captures larger particles on the surface while trapping fine particulate deeper in the media. Distributing the dust load throughout the depth of the material maximizes the utility of the expanded area and prevents premature surface blinding. Traditional single-stage filters often let sub-micron particles pass right through the initial fiber matrix. In contrast, multi-layered synthetic pocket filter media captures progressive sizes across different depths. The fractional efficiency remains high because the varying fiber diameters target specific particle size distributions, from large pollen grains down to microscopic combustion aerosols.
Pre-Filter Layer: Captures large debris, lint, and heavy dust, protecting the inner layers from rapid blinding.
Meltblown Capture Layer: The core filtration zone where fine sub-micron particles are trapped via interception and diffusion.
Spunbond Backing: Provides the necessary tensile strength to prevent the media from tearing under high static pressure.

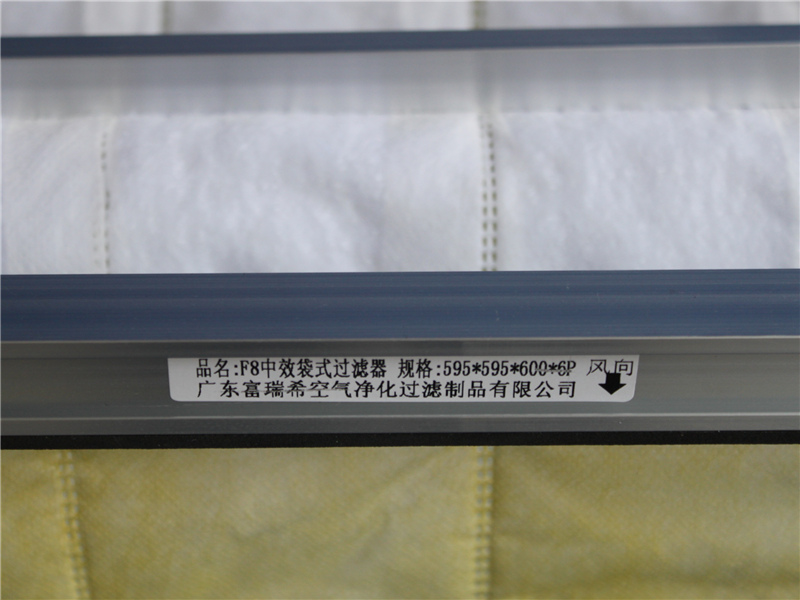

Durability separates modern synthetic materials from traditional fiberglass options. Synthetic media demonstrates exceptional resistance to moisture, preventing the degradation and microbial growth that can plague damp fiberglass. Furthermore, synthetic materials possess high mechanical strength. They do not shed microfibers into the clean airstream and can easily withstand rough handling during installation or maintenance routines. Structural enhancements are necessary to keep the expanded surface area functional. Internal sonic stitching, aerodynamic spacers, and rigid header frames maintain pocket separation. If adjacent pockets touch, the airflow is blocked, and the effective surface area is neutralized. Spacers ensure continuous, unobstructed airflow between every pocket, allowing the filter to operate at its designed capacity.
The physical increase in square footage directly impacts core HVAC performance metrics. Understanding how geometric expansion translates to operational outcomes helps facility teams optimize their maintenance schedules and energy consumption. A larger surface area inherently holds a larger mass of particulate before reaching the terminal pressure drop. This metric, known as Dust Holding Capacity, dictates the lifespan of the filter. By distributing the dirt across 80 square feet instead of 4 square feet, the filter takes significantly longer to clog. This extends change-out intervals from a few months to potentially over a year, drastically reducing labor hours and disposal volumes.
There is an inverse relationship between filter surface area and media velocity. Lower velocity through the media results in less aerodynamic resistance. When resistance remains low, Variable Frequency Drive fans do not have to ramp up aggressively to push air through the system. The energy savings achieved by operating fans at lower speeds often justify the upgrade to extended-surface filtration. A larger surface area also prevents rapid cake build-up. When dust forms a thick cake on a small filter, it creates localized high-velocity zones that can force smaller particles through the media. By spreading the particulate load over a vast area, the filter maintains a more consistent efficiency rating throughout its entire operational life, ensuring steady indoor air quality.
Performance Metric | Standard Flat Filter | Extended Pocket Filter |
|---|---|---|
Dust Holding Capacity | Low (Requires frequent changes) | High (Extended service life) |
Initial Pressure Drop | Moderate to High | Low |
Fan Energy Demand | Increases rapidly as filter loads | Remains stable over a longer period |
Maintenance Frequency | Every 1-3 months | Every 6-12 months |
Assessing trade-offs between different extended-surface solutions requires a clear understanding of system constraints and airflow dynamics. Not all high-capacity filters perform identically across different HVAC configurations. Industry terminology often causes confusion. While frequently used interchangeably in HVAC applications, there is a technical distinction between HVAC pocket or bag filters and industrial dust collector bags. HVAC versions are designed for high-volume, low-pressure environments to capture ambient particulate. Industrial liquid or dust collector bags handle extreme particulate loads and high-pressure pneumatic conveying systems.
When comparing pocket designs to rigid V-Bank filters, several factors emerge. Flexible media filters are much lighter and easier to store or transport than bulky rigid plastic or metal V-banks. Flexible extended-surface filters generally offer a lower initial purchase price than rigid cell filters, making them attractive for large-scale facility upgrades. Rigid filters perform better in highly turbulent or strictly Variable Air Volume systems where flexible media might flutter or collapse under shifting pressures.
Comparing these designs to deep pleated box filters highlights differences in aerodynamic drag. Inflated pockets often provide smoother airflow transitions than densely packed deep pleats. However, deep pleats may be required in mechanical rooms where the physical depth behind the filter track is severely constrained, preventing the use of a 36-inch extended pocket. Facility managers must measure the exact clearance between the filter bank and the downstream cooling coils to ensure the pockets will not abrade against the metal fins during operation.
Practical constraints dictate whether a facility can successfully retrofit or specify extended-surface filtration. Facility managers must evaluate their existing infrastructure to avoid performance failures. Variable Air Volume systems present specific challenges. There is a risk of pocket sagging or deflation when airflow drops during low-demand periods. Sagging media can rest on the air handler floor, absorbing moisture and dirt. When fans ramp back up, the media can snap violently, risking tears and bypass.
To mitigate this, specify soft-pocket filters with rigid internal supports or select optimized pocket lengths tailored to the minimum airflow velocity of the system. Specifying the correct pocket count and depth ensures proper inflation at low airflow rates. If a filter has too many pockets for the available air volume, they will not inflate fully, leading to bypass and performance drop-offs. Matching the geometry to the system's specific cubic feet per minute output is essential.
Measure Downstream Clearance: Ensure there is at least 2 to 4 inches of free space between the fully inflated pocket tip and any downstream components like coils or fan housings.
Verify Track Compatibility: Confirm that the existing filter holding frames (standard 7/8" or 1-1/8" tracks) can securely clamp the header without allowing air bypass.
Assess Airflow Profiles: For VAV systems, calculate the minimum airflow state to ensure the selected pocket count will remain adequately inflated during low-demand periods.
Select Appropriate Media: Choose synthetic media for environments with high humidity to prevent structural degradation and microbial growth.
Space and clearance constraints are absolute limiters. Extended media requires unobstructed depth downstream. Measuring the distance to cooling coils, fan housings, or access doors is mandatory. If inflated media abrades against internal components, it will rupture, releasing captured contaminants back into the supply air. Ensure the existing filter holding frames can securely gasket and hold the header without bypass leakage. Standard 7/8" or 1-1/8" tracks must clamp tightly against the filter frame. Any gap between the header and the track negates the high-efficiency media, allowing dirty air to bypass the system entirely.
The Pocket Air Filter remains one of the most effective methods for maximizing filtration surface area without modifying existing air handler infrastructure. By directly translating geometric depth into lower pressure drops, facilities can achieve significant energy savings and extended maintenance intervals. Specify these extended-surface filters when upgrading to MERV 11-15 efficiencies in systems with adequate downstream clearance and steady airflow. Prioritize synthetic media for high-moisture environments and layered nonwoven designs for optimal gradient dust loading.
Conduct a physical audit of your air handler filter track depth and measure the exact downstream clearance to the cooling coils.
Calculate current fan energy consumption and filter replacement frequency to establish a baseline for performance improvements.
Inspect existing filter holding frames to ensure they can securely clamp a standard header without allowing air bypass.
Consult with a filtration engineer to model the operational impact of transitioning to an extended-depth system based on your specific CFM requirements.
A: Depth directly increases the total square footage of the filter media. A deeper filter provides more surface area, which lowers the air velocity through the material. This reduction in velocity improves particle capture efficiency, lowers airflow resistance, and significantly increases the amount of dust the filter can hold before requiring replacement.
A: In commercial HVAC, the terms are often used interchangeably to describe multi-chambered extended surface filters. However, in broader industrial terms, bag filters usually refer to heavy-duty cylindrical tubes used in dust collectors or liquid filtration, whereas pocket filters refer specifically to the V-shaped multi-chamber designs used for ambient air purification.
A: Yes, but with caution. In VAV systems, airflow fluctuates. When airflow drops, standard pockets may deflate and sag, potentially tearing when the fan ramps back up. To prevent this, use filters designed with internal rigid supports or aerodynamic spacers that keep the media structurally stable regardless of airflow changes.
A: Synthetic media is highly durable and moisture-resistant. Unlike fiberglass, it does not support microbial growth when exposed to damp conditions. It also possesses high mechanical strength, meaning it won't shed microfibers into the airstream and can withstand rough handling during installation without tearing or losing its structural integrity.
A: Manufacturers use internal sonic stitching and aerodynamic spacers to maintain strict separation between adjacent chambers. These structural enhancements force the media to hold a specific V-shape when inflated, ensuring that air can flow continuously between every section without the material collapsing onto itself.
A: Yes. Pushing air through a small surface area creates high resistance, forcing fan motors to work harder. By expanding the surface area, the air encounters less resistance per square inch. This lower pressure drop allows variable speed fans to operate at lower, more energy-efficient speeds while delivering the same volume of air.
A: If properly sized, they perform exceptionally well by providing maximum dwell time for particle capture. However, if a filter is oversized with too many deep pockets for a low-airflow system, the pockets may fail to inflate completely. This partial deflation reduces the effective surface area and can lead to uneven dust loading.
