Picture this. You are in the middle of a critical, high-volume production run. Suddenly, the booth pressure begins to fluctuate wildly. The manometer spikes, and airflow drops. The culprit is almost always a prematurely clogged surface layer on your exhaust media. Are you tired of constantly interrupting workflows to change out choked pads? This familiar scenario causes expensive downtime. Worse, it fundamentally ruins your airflow dynamics and compromises finish quality.
Standard uniform-density media clogs incredibly fast right at the uppermost surface. This face-loading effect drastically reduces operational lifespan and overall capture efficiency. In contrast, upgrading to a scientifically engineered spray booth floor filter utilizing progressive density can completely transform your maintenance schedule.
This guide breaks down the fluid dynamics behind advanced filtration media from an engineering perspective. You will discover exactly how depth-loading architecture exponentially increases particulate holding capacity, protecting your downstream equipment and your bottom line.
Progressive density utilizes a scientifically engineered multi-layered structure. The media is loose at the air-entry point and becomes increasingly dense toward the exhaust side, allowing it to trap paint particles throughout its entire depth.
This specific depth-loading mechanism exponentially increases the internal paint holding capacity. It measurably reduces the frequency of required maintenance and filter replacements.
Implementing a fiberglass matrix provides the ideal structural integrity for progressive density. It offers high particulate capture efficiency while maintaining a crucial low initial pressure drop.
For industrial high-volume coating operations, upgrading to a pocket-style filtration system combines progressive density with an extended surface area for maximum overspray capture.
Proper orientation during installation is a critical operational requirement. Installing a progressive density filter backward will initiate immediate surface clogging and negate all structural benefits.
Modern coating technologies are evolving rapidly. Recent industry analyses show a massive shift toward waterborne and high-solids coatings across the automotive and industrial sectors. These environmentally friendly paints remain tacky longer and possess higher moisture content. Consequently, they blind standard single-layer filters much faster than traditional solvent-based paints.
Furthermore, regulatory bodies are enforcing stricter emission limits on volatile organic compounds and particulate matter. Facilities can no longer afford to vent untreated overspray. To maintain compliance without sacrificing production throughput, modern finishing facilities are abandoning cheap surface-loading pads. The industry standard has definitively shifted toward high-efficiency, multi-stage depth filtration designed specifically to handle heavy, wet particulate loads.
Before diving into the microscopic behavior of airborne particles, we must establish the baseline mechanical functions of the spray booth environment. Filtration is never merely an accessory. Rather, it is the primary regulatory mechanism for the entire system's airflow and environmental compliance.
In downdraft and semi-downdraft configurations, the primary airflow is introduced through the ceiling plenum and pulled downward over the object being coated. As the atomized paint leaves the spray gun, a significant percentage of the material inevitably fails to adhere to the target surface. This airborne particulate is universally known as overspray.
Located directly beneath the heavy steel grates, the exhaust media acts as the critical primary barrier. Its main function is to arrest wet aerosolized paint overspray before it can travel deeper into the exhaust plenum. If left unchecked, this overspray will accumulate on the exhaust fan blades or be discharged into the outside atmosphere. By capturing these sticky solids, the filter ensures the exhaust air remains clean. This maintains the delicate balance of negative or positive pressure required for flawless paint application.
Utilizing low-capacity uniform-density pads introduces severe operational and financial risks to a finishing facility. When media fails to perform adequately, the consequences cascade rapidly through the entire mechanical system.
Exhaust Fan Degradation: When substandard filters allow overspray bypass, wet paint accumulates heavily on the exhaust fan blades. This sticky buildup causes severe rotational imbalance. It leads to premature bearing failure, excessive motor vibration, and eventual catastrophic burnout.
Environmental and Safety Compliance: Regulatory bodies mandate strict limits on emissions. Inadequate filtration frequently leads to compliance violations. This results in substantial financial penalties or forced facility shutdowns. Additionally, paint buildup in exhaust ducts creates a severe fire hazard.
Compromised Finish Quality: As inferior materials clog rapidly, they create significant airflow resistance. This sudden restriction alters the static pressure inside the booth, causing aggressive turbulence. Consequently, this turbulent air kicks up settled dust and debris. The dirt inevitably lands on wet paint, resulting in a flawed finish that requires costly sanding and reworking.
The evolution of spray booth filtration relies heavily on advancements in material science and fluid dynamics. The most significant leap forward in this field is the transition from uniform-density media to progressive density architecture.
To truly appreciate progressive density, one must first analyze how standard filters fail.
Surface Loading The Problem: Traditional filters feature a consistent tight weave from top to bottom. When overspray hits this material, the vast majority of the paint particles are trapped immediately on the uppermost layer. Known as face-loading, this phenomenon quickly forms a solid impenetrable crust on the surface. While the lower layers of the pad remain completely clean and unused, that top crust blocks airflow entirely. This renders the product useless and forces an immediate replacement.
Depth Loading The Solution: Progressive density is a brilliant structural design that actively prevents face-loading. In this advanced configuration, the fibers are woven very loosely on the air-entry side. As the air travels deeper into the pad, the fiber matrix becomes progressively tighter and denser. It culminates in a highly compact layer on the air-exit side. This graded structure facilitates true depth loading.
Performance Metric | Standard Uniform-Density Filter | Progressive Density Filter |
|---|---|---|
Loading Mechanism | Face-loading. Particles trap entirely on the top surface. | Depth-loading. Particles penetrate and trap throughout the matrix. |
Paint Holding Capacity | Very low. Closes off quickly. | Exceptionally high. Holds up to 3 to 5 kg per square meter. |
Airflow Resistance | Spikes rapidly after initial use. | Increases gradually, maintaining booth pressure balance. |
Maintenance Frequency | High. Requires constant change-outs. | Low. Lasts 2 to 3 times longer than standard pads. |
The mechanics of progressive density directly correlate to maximum holding capacity. When the exhaust fan pulls overspray-laden air into the pit, the varied density layers act as an intelligent multi-stage sorting system.
Loose Matrix: Large, heavy, and highly viscous paint droplets enter the filter first. Because the top fibers are widely spaced, these massive droplets adhere to the strands without blocking the surrounding air paths. As a result, air continues to flow freely around them.
Medium Matrix: As the air travels deeper into the core, medium-sized particles that successfully bypassed the top layer are intercepted by the increasingly dense fiber weave.
Dense Matrix: Finally, the finest aerosolized mists and microscopic dry dust particles reach the bottom layer. These tightly woven fibers act as the ultimate barrier. They capture the smallest particulate matter just before the air exits into the exhaust plenum.
By utilizing the entire three-dimensional volume of the media, progressive density technology can hold exponentially more grams of paint per square foot. This scientific approach ensures continuous unrestricted airflow even as the system nears maximum saturation.
While progressive density principles can be applied to various synthetic materials, fiberglass remains the dominant undisputed standard in the automotive and industrial finishing sectors. The inherent physical properties of spun glass make it uniquely suited for capturing wet sticky particulate matter in high-velocity environments.

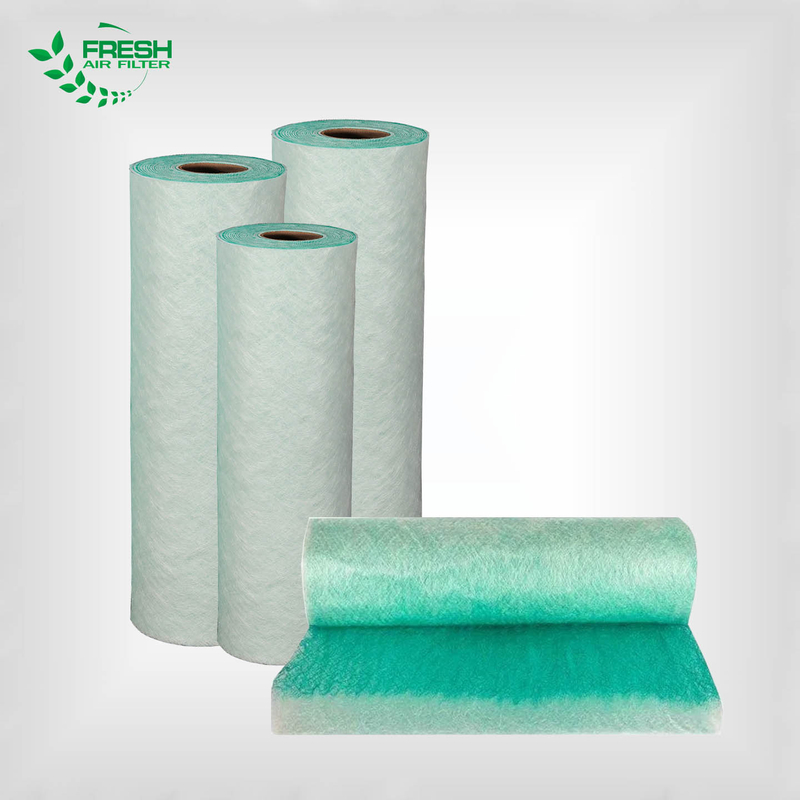

Fiberglass is manufactured by spinning molten glass into fine continuous filaments. When engineered into a progressive density fiberglass paint arrestor filter, these resilient filaments create a highly robust matrix. Premium options like the PA-50 and PA-100 series are specifically designed to leverage this material strength.
The primary advantage of this material is its structural rigidity and loft. Unlike standard polyester or paper alternatives, which tend to compress or collapse under the heavy weight of wet paint and the forceful pull of the exhaust fan, fiberglass maintains its three-dimensional shape. This non-compressible nature is absolutely vital. If a pad compresses, the internal air pathways pinch closed, and the progressive density effect is instantly ruined. Spun glass ensures that the depth-loading pathways remain wide open until the pad is completely saturated. This maximizes the lifecycle of your investment.
In fluid dynamics, pressure drop dictates the decrease in air pressure across a filter network. A high initial pressure drop means your exhaust fan must work exceptionally hard right from the start just to pull clean air through a brand-new pad.
Fiberglass media excels specifically because it offers a remarkably low initial pressure drop. The loose upper layers allow high-velocity air to pass through with minimal initial resistance. As the pad slowly loads with paint, the progressive structure ensures that the pressure drop increases at a slow manageable rate rather than spiking suddenly. This steady airflow curve allows the booth to maintain its critical pressure balance for much longer durations.
While spun glass rolls are highly efficient for standard automotive body shops, certain industrial applications generate overspray volumes that simply exceed the physical capacity of flat media. For continuous manufacturing lines, aerospace coating, or heavy equipment painting, the filtration architecture must scale up significantly to prevent constant bottlenecks.
In high-production environments, downtime for maintenance translates directly to lost revenue. When flat media is no longer sufficient to maintain aggressive operational schedules, engineers typically implement the paint stop bag air filter. Advanced models like the DPA Bag Air Filter come equipped with dedicated mist capture functions, engineered specifically for rigorous industrial demands.
Also known as pocket filters, these heavy-duty units utilize the exact same progressive density principles but apply them to a vastly different physical geometry. Instead of laying flat across a floor grate, the synthetic media is sewn into elongated pockets or bags that extend downward deep into the exhaust pit.
The engineering brilliance of the pocketed design lies in its massive multiplication of surface area. A standard flat pad provides exactly one square foot of filtration for every square foot of floor grate. A multi-pocket bag system can provide up to five or six times the total filtration surface area within that exact same square foot of grate space.
When you combine the depth-loading capability of progressive fibers with the massive surface area of a pocketed design, the results are unparalleled. The extended surface area drastically reduces the face velocity of the air as it passes through the material. Lower velocity gives the fibers significantly more time to intercept and capture the finest aerosolized mists. This prevents mist bypass, thoroughly protects downstream secondary filters, and provides a holding capacity that can seamlessly sustain continuous multi-shift spraying operations.
For facility managers and auto body shop owners, exhaust media is often viewed merely as a recurring consumable expense. However, analyzing your filtration through the lens of operational efficiency reveals its direct undeniable correlation to overall profitability. Progressive density technology fundamentally alters the cost-to-performance ratio of your finishing operations.
The most immediate and quantifiable financial benefit is the drastic reduction in maintenance-related downtime. In a busy shop, every minute a booth sits idle for a change-out is a minute of lost revenue. Standard uniform pads suffer from rapid face-loading, necessitating frequent frustrating interruptions to the production schedule.
By upgrading to progressive density technology, facilities can effectively double or even triple their maintenance intervals. Because the material holds significantly more grams of paint per square foot before airflow is restricted, your technicians spend less time pulling up heavy steel floor grates. When calculating the hourly shop rate and the labor cost of maintenance personnel, reducing change-outs yields substantial annual savings.
Your primary exhaust media serves as the first line of defense for the rest of your expensive mechanical infrastructure. If a low-capacity pad fails, aerosolized paint travels directly into the ductwork.
The financial consequences of paint bypass are severe. Wet overspray disrupts the precise centrifugal balance of the exhaust fan impeller. This causes aggressive vibrations that rapidly degrade bearings and motor mounts. Replacing an industrial exhaust fan is a massive capital expense. High-capacity depth-loading materials trap these particulates effectively, safeguarding your downstream equipment.
Energy consumption is a closely monitored metric in modern manufacturing. Spray booths rely on powerful energy-hungry exhaust motors to maintain precise airflow.
As a standard pad face-loads, the resistance to airflow spikes dramatically. To maintain the required cubic feet per minute, the exhaust fan motor must work significantly harder, drawing substantially more amperage. Because progressive density filters maintain open airflow channels for a much longer duration, the pressure drop increases at a slow gradual rate. This allows your exhaust motors to operate at their optimal energy-efficient baseline for extended periods, resulting in noticeable reductions in monthly utility bills.
Understanding the science behind depth loading is only half the equation. Selecting the appropriate media grade and installing it correctly are critical practical steps. Different finishing applications generate different types of overspray, necessitating a tailored approach.
Progressive density materials are manufactured in various thicknesses and densities to accommodate specific industrial needs. Selecting the wrong grade can lead to premature clogging or inadequate capture efficiency. Look for industry-standard specifications to guide your choice.
60mm Thickness PA-50 Series: Features a highly porous loose weave designed for maximum airflow capability. It is optimal for heavy primers, high-solids paints, and thick industrial coatings where maintaining high air velocity is prioritized.
100mm Thickness PA-100 Series: Offers a thicker robust density and standard progressive weave. This is the industry standard for automotive collision repair shops spraying solvent-based basecoats and enamels. It provides an ideal balance of massive holding capacity and low air resistance.
High-Density Backing Models: Engineered with an extremely dense backing and a tighter progressive structure. These are highly recommended for waterborne paints, high-end clear coats, and aerospace environments. Because waterborne paints dry slower and remain tacky longer, this denser matrix prevents sticky particulate from migrating entirely through the pad.
The most common yet easily avoidable mistake made in routine booth maintenance is installing a progressive density pad backward. Because the engineering relies on a specific structural gradient, the product is strictly directional. If installed incorrectly, the entire scientific advantage is instantly negated.
Specifically, the loosely woven side must always face the airflow, pointing up toward the painter. Manufacturers typically dye this air-entry side a bright color, usually green or yellow, to serve as a foolproof visual indicator. Conversely, the dense tightly woven side must face down toward the exhaust grating.
If a technician inadvertently installs the pad upside down, the large wet paint droplets will immediately hit the tightest weave of the material. This causes instantaneous face-loading. The pad will seal over completely within a single paint job, blocking the airflow and potentially ruining the finish on the part being sprayed. Always train your staff to verify the color-coded orientation before securing the floor grates.
Progressive density technology fundamentally optimizes your entire paint booth performance. By utilizing the full depth of the media, it captures exponentially more paint, reduces maintenance downtime, and protects your expensive exhaust machinery.
Upgrading your filtration system is not just a maintenance task. It is a logical high-ROI business step. Take the time to evaluate your current change-out frequency today. If your standard pads are crusting over and clogging quickly, switching to depth-loading architecture will immediately resolve your airflow issues.
To ensure peak performance, source your materials from reliable manufacturers. Visit Fresh Air Filter to explore their comprehensive line of fiberglass paint arrestors and mist capture bag filters. Match the exact right solution to your specific coating application, protect your equipment, and improve your booth's airflow consistency starting now.
The replacement frequency is entirely dependent on your facility's production volume, the specific type of paint being sprayed, and the transfer efficiency of your spray guns. However, empirical data shows that progressive density media typically lasts two to three times longer than standard flat uniform pads. The most objective and accurate way to determine replacement time is by monitoring your booth's manometer or differential pressure gauge. When the static pressure drop exceeds the manufacturer's recommended limit, often around 0.5 to 1.0 inches of water column above the initial clean resistance, the material has reached its maximum holding capacity and must be replaced to prevent airflow degradation.
Progressive density materials are strictly directional. The loose colored side, which is usually dyed green or yellow depending on the manufacturer, must always face up toward the painter and the incoming airflow. This open weave captures the heavy overspray first. The dense white side, which sometimes features a slightly stiff skin-like texture, must face down toward the exhaust grating. Installing the pad upside down will cause immediate surface sealing and restrict your booth's airflow entirely.
While bag filters utilize the exact same highly effective progressive density science, they cannot simply be dropped into standard flat floor grates. Pocketed filters require specific mounting frames to hold the bags open and secure them against the strong pull of the exhaust fan. They are highly recommended for the vertical exhaust plenums of large crossdraft booths or the secondary filtration stages of downdraft pits. If you wish to transition from flat rolls to high-capacity bags, you will likely need to install a hardware adapter or specialized holding frames within your exhaust pit.
A high-quality progressive density fiberglass filter is engineered to offer very low initial resistance. Typically, a clean pad will register an initial pressure drop between 0.04 and 0.12 inches of water column, depending on the specific thickness and air velocity of the booth. This low starting resistance ensures your exhaust fan operates efficiently without strain during the early stages of the filter's lifecycle.
Progressive density stabilizes booth airflow over a much longer period compared to standard filters. Because the media absorbs paint throughout its entire depth rather than just on the surface, the air pathways remain open longer. This prevents sudden spikes in static pressure and eliminates the aggressive air turbulence that can kick up dust and ruin a fresh paint job. Your booth maintains a consistent downdraft velocity, ensuring a safer environment for the painter and a cleaner finish on the product.
Yes, depth-loading technology is highly effective for both chemical compositions. However, because waterborne paints dry differently, remaining tacky and wet for much longer periods rather than flashing off quickly like solvent-based paints, they can sometimes cause standard materials to clog faster. For waterborne applications, it is often recommended to use a slightly denser progressive weave or a heavier gram weight designed specifically to manage the unique drying characteristics and higher moisture content of waterborne overspray.
