A flawless, glass-like finish in a commercial paint cabin demands much more than a skilled technician and a premium spray gun. The real secret to a defect-free coat lies in the invisible environment surrounding the object. Air behavior dictates the final outcome. If the atmospheric flow inside the workspace becomes turbulent, overspray inevitably settles back onto wet surfaces. Microscopic dust contaminates the clear coat. The ultimate result is an inconsistent finish that requires hours of expensive polishing.
Recently, the automotive refinishing and industrial coating sectors have experienced a massive shift toward waterborne paints. These eco-friendly coatings are notoriously sensitive to humidity and require strict, uninterrupted airflow for proper flash-off times. Relying on outdated fiberglass pads is no longer a viable strategy. Modern facilities are rapidly adopting engineered synthetic media to maintain precise velocity control and meet increasingly stringent environmental mandates. High-grade filtration solutions step in here as the unsung backbone of daily operations.
How exactly does a layer of synthetic fabric dictate the complex aerodynamics of an industrial spray cabin? This guide breaks down the precise fluid dynamics behind overhead filtration from an engineering perspective. You will discover how chaotic intake drafts transform into smooth downward flows, what structural features define premium media, and how a data-driven maintenance routine can save your facility thousands of dollars in avoidable rework costs.
Air Diffusion is Essential: Overhead filtration acts as a massive aerodynamic diffuser. It intentionally slows down fast-moving drafts from intake fans and spreads the volume evenly across the upper plenum to establish a smooth, downward laminar flow.
Progressive Density Traps Dust: Premium filtration materials feature a progressively dense fiber structure combined with a sticky viscous resin. This unique architecture captures and holds microscopic dust particles deep within the core without instantly blinding the surface.
Pressure Equilibrium: Maintaining fresh overhead filters is critical for correct CFM balance. Saturated materials create an excessive pressure drop, resulting in chaotic air currents and swirling overspray.
Regulatory Compliance: Utilizing properly rated M5 materials helps facilities meet stringent environmental guidelines by guaranteeing efficient particulate capture rates and safe operating dynamics.
Data-Driven Maintenance: Facilities must schedule media replacements based on objective manometer pressure readings and exact operating hours rather than relying on highly inaccurate visual inspections.
Understanding how overhead filtration functions requires looking at the primary objective of a controlled finishing environment. The system is engineered to simultaneously push purified air over the coated object while aggressively pulling hazardous volatile organic compounds and atomized overspray away from the breathing zone of the painter. This delicate mechanical balance relies entirely on the physical barrier positioned at the very top of the cabin.
At its core, this highly specialized material is manufactured from thermally bonded synthetic polyester fibers. Unlike standard residential HVAC filters, these industrial-grade fibers are engineered to withstand extreme humidity fluctuations and harsh chemical exposures found in heavy-duty painting environments. The material is strategically secured inside the upper distribution chamber of a downdraft or semi-downdraft paint booth.
The color of the material serves as an intentional diagnostic feature. Utilizing white ceiling filter media provides a stark visual contrast. Technicians and facility managers can easily identify dark soot, dirt buildup, and potential contamination zones. In an industry where a single speck of airborne debris ruins a high-end automotive restoration, this visual baseline offers a helpful secondary inspection tool.
The structural layout of the cabin dictates how air navigates the workspace. In a true downdraft configuration, conditioned air enters through the upper plenum and is forced vertically downward. It eventually exits through grated exhaust pits in the floor. Semi-downdraft systems operate similarly at the intake stage, but the air travels diagonally toward the rear wall before exhausting.
In both setups, the ceiling acts as the primary gateway for incoming air. If the intake draft entered the cabin without a restrictive buffer, the high-velocity output from the air make-up unit would shoot straight down in a concentrated column. This localized jet stream would bounce aggressively off the floor, stir up settled debris, and completely obliterate the spray pattern of the gun.
The role of the overhead barrier extends far beyond basic particulate capture. In the realm of fluid dynamics, this material is classified as an air conditioner regarding flow characteristics. It fundamentally alters the physical behavior of the air entering the workspace.
Turbulent flow refers to air moving in irregular, chaotic fluctuations. Laminar flow describes air moving in parallel layers at a uniform speed and direction. For any surface coating application, laminar flow remains the ultimate goal. It ensures atomized paint droplets travel exactly where the technician aims them. Overspray is pushed directly into the exhaust system without swirling.
Air pushed aggressively into the plenum by heavy-duty intake fans is inherently turbulent. The dense, interwoven fibers of the filtration material act as thousands of microscopic baffles. As the chaotic air forces its way through these synthetic strands, the turbulence is systematically broken down. The air emerges from the underside in straight, controlled lines.
A critical aerodynamic concept in this environment is the diffusion effect. The overhead filter functions essentially as a massive restrictor plate. The densely packed fibers present a deliberate physical barrier that creates a calculated resistance within the upper plenum chamber. Engineers refer to this as backpressure.
Air inherently seeks the path of least resistance. The filter prevents the draft from rushing straight down immediately. This forces the incoming volume to spread horizontally across the entire ceiling. The pressure equalizes from corner to corner. Only after the air perfectly distributes across the entire surface area does it push evenly through the media.
Not all synthetic solutions perform equally under the rigorous demands of a commercial coating facility. The physical construction, chemical treatments, and structural integrity dictate the lifespan and aerodynamic consistency of the media. Understanding the engineering behind these materials helps facility managers make informed purchasing decisions based on technical specifications.
Standard, low-tier filters often suffer from surface loading. Dirt accumulates entirely on the outermost layer, creating an immediate, impenetrable barrier that chokes off airflow prematurely. Premium filters solve this through a progressive density structure.
During the manufacturing process, thermally bonded synthetic polyester fibers are layered strategically. On the air-entry side facing the plenum, the fibers feature an open weave that allows larger particles to penetrate deep into the material. Moving toward the exit side, the fibers become increasingly tightly packed. This depth-loading design ensures the entire thickness of the filter is utilized. It prevents rapid blinding and allows air to flow freely even as the media reaches maximum holding capacity.
Capturing microscopic dust is only half the battle. Retaining it under high-velocity conditions is equally important. Dry filters easily release trapped particles in a vibrating, high-pressure environment. Premium overhead filters are thoroughly impregnated with a specialized, non-drying resin commonly known as a tackifier.
This sticky coating is applied throughout the entire depth of the synthetic fibers. When microscopic dust particles navigate the maze of fibers, they eventually collide with a resin-coated strand. The tackifier instantly grips the particle and locks it in place. The formulation remains stable, never drying out or flaking off. Trapped dirt will not vibrate loose to ruin a freshly painted surface.
When evaluating performance, objective benchmarks separate standard media from premium industrial solutions. The European EN779 standard classifies filters based on specific capture efficiencies. For downdraft applications, an M5 or F5 rating is the globally recognized gold standard. Below is a technical comparison of two industry-leading specifications designed to handle different volume demands.

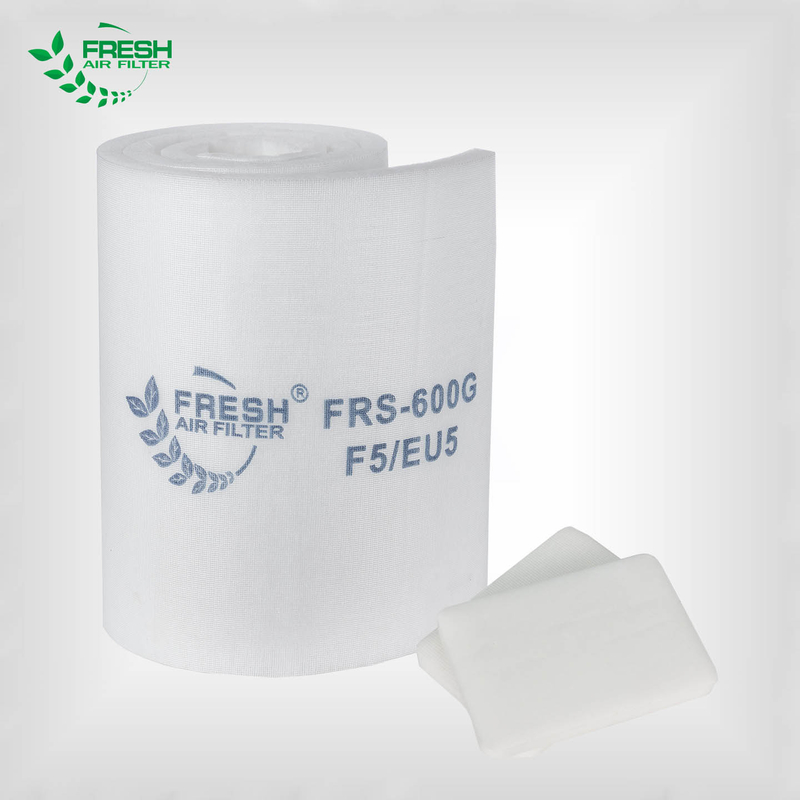

Technical Parameter | Standard F5 (e.g., FRS-600G) | Premium F5 (e.g., FRS-680G) |
|---|---|---|
Media Weight | 600 g/m² | 680 g/m² |
Dust Holding Capacity | 450 g/m² | 480 g/m² |
Initial Pressure Drop | ~25 Pa | ~30 Pa |
Final Pressure Drop | 400 Pa | 400 Pa |
Best Application | Standard auto refinishing | High-volume continuous coating |
Even the most advanced filtration materials possess a finite operational lifespan. When ceiling filters surpass their structural limits, airflow dynamics are the first variables to degrade. Recognizing the early symptoms of failure prevents costly rework and ensures a safe, breathable environment for technicians.
The most immediate sign of a failing overhead filter is a complete breakdown in laminar flow. When specific sections of the material become heavily loaded with particulate matter, incoming air can no longer pass through evenly. The draft takes the path of least resistance. It bypasses clogged sections and aggressively pushes through cleaner areas in concentrated jets.
This uneven distribution destroys the downward draft. Instead of overspray being gently guided toward the floor grates, turbulent air causes atomized paint particles to swirl chaotically around the object. Technicians will notice a persistent fog lingering in the cabin. Overspray settles on freshly painted surfaces, resulting in a rough, textured finish known as dry spray.
While subjective observations are helpful, objective data remains definitive. Professional finishing setups utilize a draft gauge or manometer to measure the pressure differential inside the cabin. This is typically displayed in inches of water column or Pascals.
A severely clogged ceiling filter restricts the volume of intake air. Because exhaust fans continue pulling air out at a constant rate, the restricted intake creates a dangerous negative pressure environment. When a booth drops into negative pressure, it acts exactly like a vacuum. It aggressively pulls unfiltered shop dust and sanding debris through door seams and unsealed joints. A steady spike in negative pressure on the manometer is a mathematical guarantee that the overhead filters are choking the system.
Selecting the appropriate media ensures your airflow remains consistent and compliant with specific daily operational demands. Different industries and booth configurations require targeted filtration strategies.
Facility managers must match the media weight to their production volume. High-volume auto refinishing operations demand flawless finishes. Utilizing premium, tackified M5-rated ceiling filter media is mandatory to eliminate micro-contaminants. Heavy industrial manufacturing prioritizes rapid coating application over mirror-like gloss. These operators might prioritize filters with an exceptionally durable scrim backing to prevent fiber tearing under extreme air velocity.
Choosing between pre-cut filter panels and bulk master rolls depends on facility size. Pre-cut pads are manufactured to the exact dimensions of the plenum frames. This ensures a rapid installation process and minimizes the risk of human error during sizing.
Bulk rolls offer a highly cost-effective solution for large operations operating multiple booths of varying sizes. Cutting from a roll requires meticulous precision. The most critical factor in maintaining even airflow is ensuring a perfect, airtight seal around the perimeter of the filter housing. If the material is cut even a fraction of an inch too small, air will bypass the media entirely.
In many regions, spray booth filtration is a strict legal requirement rather than a mere quality control measure. Environmental and occupational safety regulations mandate specific capture efficiencies for surface coating operations.
Using certified spray booth ceiling filter media helps facilities maintain the precise airflow dynamics required for exhaust filters to achieve their mandated capture efficiency. Proper overhead filtration ensures hazardous volatile organic compounds and toxic isocyanates are efficiently pushed toward the exhaust. This protects both the outside environment and the respiratory health of the technicians inside.
Keeping airflow perfectly even and laminar requires strict adherence to a data-driven replacement schedule. Waiting until a problem is visible on a client's vehicle means the filter failed long ago.
Relying solely on a visual inspection to determine filter health is a fundamentally flawed strategy. Because high-quality media utilizes a progressive density structure, the vast majority of dust and dirt remains trapped deep inside the core of the fibers. A filter that looks relatively bright and clean on the outside may actually be completely choked internally.
Facility managers should rigorously track operating hours. As a general industry benchmark, overhead filters require replacement every 600 to 1,200 operating hours. For a busy collision center running multiple shifts, this translates to a full replacement every four to six months.
The most accurate method for determining exactly when to replace a filter involves measuring the pressure drop across the media using the cabin's manometer. A brand-new filter has a baseline aerodynamic resistance known as the initial pressure drop. As the filter fills with dirt over weeks of use, air struggles to pass through. The pressure resistance climbs.
Filter manufacturers specify a final pressure drop limit. Once the manometer reading reaches this specific threshold, it indicates the filter is severely restricting airflow. It must be swapped out immediately to prevent negative cabin pressure.
Improper installation instantly ruins the effectiveness of brand-new media. Always power down all intake and exhaust fans and wear appropriate personal protective equipment. When removing saturated panels, carefully fold them inward upon themselves. This prevents trapped dust from shaking loose and falling onto the floor grates. Thoroughly vacuum the upper plenum chamber and wipe down the structural tracks to remove accumulated loose debris.
Orientation is critical during installation. The smooth, denser side reinforced with a woven scrim mesh backing must face down toward the floor of the booth. The softer, open-weave side must face upward toward the air intake to properly utilize the progressive density design. Ensure all edges are tightly secured in the tracks to seal any tiny gaps between adjacent pads.
Maintaining even, laminar airflow is the single most critical factor in achieving a professional, defect-free paint finish. Overhead filtration acts as a highly active air management tool. It diffuses aggressive intake drafts, eliminates aerodynamic turbulence, and perfectly balances cabin pressure.
Investing in premium synthetic media featuring progressive density and a viscous tackifier coating protects your pristine clear coats and your shop's bottom line. Replacing media based on accurate pressure drop readings rather than guesswork ensures consistent performance. Whether you operate a high-volume collision center or a custom fabrication shop, upgrading your filtration system is the most cost-effective way to guarantee flawless results. Explore the full range of high-performance products at Fresh Air Filter to find the exact engineering match for your facility's demands today.
On average, ceiling filters should be replaced every 600 to 1,200 operating hours. This roughly translates to every 6 to 12 months depending on your facility's daily volume. The most accurate way to determine replacement time is by monitoring your booth's manometer for an unacceptable pressure drop. Relying solely on visual inspections often leads to dangerously delayed replacements and compromised airflow.
No. Spray booth ceiling filters are meticulously treated with a special viscous tackifier designed to trap and permanently hold microscopic dust. Washing the filter completely destroys this chemical coating and ruins the delicate progressive density structure of the synthetic fibers. It will inevitably lead to severe dust contamination in your subsequent paint jobs. Always install fresh replacements.
The smooth, denser side reinforced with a woven scrim or mesh backing for structural support should face down toward the floor of the booth. The softer, more open-weave side should face upward toward the air intake plenum. This orientation ensures larger particles are caught first and properly utilizes the progressive density design.
Installing the media upside down completely disrupts the progressive density engineering. The dense scrim side will immediately block larger particles, causing rapid surface loading and blinding the filter prematurely. This severely restricts airflow, creates massive pressure drops, and forces trapped dust to blow out into the paint cabin.
High-quality synthetic polyester media is engineered to resist moisture absorption. Unlike cheaper paper or fiberglass alternatives that swell and restrict airflow in damp conditions, premium synthetic filters maintain their structural integrity and aerodynamic performance regardless of atmospheric moisture. This is absolutely crucial for modern facilities utilizing humidity-sensitive waterborne paints.
If your booth is pulling in outside dust, it is experiencing a negative pressure vacuum effect. Your exhaust fans are pulling out more air than your intake fans are pushing in. While new ceiling filters help allow intake air to flow freely, you may need to adjust your variable frequency drives, clean your intake ducts, or replace heavily clogged floor exhaust filters to properly balance the CFM.
M5 and F5 refer to the exact same filtration efficiency standard under the European EN779 guidelines. F5 is simply the older terminology that was recently updated to M5. Both designations indicate a fine filter capable of capturing 96% to 99% of particles larger than 10 microns, which is the precise specification required for optimal spray booth ceiling filtration and laminar airflow.
